SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| NEC Corporation ECO CENTER | ssj_ops@100% = 288,502 ssj_ops@100% per JVM = 72,126 |
||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Jul 14, 2008 |
| Hardware Availability: | Oct-2008 | Software Availability: | Apr-2008 | Publication: | Jul 31, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 289,968 | ||
| Calibration 2 | 290,412 | ||
| Calibration 3 | 290,394 | ||
| ssj_ops@calibrated=290,403 | |||
| 100% | 99.3% | 290,403 | 288,502 |
| 90% | 90.5% | 261,363 | 262,944 |
| 80% | 80.1% | 232,322 | 232,748 |
| 70% | 69.8% | 203,282 | 202,628 |
| 60% | 60.3% | 174,242 | 175,063 |
| 50% | 50.2% | 145,202 | 145,808 |
| 40% | 40.1% | 116,161 | 116,311 |
| 30% | 29.8% | 87,121 | 86,541 |
| 20% | 19.9% | 58,081 | 57,866 |
| 10% | 10.2% | 29,040 | 29,558 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | ECO CENTER |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | NEC Corporation |
| Model: | ECO CENTER |
| Form Factor: | -- |
| CPU Name: | Intel Xeon L5420 |
| CPU Characteristics: | Quad-Core, 2.5 GHz, 2 x 6 MB L2 Cache, 1333 MHz system bus |
| CPU Frequency (MHz): | 2500 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared/2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4 GB |
| Memory Details: | DDR2-667 CL5 5300P; slots 1 and 2 populated |
| Power Supply Quantity and Rating (W): | 1 x 780 |
| Power Supply Details: | NEC ECO-POWER781-AC |
| Disk Drive: | 1 x 160GB 5.4K RPM 2.5inch SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Intel Gigabit NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Microsoft Windows Server 2003 R2 Enterprise x64 Edition Service Pack 2 |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms1760m -Xmx1760m -Xns1350m -XXaggressive -XXlargePages -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=4k,preferred=1024k |
| JVM Affinity: | start /affinity [03, 0C, 30, C0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1760 |
| JVM Maximum Heap (MB): | 1760 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 71,740 |
| 0001.002 | 72,616 |
| 0001.003 | 72,335 |
| 0001.004 | 71,812 |
| ssj_ops@100% | 288,502 |
| ssj_ops@100% per JVM | 72,126 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 72,510 | ||
| Calibration 2 | 72,252 | ||
| Calibration 3 | 72,345 | ||
| ssj_ops@calibrated=72,299 | |||
| 100% | 99.2% | 72,299 | 71,740 |
| 90% | 90.6% | 65,069 | 65,528 |
| 80% | 81.4% | 57,839 | 58,840 |
| 70% | 69.2% | 50,609 | 50,027 |
| 60% | 60.4% | 43,379 | 43,688 |
| 50% | 50.3% | 36,149 | 36,338 |
| 40% | 39.3% | 28,919 | 28,437 |
| 30% | 30.3% | 21,690 | 21,876 |
| 20% | 20.1% | 14,460 | 14,566 |
| 10% | 9.9% | 7,230 | 7,137 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 72,806 | ||
| Calibration 2 | 72,521 | ||
| Calibration 3 | 72,983 | ||
| ssj_ops@calibrated=72,752 | |||
| 100% | 99.8% | 72,752 | 72,616 |
| 90% | 90.3% | 65,477 | 65,676 |
| 80% | 79.9% | 58,202 | 58,105 |
| 70% | 70.9% | 50,927 | 51,561 |
| 60% | 59.8% | 43,651 | 43,539 |
| 50% | 50.7% | 36,376 | 36,885 |
| 40% | 40.1% | 29,101 | 29,166 |
| 30% | 29.4% | 21,826 | 21,375 |
| 20% | 19.8% | 14,550 | 14,425 |
| 10% | 10.2% | 7,275 | 7,421 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 72,525 | ||
| Calibration 2 | 73,043 | ||
| Calibration 3 | 72,497 | ||
| ssj_ops@calibrated=72,770 | |||
| 100% | 99.4% | 72,770 | 72,335 |
| 90% | 90.2% | 65,493 | 65,645 |
| 80% | 79.7% | 58,216 | 58,001 |
| 70% | 69.7% | 50,939 | 50,720 |
| 60% | 60.7% | 43,662 | 44,170 |
| 50% | 50.4% | 36,385 | 36,666 |
| 40% | 40.9% | 29,108 | 29,794 |
| 30% | 29.7% | 21,831 | 21,624 |
| 20% | 19.9% | 14,554 | 14,500 |
| 10% | 10.3% | 7,277 | 7,525 |
| Active Idle | 0 | 0 | |

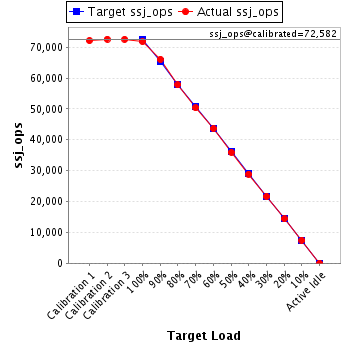

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 72,127 | ||
| Calibration 2 | 72,595 | ||
| Calibration 3 | 72,570 | ||
| ssj_ops@calibrated=72,582 | |||
| 100% | 98.9% | 72,582 | 71,812 |
| 90% | 91.1% | 65,324 | 66,095 |
| 80% | 79.6% | 58,066 | 57,802 |
| 70% | 69.3% | 50,808 | 50,320 |
| 60% | 60.2% | 43,549 | 43,666 |
| 50% | 49.5% | 36,291 | 35,920 |
| 40% | 39.8% | 29,033 | 28,915 |
| 30% | 29.9% | 21,775 | 21,666 |
| 20% | 19.8% | 14,516 | 14,376 |
| 10% | 10.3% | 7,258 | 7,475 |
| Active Idle | 0 | 0 | |
