SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| NEC Corporation ECO CENTER | SPECpower_ssj2008 = 1,010 overall ssj_ops/watt | ||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Jul 14, 2008 |
| Hardware Availability: | Oct-2008 | Software Availability: | Apr-2008 | Publication: | Jul 31, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

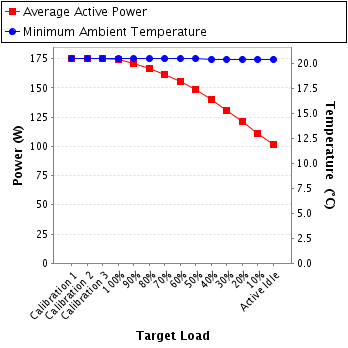

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 175 | 20.5 |
| Calibration 2 | 175 | 20.4 |
| Calibration 3 | 175 | 20.4 |
| 100% | 175 | 20.4 |
| 90% | 171 | 20.4 |
| 80% | 166 | 20.4 |
| 70% | 161 | 20.4 |
| 60% | 156 | 20.4 |
| 50% | 149 | 20.4 |
| 40% | 140 | 20.4 |
| 30% | 131 | 20.4 |
| 20% | 121 | 20.4 |
| 10% | 111 | 20.4 |
| Active Idle | 102 | 20.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H624855 |
| Connectivity: | RS-232C |
| Input Connection: | -- |
| Calibration Institute: | AIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | B082442 |
| Date of Calibration: | Jun-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 198 | -- | 0.917 | -- | 0.965 | 175 | -- |
| Calibration 2 | 200 | -- | 0.909 | -- | 0.964 | 175 | -- |
| Calibration 3 | 200 | -- | 0.909 | -- | 0.964 | 175 | -- |
| 100% | 201 | -- | 0.903 | -- | 0.963 | 175 | -- |
| 90% | 201 | -- | 0.888 | -- | 0.962 | 171 | -- |
| 80% | 201 | -- | 0.865 | -- | 0.960 | 166 | -- |
| 70% | 201 | -- | 0.839 | -- | 0.957 | 161 | -- |
| 60% | 201 | -- | 0.813 | -- | 0.953 | 156 | -- |
| 50% | 201 | -- | 0.780 | -- | 0.949 | 149 | -- |
| 40% | 201 | -- | 0.737 | -- | 0.944 | 140 | -- |
| 30% | 201 | -- | 0.694 | -- | 0.938 | 131 | -- |
| 20% | 200 | -- | 0.650 | -- | 0.933 | 121 | -- |
| 10% | 200 | -- | 0.596 | -- | 0.928 | 111 | -- |
| Active Idle | 199 | -- | 0.552 | -- | 0.923 | 102 | -- |
