SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL160 G5 (2.50 GHz, Intel Xeon processor L5420) | SPECpower_ssj2008 = 734 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | May 27, 2008 |
| Hardware Availability: | Jun-2008 | Software Availability: | Apr-2008 | Publication: | Jun 18, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

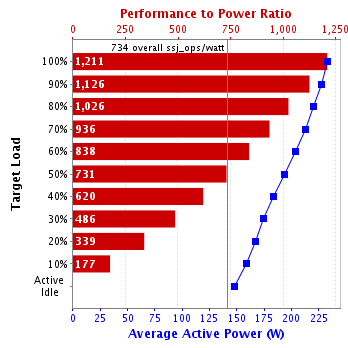

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.4% | 281,914 | 233 | 1,211 |
| 90% | 90.2% | 255,806 | 227 | 1,126 |
| 80% | 79.7% | 226,021 | 220 | 1,026 |
| 70% | 70.2% | 198,976 | 213 | 936 |
| 60% | 60.3% | 171,081 | 204 | 838 |
| 50% | 49.9% | 141,536 | 194 | 731 |
| 40% | 40.2% | 113,925 | 184 | 620 |
| 30% | 30.0% | 84,968 | 175 | 486 |
| 20% | 20.0% | 56,651 | 167 | 339 |
| 10% | 9.9% | 28,049 | 159 | 177 |
| Active Idle | 0 | 148 | 0 | |
| ∑ssj_ops / ∑power = | 734 | |||
| Set Identifier: | sut |
| Set Description: | ProLiant DL160 G5 (2.50 GHz, Intel Xeon processor L5420) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL160 G5 (2.50 GHz, Intel Xeon processor L5420) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon L5420 |
| CPU Characteristics: | 2.50 GHz, 2x6 MB L2 shared, 1333 MHz system bus |
| CPU Frequency (MHz): | 2500 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4 x 4096 MB |
| Memory Details: | PC2-5300F CL5 LP; slots 1, 3, 5 and 7 populated |
| Power Supply Quantity and Rating (W): | 1 x 1200 |
| Power Supply Details: | HP part # 438202-001 |
| Disk Drive: | 1 x 80GB 7.2K SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC105i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Power and Performance |
| Operating System (OS): | Microsoft Windows Server 2003 x64 Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | Used "start /affinity" with "0x3","0xc","0x30" and "0xc0" CPU masks. |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 3600 |
| JVM Maximum Heap (MB): | 3600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | HP |
| Model: | ProLiant DL360 G3 |
| CPU Description: | Intel Xeon |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows XP Professional |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build R27.4.0-90-89592-1.6.0_02-20070928-1715-windows-ia32, compiled mode) |
| CCS Version: | 1.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB53024 |
| Connectivity: | GPIB |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1739 |
| Date of Calibration: | 7-Dec-2007 |
| PTDaemon Host System: | Controller System |
| PTDaemon Host OS: | Microsoft Windows XP Professional |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller System |
| PTDaemon Host OS: | Microsoft Windows XP Professional |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 233 | 26.6 |
| 90% | 227 | 26.6 |
| 80% | 220 | 26.6 |
| 70% | 213 | 26.6 |
| 60% | 204 | 26.6 |
| 50% | 194 | 26.6 |
| 40% | 184 | 26.6 |
| 30% | 175 | 26.6 |
| 20% | 167 | 26.6 |
| 10% | 159 | 26.6 |
| Active Idle | 148 | 26.6 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 26.6 | 132 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 281,076 | ||
| Calibration 2 | 283,517 | ||
| Calibration 3 | 283,502 | ||
| ssj_ops@calibrated=283,509 | |||
| 100% | 99.4% | 283,509 | 281,914 |
| 90% | 90.2% | 255,158 | 255,806 |
| 80% | 79.7% | 226,807 | 226,021 |
| 70% | 70.2% | 198,456 | 198,976 |
| 60% | 60.3% | 170,106 | 171,081 |
| 50% | 49.9% | 141,755 | 141,536 |
| 40% | 40.2% | 113,404 | 113,925 |
| 30% | 30.0% | 85,053 | 84,968 |
| 20% | 20.0% | 56,702 | 56,651 |
| 10% | 9.9% | 28,351 | 28,049 |
| Active Idle | 0 | 0 | |
