Hewlett-Packard Company ProLiant DL360 G5 (3.00 GHz, Intel Xeon processor E5450) ssj_ops@100% = NC
ssj_ops@100% per JVM = NC
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Hardware Availability: Jun-2008
Tested By: Hewlett-Packard Company Test Location: Houston, TX Software Availability: Apr-2008
System Source: Single Supplier Test Date: May 19, 2008 Publication: Unpublished
SPEC has determined that this result is not in compliance with the SPECpower_ssj2008 run and reporting rules. Specifically, the submitter reported that the result would not meet the 3 month availability requirement in the SPECpower_ssj2008 run rules.
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     317,989
Calibration 2     320,161
Calibration 3     320,732
ssj_ops@calibrated=320,446
100% 99.5% 320,446 318,769
90% 90.7% 288,402 290,563
80% 79.6% 256,357 255,055
70% 70.2% 224,312 224,998
60% 60.1% 192,268 192,713
50% 50.4% 160,223 161,451
40% 39.9% 128,179 127,868
30% 29.8% 96,134 95,334
20% 20.2% 64,089 64,714
10% 9.9% 32,045 31,730
Active Idle   0 0
Graph of results
System Under Test
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360 G5 (3.00 GHz, Intel Xeon processor E5450)
CPU Name: Intel Xeon E5450
CPU Characteristics: 3.00 GHz, 2x6 MB L2 shared, 1333 MHz system bus
CPU Frequency (MHz): 3000
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads / Core: 1
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: PC2-5300F CL5 LP; slots 1A,3A,5B,7B populated
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: HP part # 399542-B21
Disk Drive: 1 x 120GB HP, 1.5G, 5.4K, 2.5" SFF SATA HDD
Disk Controller: 1 x Smart Array E200i
# and type of Network Interface Cards (NICs) Installed: 2 x NC373i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Always On
Operating System (OS): Microsoft Windows Server 2003 x64 Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3625m -Xmx3625m -Xns3100m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=4k,preferred=512k
JVM Affinity: Used "start /affinity" with "0x3","0xc","0x30" and "0xc0" CPU masks.
JVM Instances: 4
JVM Initial Heap (MB): 3625
JVM Maximum Heap (MB): 3625
JVM Address Bits: 64
Benchmark Version: SPECpower_ssj2008 1.1
Director Location: Controller
Other Software: None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 80,206
0001.002 79,773
0001.003 79,452
0001.004 79,338
ssj_ops@100% 318,769
ssj_ops@100% per JVM 79,692

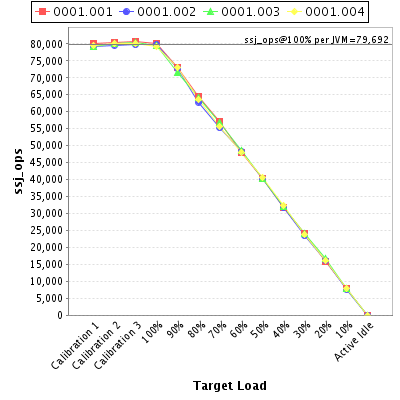

Graph of per-instance results

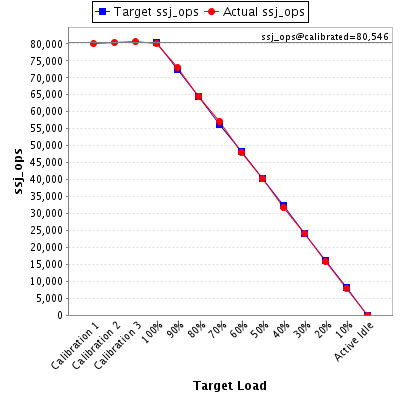

JVM 0001.001 Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,063
Calibration 2     80,428
Calibration 3     80,665
ssj_ops@calibrated=80,546
100% 99.6% 80,546 80,206
90% 90.7% 72,492 73,036
80% 80.1% 64,437 64,494
70% 71.0% 56,383 57,212
60% 59.6% 48,328 48,017
50% 49.9% 40,273 40,224
40% 39.4% 32,219 31,770
30% 29.9% 24,164 24,078
20% 19.6% 16,109 15,795
10% 10.0% 8,055 8,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

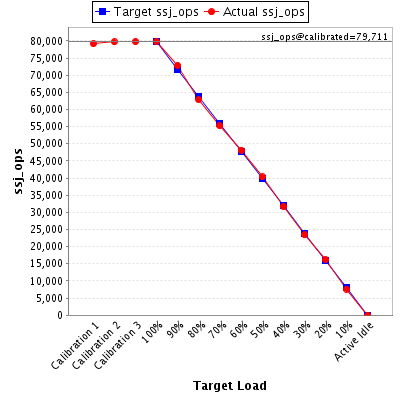

JVM 0001.002 Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,142
Calibration 2     79,673
Calibration 3     79,749
ssj_ops@calibrated=79,711
100% 100.1% 79,711 79,773
90% 91.4% 71,740 72,835
80% 78.9% 63,769 62,861
70% 69.3% 55,798 55,225
60% 60.4% 47,826 48,132
50% 50.6% 39,855 40,321
40% 39.8% 31,884 31,708
30% 29.5% 23,913 23,484
20% 20.3% 15,942 16,191
10% 9.6% 7,971 7,650
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

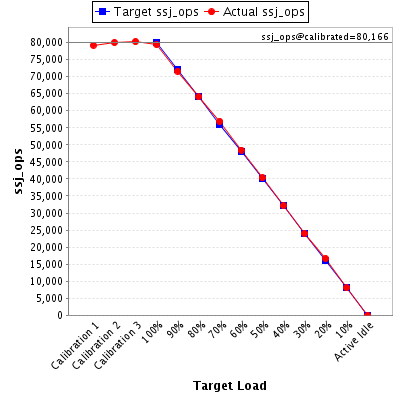

JVM 0001.003 Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,264
Calibration 2     80,035
Calibration 3     80,297
ssj_ops@calibrated=80,166
100% 99.1% 80,166 79,452
90% 89.4% 72,150 71,663
80% 79.9% 64,133 64,078
70% 71.0% 56,117 56,904
60% 60.5% 48,100 48,486
50% 50.3% 40,083 40,301
40% 40.1% 32,067 32,146
30% 30.0% 24,050 24,015
20% 20.8% 16,033 16,656
10% 10.0% 8,017 8,031
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

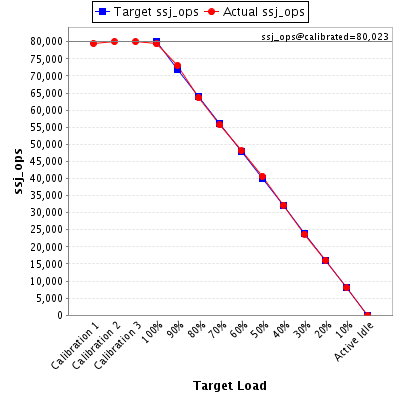

JVM 0001.004 Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,520
Calibration 2     80,025
Calibration 3     80,021
ssj_ops@calibrated=80,023
100% 99.1% 80,023 79,338
90% 91.3% 72,020 73,029
80% 79.5% 64,018 63,622
70% 69.6% 56,016 55,658
60% 60.1% 48,014 48,078
50% 50.7% 40,011 40,606
40% 40.3% 32,009 32,245
30% 29.7% 24,007 23,758
20% 20.1% 16,005 16,072
10% 10.0% 8,002 8,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
