Fujitsu Siemens Computers PRIMERGY TX150 S6 (Intel Xeon X3360) ssj_ops@100% = 186,987
ssj_ops@100% per JVM = 93,493
Test Sponsor: Fujitsu Siemens Computers SPEC License #: 22 Hardware Availability: Mar-2008
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, NRW, Germany Software Availability: Apr-2008
System Source: Single Supplier Test Date: May 15, 2008 Publication: Unpublished
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,194
Calibration 2     186,874
Calibration 3     187,205
ssj_ops@calibrated=187,040
100% 100.0% 187,040 186,987
90% 90.3% 168,336 168,917
80% 79.9% 149,632 149,486
70% 70.0% 130,928 130,877
60% 60.0% 112,224 112,305
50% 50.0% 93,520 93,474
40% 39.7% 74,816 74,274
30% 30.2% 56,112 56,398
20% 20.4% 37,408 38,095
10% 9.8% 18,704 18,312
Active Idle   0 0
Graph of results
System Under Test
Hardware
Hardware Vendor: Fujitsu Siemens Computers
Model: PRIMERGY TX150 S6 (Intel Xeon X3360)
CPU Name: Intel Xeon X3360
CPU Characteristics: 2.83GHz, 2x6MB L2 Cache, 1333MHz system bus
CPU Frequency (MHz): 2833
CPU(s) Enabled: 4 cores, 1 chips, 4 cores/chip
Hardware Threads / Core: 1
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 4
# and size of DIMM: 2 x 2048 MB
Memory Details: PC2-6400E-666 2Rx8
Power Supply Quantity and Rating (W): 1 x 350
Power Supply Details: HIPRO HP-U3528F1
Disk Drive: 1 x Seagate (3.5", SATA, 7.2krpm, 160GB)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom NetXtreme Gigabit Ethernet (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Server Balanced Processor Power and Performance)
Operating System (OS): Microsoft Windows Server 2003 R2 Enterprise X64 Edition
OS Version: 5.2.3790 Service Pack 1 Build 3790
Filesystem: NTFS
JVM Vendor: Bea Systems, Inc
JVM Version: BEA JRockit(R) P27.5.0 (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64)
JVM Command-line Options: -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=512k -XXthroughputcompaction
JVM Affinity: start /AFFINITY [0x3,0xC]
JVM Instances: 2
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Benchmark Version: SPECpower_ssj2008 1.1
Director Location: Controller
Other Software: None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 93,927
0001.002 93,059
ssj_ops@100% 186,987
ssj_ops@100% per JVM 93,493

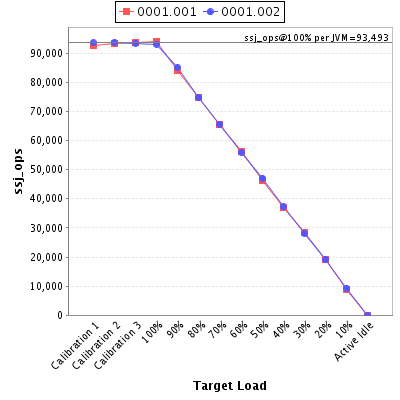

Graph of per-instance results
JVM 0001.001 Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,702
Calibration 2     93,257
Calibration 3     93,805
ssj_ops@calibrated=93,531
100% 100.4% 93,531 93,927
90% 89.7% 84,178 83,868
80% 79.9% 74,825 74,709
70% 69.9% 65,472 65,342
60% 60.2% 56,119 56,292
50% 49.6% 46,765 46,400
40% 39.7% 37,412 37,098
30% 30.2% 28,059 28,262
20% 20.3% 18,706 18,976
10% 9.6% 9,353 8,986
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 0001.002 Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,492
Calibration 2     93,617
Calibration 3     93,401
ssj_ops@calibrated=93,509
100% 99.5% 93,509 93,059
90% 91.0% 84,158 85,049
80% 80.0% 74,807 74,777
70% 70.1% 65,456 65,535
60% 59.9% 56,105 56,013
50% 50.3% 46,754 47,074
40% 39.8% 37,403 37,176
30% 30.1% 28,053 28,136
20% 20.4% 18,702 19,119
10% 10.0% 9,351 9,327
Active Idle   0 0

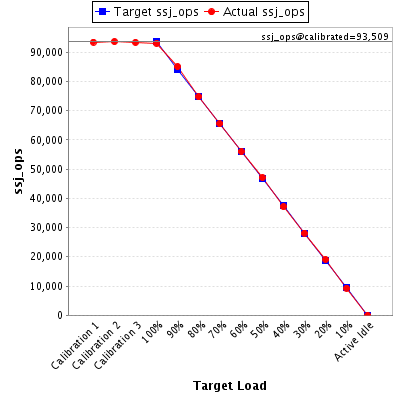

Graph of results
See the JVM Instance Performance Report for additional details.
