SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3350 | SPECpower_ssj2008 = 926 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | RTP, NC, USA | Test Date: | May 6, 2008 |
| Hardware Availability: | Apr-2008 | Software Availability: | Jun-2008 | Publication: | May 21, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

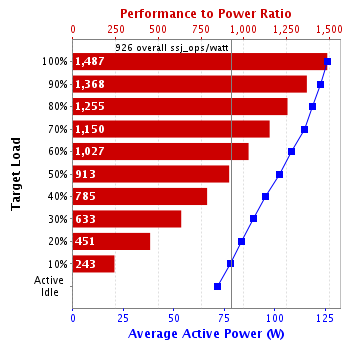

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 100.0% | 187,275 | 126 | 1,487 |
| 90% | 89.5% | 167,758 | 123 | 1,368 |
| 80% | 79.5% | 148,994 | 119 | 1,255 |
| 70% | 70.2% | 131,601 | 114 | 1,150 |
| 60% | 59.4% | 111,304 | 108 | 1,027 |
| 50% | 49.8% | 93,251 | 102 | 913 |
| 40% | 40.0% | 74,968 | 95.6 | 785 |
| 30% | 30.2% | 56,490 | 89.2 | 633 |
| 20% | 20.1% | 37,638 | 83.4 | 451 |
| 10% | 10.1% | 18,895 | 77.9 | 243 |
| Active Idle | 0 | 71.7 | 0 | |
| ∑ssj_ops / ∑power = | 926 | |||
| Set Identifier: | sut |
| Set Description: | IBM System x3350 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3350 |
| Form Factor: | -- |
| CPU Name: | Intel Xeon X3360 |
| CPU Characteristics: | Quad-Core, 2.83GHz, 12MB L2 Cache |
| CPU Frequency (MHz): | 2833 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 4 |
| # and size of DIMM: | 2 x 2048 MB |
| Memory Details: | PC2-5300P ECC; slots 1 and 3 populated |
| Power Supply Quantity and Rating (W): | 1 x 450 |
| Power Supply Details: | IBM P/N 39Y7195 |
| Disk Drive: | 1 x 160GB (SATA, 7.2k RPM, 3.5") |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Broadcom onboard NIC |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Windows Server 2003 R2 Enterprise x64 Edition SP1 |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 2.4, JRE 1.6.0 Windows 64bitpwa6460sr1-20080305_01 |
| JVM Command-line Options: | -Xcompressedrefs -Xlp -Xgcpolicy:gencon -Xmn1000m -Xms1475m -Xmx1475m -XlockReservation -Xnoloa |
| JVM Affinity: | start /affinity [03,0C] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1475 |
| JVM Maximum Heap (MB): | 1475 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x346 |
| CPU Description: | Intel Xeon 3.0GHz |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2003 Enterprise Edition SP1 |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2003 x86-32 jvmwi3260-20071121_15015 (JIT enabled) |
| CCS Version: | 1.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB37404 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1646 |
| Date of Calibration: | Nov-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Digiwatchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 126 | 23.8 |
| 90% | 123 | 23.8 |
| 80% | 119 | 23.7 |
| 70% | 114 | 23.7 |
| 60% | 108 | 23.7 |
| 50% | 102 | 23.7 |
| 40% | 95.6 | 23.7 |
| 30% | 89.2 | 23.7 |
| 20% | 83.4 | 23.7 |
| 10% | 77.9 | 23.6 |
| Active Idle | 71.7 | 23.6 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 23.6 | 132 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 184,658 | ||
| Calibration 2 | 187,287 | ||
| Calibration 3 | 187,422 | ||
| ssj_ops@calibrated=187,355 | |||
| 100% | 100.0% | 187,355 | 187,275 |
| 90% | 89.5% | 168,619 | 167,758 |
| 80% | 79.5% | 149,884 | 148,994 |
| 70% | 70.2% | 131,148 | 131,601 |
| 60% | 59.4% | 112,413 | 111,304 |
| 50% | 49.8% | 93,677 | 93,251 |
| 40% | 40.0% | 74,942 | 74,968 |
| 30% | 30.2% | 56,206 | 56,490 |
| 20% | 20.1% | 37,471 | 37,638 |
| 10% | 10.1% | 18,735 | 18,895 |
| Active Idle | 0 | 0 | |
