SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3250 M2 | SPECpower_ssj2008 = 913 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Test Date: | Apr 25, 2008 |
| Hardware Availability: | Apr-2008 | Software Availability: | Jun-2008 | Publication: | May 21, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

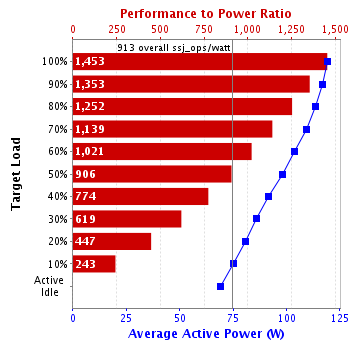

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 97.6% | 173,021 | 119 | 1,453 |
| 90% | 89.0% | 157,786 | 117 | 1,353 |
| 80% | 80.0% | 141,893 | 113 | 1,252 |
| 70% | 70.1% | 124,306 | 109 | 1,139 |
| 60% | 59.7% | 105,881 | 104 | 1,021 |
| 50% | 50.0% | 88,734 | 97.9 | 906 |
| 40% | 40.0% | 70,964 | 91.7 | 774 |
| 30% | 30.0% | 53,184 | 85.9 | 619 |
| 20% | 20.3% | 36,057 | 80.7 | 447 |
| 10% | 10.3% | 18,274 | 75.3 | 243 |
| Active Idle | 0 | 68.9 | 0 | |
| ∑ssj_ops / ∑power = | 913 | |||
| Set Identifier: | sut |
| Set Description: | IBM System x3250 M2 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3250 M2 |
| Form Factor: | -- |
| CPU Name: | Intel X3350 |
| CPU Characteristics: | Quad-Core, 2.66GHz, 12MB L2 Cache |
| CPU Frequency (MHz): | 2666 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 4 |
| # and size of DIMM: | 2 x 2048 MB |
| Memory Details: | PC2-5300P ECC; slots 1 and 3 populated |
| Power Supply Quantity and Rating (W): | 1 x 350 |
| Power Supply Details: | IBM P/N: 39Y7288 |
| Disk Drive: | 1 x 160GB (SATA, 7.2k RPM, 3.5") |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Broadcom onboard NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | USB |
| Mouse: | USB |
| Monitor: | Yes |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Windows Server 2003 R2 Enterprise x64 Edition SP1 |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 2.4, JRE 1.6.0 Windows 64bitpwa6460sr1-20080305_01) |
| JVM Command-line Options: | -Xcompressedrefs -Xlp -Xgcpolicy:gencon -Xmn1000m -Xms1475m -Xmx1475m -XlockReservation -Xnoloa |
| JVM Affinity: | start /affinity [03,0C] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1475 |
| JVM Maximum Heap (MB): | 1475 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | ThinkCentre |
| CPU Description: | Intel Pentum4 |
| Memory amount (GB): | 0.5 |
| Software | |
|---|---|
| Operating System (OS): | Windows XP Professional Edition |
| JVM Vendor: | IBM Corporation |
| JVM Version: | J9VM build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows XP x86-32 |
| CCS Version: | 1.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 08-04-BAC-068-02 |
| Date of Calibration: | Apr-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Digiwatchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 119 | 22.6 |
| 90% | 117 | 22.6 |
| 80% | 113 | 22.6 |
| 70% | 109 | 22.6 |
| 60% | 104 | 22.6 |
| 50% | 97.9 | 22.6 |
| 40% | 91.7 | 22.6 |
| 30% | 85.9 | 22.6 |
| 20% | 80.7 | 22.6 |
| 10% | 75.3 | 22.6 |
| Active Idle | 68.9 | 22.6 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 22.6 | 63 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 175,262 | ||
| Calibration 2 | 178,644 | ||
| Calibration 3 | 176,084 | ||
| ssj_ops@calibrated=177,364 | |||
| 100% | 97.6% | 177,364 | 173,021 |
| 90% | 89.0% | 159,628 | 157,786 |
| 80% | 80.0% | 141,892 | 141,893 |
| 70% | 70.1% | 124,155 | 124,306 |
| 60% | 59.7% | 106,419 | 105,881 |
| 50% | 50.0% | 88,682 | 88,734 |
| 40% | 40.0% | 70,946 | 70,964 |
| 30% | 30.0% | 53,209 | 53,184 |
| 20% | 20.3% | 35,473 | 36,057 |
| 10% | 10.3% | 17,736 | 18,274 |
| Active Idle | 0 | 0 | |
