SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3200 M2 | SPECpower_ssj2008 = 1,054 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | RTP, NC, USA | Test Date: | May 2, 2008 |
| Hardware Availability: | Apr-2008 | Software Availability: | Jun-2008 | Publication: | May 21, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

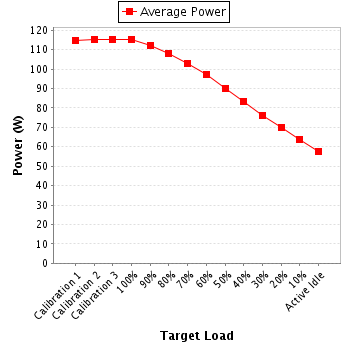

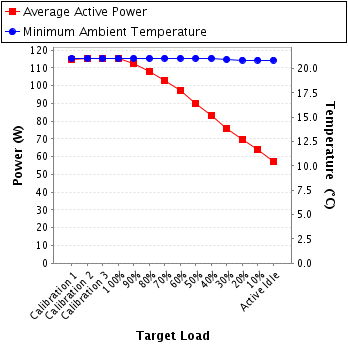

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 115 | 21.1 |
| Calibration 2 | 115 | 21.1 |
| Calibration 3 | 115 | 21.1 |
| 100% | 115 | 21.1 |
| 90% | 112 | 21.1 |
| 80% | 108 | 21.1 |
| 70% | 103 | 21.1 |
| 60% | 97.1 | 21.1 |
| 50% | 90.1 | 21.1 |
| 40% | 83.2 | 21.1 |
| 30% | 75.9 | 20.9 |
| 20% | 69.9 | 20.9 |
| 10% | 63.9 | 20.9 |
| Active Idle | 57.5 | 20.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB37404 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1646 |
| Date of Calibration: | Nov-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Digiwatchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 204 | -- | 0.598 | -- | 0.940 | 115 | -- |
| Calibration 2 | 204 | -- | 0.600 | -- | 0.940 | 115 | -- |
| Calibration 3 | 204 | -- | 0.601 | -- | 0.940 | 115 | -- |
| 100% | 204 | -- | 0.600 | -- | 0.940 | 115 | -- |
| 90% | 204 | -- | 0.586 | -- | 0.937 | 112 | -- |
| 80% | 204 | -- | 0.568 | -- | 0.931 | 108 | -- |
| 70% | 204 | -- | 0.547 | -- | 0.923 | 103 | -- |
| 60% | 204 | -- | 0.522 | -- | 0.913 | 97.1 | -- |
| 50% | 204 | -- | 0.491 | -- | 0.900 | 90.1 | -- |
| 40% | 204 | -- | 0.460 | -- | 0.887 | 83.2 | -- |
| 30% | 204 | -- | 0.427 | -- | 0.872 | 75.9 | -- |
| 20% | 205 | -- | 0.399 | -- | 0.854 | 69.9 | -- |
| 10% | 205 | -- | 0.372 | -- | 0.836 | 63.9 | -- |
| Active Idle | 205 | -- | 0.342 | -- | 0.819 | 57.5 | -- |
