Dell Inc. PowerEdge R300 ssj_ops@100% = 155,342
ssj_ops@100% per JVM = 77,671
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Feb 26, 2008
Hardware Availability: Mar-2008 Software Availability: Feb-2008 Publication: Mar 26, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,130
Calibration 2     156,081
Calibration 3     156,107
ssj_ops@calibrated=156,094
100% 99.5% 156,094 155,342
90% 90.6% 140,485 141,384
80% 79.1% 124,875 123,517
70% 70.5% 109,266 110,014
60% 60.8% 93,656 94,928
50% 50.5% 78,047 78,763
40% 39.6% 62,438 61,772
30% 30.0% 46,828 46,824
20% 20.2% 31,219 31,456
10% 9.8% 15,609 15,232
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge R300
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R300
Form Factor: --
CPU Name: Intel Xeon L5410
CPU Characteristics: Quad Core, 2.33GHz, 12MB L2 Cache
CPU Frequency (MHz): 2330
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 4 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32KB I + 32KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared/2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2x4096MB
Memory Details: DDR2-667 CL5; slots 1 and 2 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: Dell P/N DU636
Disk Drive: 1 x 160GB 7200 RPM 3.5" SATA
Disk Controller: Onboard SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard Gigabit
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Server Balanced Power and Performance)
Operating System (OS): Microsoft Windows Server 2003 R2 Enterprise x64 Edition
OS Version: Service Pack 2
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) 6 R27.5.0-110 (build R27.5.0-110-94909-1.6.0_03-20080204-1558-windows-x86_64)
JVM Command-line Options: -Xms3600m -Xns3100m -Xmx3600m -XXaggressive -XXthroughputcompaction -XXcallprofiling -Xgc:genpar -XXgcthreads=2 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [03,0C]
JVM Instances: 4
JVM Initial Heap (MB): 3600
JVM Maximum Heap (MB): 3600
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
Voltage range set to "Auto", Current range set to 2 Amps on Yokogawa WT210.
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 78,287
0001.002 77,055
ssj_ops@100% 155,342
ssj_ops@100% per JVM 77,671

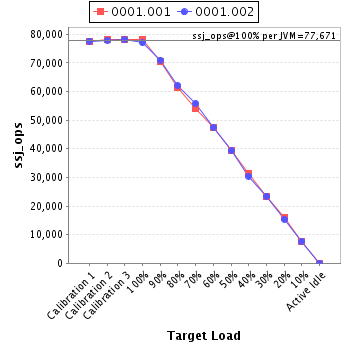

Graph of per-instance results
JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,485
Calibration 2     78,200
Calibration 3     78,048
ssj_ops@calibrated=78,124
100% 100.2% 78,124 78,287
90% 90.1% 70,312 70,380
80% 78.7% 62,499 61,448
70% 69.4% 54,687 54,240
60% 60.7% 46,874 47,456
50% 50.5% 39,062 39,459
40% 40.2% 31,250 31,367
30% 29.9% 23,437 23,377
20% 20.6% 15,625 16,091
10% 9.7% 7,812 7,578
Active Idle   0 0

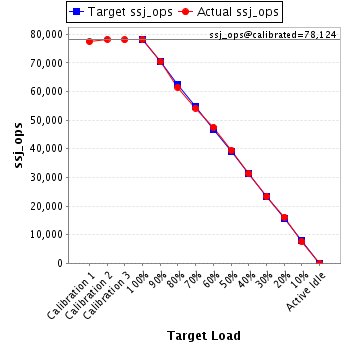

Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,645
Calibration 2     77,882
Calibration 3     78,058
ssj_ops@calibrated=77,970
100% 98.8% 77,970 77,055
90% 91.1% 70,173 71,005
80% 79.6% 62,376 62,069
70% 71.5% 54,579 55,774
60% 60.9% 46,782 47,473
50% 50.4% 38,985 39,304
40% 39.0% 31,188 30,405
30% 30.1% 23,391 23,447
20% 19.7% 15,594 15,365
10% 9.8% 7,797 7,653
Active Idle   0 0

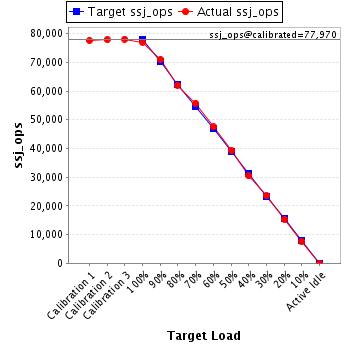

Graph of results
See the JVM Instance Performance Report for additional details.
