SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge 2950 III (Intel Xeon E5440) | ssj_ops@100% = 298,188 ssj_ops@100% per JVM = 74,547 |
||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Feb 12, 2008 |
| Hardware Availability: | Mar-2008 | Software Availability: | Oct-2007 | Publication: | Feb 27, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 297,298 | ||
| Calibration 2 | 300,982 | ||
| Calibration 3 | 300,321 | ||
| ssj_ops@calibrated=300,652 | |||
| 100% | 99.2% | 300,652 | 298,188 |
| 90% | 89.7% | 270,587 | 269,554 |
| 80% | 80.4% | 240,521 | 241,701 |
| 70% | 70.3% | 210,456 | 211,354 |
| 60% | 60.0% | 180,391 | 180,508 |
| 50% | 49.5% | 150,326 | 148,959 |
| 40% | 40.4% | 120,261 | 121,477 |
| 30% | 30.2% | 90,196 | 90,702 |
| 20% | 20.1% | 60,130 | 60,493 |
| 10% | 10.0% | 30,065 | 29,990 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | PowerEdge 2950 III (Intel Xeon E5440) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge 2950 III (Intel Xeon E5440) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon E5440 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU Frequency (MHz): | 2833 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32KB I + 32KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared/2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4x4096MB |
| Memory Details: | DDR2-667 CL5 FBDIMM; slots 1, 3, 5, and 7 populated |
| Power Supply Quantity and Rating (W): | 1 x 750 |
| Power Supply Details: | Dell P/N DX385 |
| Disk Drive: | 1 x 73GB 10K RPM 2.5" SAS |
| Disk Controller: | SAS 6iR |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Onboard Gigabit |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Server Balanced Power and Performance) |
| Operating System (OS): | Microsoft Windows Server 2003 R2 Enterprise x64 Edition |
| OS Version: | Service Pack 2 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) 6 P27.4.0-10 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64) |
| JVM Command-line Options: | -Xms3500m -Xns2900m -Xmx3500m -XXaggressive -XXthroughputcompaction -XXlazyunlocking -XXcallprofiling -Xgc:genpar -XXgcthreads=2 -XXtlasize:min=4k,preferred=512k |
| JVM Affinity: | start /affinity [03,0c,30,c0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 3500 |
| JVM Maximum Heap (MB): | 3500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |

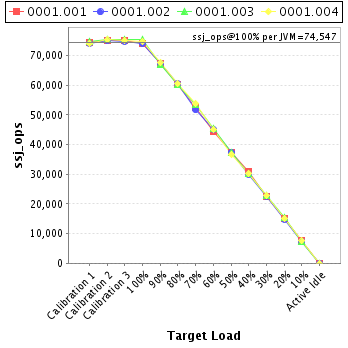

| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 74,156 |
| 0001.002 | 74,063 |
| 0001.003 | 75,301 |
| 0001.004 | 74,668 |
| ssj_ops@100% | 298,188 |
| ssj_ops@100% per JVM | 74,547 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 74,285 | ||
| Calibration 2 | 75,009 | ||
| Calibration 3 | 74,964 | ||
| ssj_ops@calibrated=74,986 | |||
| 100% | 98.9% | 74,986 | 74,156 |
| 90% | 89.6% | 67,488 | 67,212 |
| 80% | 80.2% | 59,989 | 60,160 |
| 70% | 70.0% | 52,490 | 52,460 |
| 60% | 59.4% | 44,992 | 44,566 |
| 50% | 49.9% | 37,493 | 37,402 |
| 40% | 41.2% | 29,995 | 30,927 |
| 30% | 29.9% | 22,496 | 22,387 |
| 20% | 20.1% | 14,997 | 15,091 |
| 10% | 10.1% | 7,499 | 7,545 |
| Active Idle | 0 | 0 | |

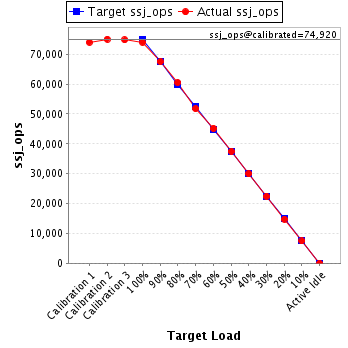

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 74,067 | ||
| Calibration 2 | 75,049 | ||
| Calibration 3 | 74,791 | ||
| ssj_ops@calibrated=74,920 | |||
| 100% | 98.9% | 74,920 | 74,063 |
| 90% | 90.1% | 67,428 | 67,512 |
| 80% | 80.8% | 59,936 | 60,514 |
| 70% | 69.1% | 52,444 | 51,745 |
| 60% | 60.3% | 44,952 | 45,184 |
| 50% | 50.0% | 37,460 | 37,451 |
| 40% | 39.9% | 29,968 | 29,918 |
| 30% | 30.0% | 22,476 | 22,495 |
| 20% | 19.7% | 14,984 | 14,787 |
| 10% | 10.0% | 7,492 | 7,462 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 74,698 | ||
| Calibration 2 | 75,571 | ||
| Calibration 3 | 75,358 | ||
| ssj_ops@calibrated=75,465 | |||
| 100% | 99.8% | 75,465 | 75,301 |
| 90% | 89.0% | 67,918 | 67,193 |
| 80% | 80.1% | 60,372 | 60,441 |
| 70% | 70.8% | 52,825 | 53,415 |
| 60% | 60.4% | 45,279 | 45,563 |
| 50% | 49.6% | 37,732 | 37,402 |
| 40% | 40.1% | 30,186 | 30,235 |
| 30% | 30.5% | 22,639 | 23,001 |
| 20% | 20.5% | 15,093 | 15,437 |
| 10% | 9.8% | 7,546 | 7,412 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 74,248 | ||
| Calibration 2 | 75,353 | ||
| Calibration 3 | 75,209 | ||
| ssj_ops@calibrated=75,281 | |||
| 100% | 99.2% | 75,281 | 74,668 |
| 90% | 89.8% | 67,753 | 67,638 |
| 80% | 80.5% | 60,225 | 60,586 |
| 70% | 71.4% | 52,696 | 53,734 |
| 60% | 60.0% | 45,168 | 45,196 |
| 50% | 48.8% | 37,640 | 36,704 |
| 40% | 40.4% | 30,112 | 30,396 |
| 30% | 30.3% | 22,584 | 22,819 |
| 20% | 20.2% | 15,056 | 15,179 |
| 10% | 10.1% | 7,528 | 7,570 |
| Active Idle | 0 | 0 | |
