SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Fujitsu Siemens Computers PRIMERGY RX300 S4 (INTEL Xeon E5440) | ssj_ops@100% = 303,846 ssj_ops@100% per JVM = 75,961 |
||||
| Test Sponsor: | Fujitsu Siemens Computers | SPEC License #: | 22 | Test Method: | Single Node |
| Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, Germany | Test Date: | Jan 15, 2008 |
| Hardware Availability: | Dec-2007 | Software Availability: | Oct-2007 | Publication: | Jan 30, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 301,450 | ||
| Calibration 2 | 304,995 | ||
| Calibration 3 | 304,313 | ||
| ssj_ops@calibrated=304,654 | |||
| 100% | 99.7% | 304,654 | 303,846 |
| 90% | 89.5% | 274,188 | 272,811 |
| 80% | 79.7% | 243,723 | 242,870 |
| 70% | 70.0% | 213,258 | 213,115 |
| 60% | 59.8% | 182,792 | 182,251 |
| 50% | 50.2% | 152,327 | 152,917 |
| 40% | 40.3% | 121,861 | 122,829 |
| 30% | 30.0% | 91,396 | 91,425 |
| 20% | 20.1% | 60,931 | 61,124 |
| 10% | 10.1% | 30,465 | 30,902 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | PRIMERGY RX300 S4 (INTEL Xeon E5440) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu Siemens Computers |
| Model: | PRIMERGY RX300 S4 (INTEL Xeon E5440) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon E5440 |
| CPU Characteristics: | 2.83 GHz, 2x6MB L2C, 1333 MHz system bus |
| CPU Frequency (MHz): | 2830 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4x4096MB |
| Memory Details: | PC2-5300F 2Rx4 (CAS 5-5-5) |
| Power Supply Quantity and Rating (W): | 1 x 700 |
| Power Supply Details: | Fujitsu Siemens Computers DPS-700KB A |
| Disk Drive: | 1 x Western Digital WD5000AAKS 500GB 7.2 krpm 3.5" SATA |
| Disk Controller: | LSI Logic integrated SAS 3000 series, 8-port with 1068E |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Broadcom BCM5708C NetXtreme II GigE (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | None |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Server Balanced Power and Performance) |
| Operating System (OS): | Microsoft(R) Windows(R) Server 2003 R2 Enterprise x64 Edition |
| OS Version: | Version 5.2.3790 Service Pack 1 Build 3790 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64) |
| JVM Command-line Options: | -Xms3600m -Xns3200m -Xmx3600m -Xlargepages -XXaggressive -XXthroughputcompaction -XXlazyunlocking -XXcallprofiling -Xgc:genpar -XXgcthreads=2 -XXtlasize:min=4k,preferred=512k |
| JVM Affinity: | start /affinity [03,0c,30,c0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 3600 |
| JVM Maximum Heap (MB): | 3600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 76,103 |
| 0001.002 | 76,042 |
| 0001.003 | 76,227 |
| 0001.004 | 75,474 |
| ssj_ops@100% | 303,846 |
| ssj_ops@100% per JVM | 75,961 |

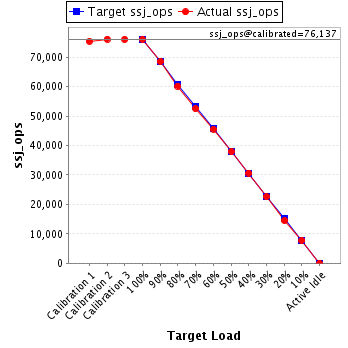

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 75,476 | ||
| Calibration 2 | 76,146 | ||
| Calibration 3 | 76,128 | ||
| ssj_ops@calibrated=76,137 | |||
| 100% | 100.0% | 76,137 | 76,103 |
| 90% | 90.1% | 68,523 | 68,571 |
| 80% | 79.1% | 60,909 | 60,212 |
| 70% | 68.9% | 53,296 | 52,451 |
| 60% | 59.9% | 45,682 | 45,608 |
| 50% | 49.8% | 38,068 | 37,885 |
| 40% | 40.3% | 30,455 | 30,662 |
| 30% | 29.6% | 22,841 | 22,539 |
| 20% | 19.2% | 15,227 | 14,582 |
| 10% | 10.2% | 7,614 | 7,758 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 75,586 | ||
| Calibration 2 | 76,392 | ||
| Calibration 3 | 76,526 | ||
| ssj_ops@calibrated=76,459 | |||
| 100% | 99.5% | 76,459 | 76,042 |
| 90% | 89.6% | 68,813 | 68,478 |
| 80% | 80.0% | 61,168 | 61,192 |
| 70% | 71.0% | 53,522 | 54,260 |
| 60% | 59.7% | 45,876 | 45,657 |
| 50% | 49.6% | 38,230 | 37,946 |
| 40% | 40.2% | 30,584 | 30,752 |
| 30% | 31.0% | 22,938 | 23,702 |
| 20% | 20.5% | 15,292 | 15,698 |
| 10% | 10.1% | 7,646 | 7,708 |
| Active Idle | 0 | 0 | |

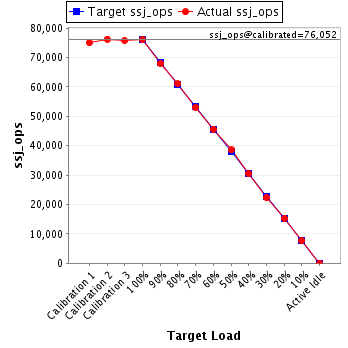

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 75,016 | ||
| Calibration 2 | 76,277 | ||
| Calibration 3 | 75,828 | ||
| ssj_ops@calibrated=76,052 | |||
| 100% | 100.2% | 76,052 | 76,227 |
| 90% | 89.4% | 68,447 | 68,017 |
| 80% | 80.3% | 60,842 | 61,055 |
| 70% | 69.9% | 53,236 | 53,142 |
| 60% | 60.1% | 45,631 | 45,685 |
| 50% | 50.7% | 38,026 | 38,555 |
| 40% | 40.0% | 30,421 | 30,459 |
| 30% | 29.3% | 22,816 | 22,299 |
| 20% | 20.1% | 15,210 | 15,324 |
| 10% | 10.1% | 7,605 | 7,712 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 75,373 | ||
| Calibration 2 | 76,180 | ||
| Calibration 3 | 75,831 | ||
| ssj_ops@calibrated=76,006 | |||
| 100% | 99.3% | 76,006 | 75,474 |
| 90% | 89.1% | 68,405 | 67,746 |
| 80% | 79.5% | 60,804 | 60,411 |
| 70% | 70.1% | 53,204 | 53,262 |
| 60% | 59.6% | 45,603 | 45,301 |
| 50% | 50.7% | 38,003 | 38,531 |
| 40% | 40.7% | 30,402 | 30,956 |
| 30% | 30.1% | 22,802 | 22,885 |
| 20% | 20.4% | 15,201 | 15,520 |
| 10% | 10.2% | 7,601 | 7,725 |
| Active Idle | 0 | 0 | |
