SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Fujitsu Siemens Computers PRIMERGY RX300 S4 (INTEL Xeon E5440) | SPECpower_ssj2008 = 690 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu Siemens Computers | SPEC License #: | 22 | Test Method: | Single Node |
| Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, Germany | Test Date: | Jan 15, 2008 |
| Hardware Availability: | Dec-2007 | Software Availability: | Oct-2007 | Publication: | Jan 30, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

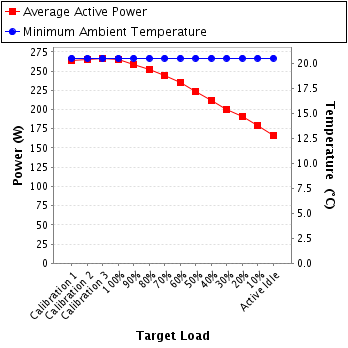

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 263 | 20.5 |
| Calibration 2 | 265 | 20.5 |
| Calibration 3 | 267 | 20.5 |
| 100% | 265 | 20.5 |
| 90% | 259 | 20.5 |
| 80% | 252 | 20.5 |
| 70% | 245 | 20.5 |
| 60% | 235 | 20.5 |
| 50% | 224 | 20.5 |
| 40% | 212 | 20.5 |
| 30% | 200 | 20.5 |
| 20% | 191 | 20.5 |
| 10% | 179 | 20.5 |
| Active Idle | 166 | 20.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Christ-Elektronik GmbH |
| Model: | CLM3000 |
| Serial Number: | 200707-0044 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | DKD (Deutscher Kalibrierdienst) |
| Calibration Label: | 00715-07 DKD-K-23801 07-02 |
| Date of Calibration: | Feb-13-07 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

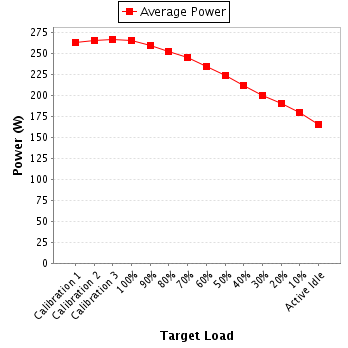

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 232 | -- | 1.23 | -- | 0.923 | 263 | -- |
| Calibration 2 | 228 | -- | 1.26 | -- | 0.926 | 265 | -- |
| Calibration 3 | 228 | -- | 1.26 | -- | 0.926 | 267 | -- |
| 100% | 228 | -- | 1.25 | -- | 0.926 | 265 | -- |
| 90% | 229 | -- | 1.23 | -- | 0.924 | 259 | -- |
| 80% | 228 | -- | 1.20 | -- | 0.922 | 252 | -- |
| 70% | 227 | -- | 1.17 | -- | 0.921 | 245 | -- |
| 60% | 227 | -- | 1.12 | -- | 0.918 | 235 | -- |
| 50% | 229 | -- | 1.07 | -- | 0.913 | 224 | -- |
| 40% | 230 | -- | 1.01 | -- | 0.909 | 212 | -- |
| 30% | 229 | -- | 0.965 | -- | 0.905 | 200 | -- |
| 20% | 229 | -- | 0.923 | -- | 0.901 | 191 | -- |
| 10% | 230 | -- | 0.872 | -- | 0.896 | 179 | -- |
| Active Idle | 230 | -- | 0.810 | -- | 0.890 | 166 | -- |
