SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Hewlett-Packard Company Proliant DL180 G5 (3.00 GHz, Intel Xeon processor E5450) | SPECpower_ssj2008 = 778 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Jan 15, 2008 |
| Hardware Availability: | Feb-2008 | Software Availability: | Dec-2007 | Publication: | Jan 30, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

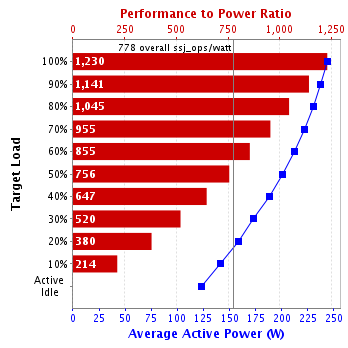

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.3% | 299,610 | 244 | 1,230 |
| 90% | 89.8% | 271,070 | 238 | 1,141 |
| 80% | 79.8% | 240,820 | 230 | 1,045 |
| 70% | 70.3% | 212,024 | 222 | 955 |
| 60% | 60.0% | 181,153 | 212 | 855 |
| 50% | 50.2% | 151,573 | 201 | 756 |
| 40% | 40.3% | 121,535 | 188 | 647 |
| 30% | 29.9% | 90,177 | 173 | 520 |
| 20% | 20.0% | 60,236 | 158 | 380 |
| 10% | 10.1% | 30,370 | 142 | 214 |
| Active Idle | 0 | 123 | 0 | |
| ∑ssj_ops / ∑power = | 778 | |||
| Set Identifier: | sut |
| Set Description: | Proliant DL180 G5 (3.00 GHz, Intel Xeon processor E5450) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | Proliant DL180 G5 (3.00 GHz, Intel Xeon processor E5450) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon E5450 |
| CPU Characteristics: | 3.00 GHz, 2x6 MB L2 shared, 1333 MHz system bus |
| CPU Frequency (MHz): | 3000 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 2x4096 MB, 4x2048 MB |
| Memory Details: | PC2-5300P CL5; slots 1-2 4096 MB; slots 3-6 2048 MB |
| Power Supply Quantity and Rating (W): | 1 x 750 |
| Power Supply Details: | HP part # HSTNS-PL12 |
| Disk Drive: | 1 x 60GB HP, 1.5G, 5.4K, 2.5" SFF SATA HDD |
| Disk Controller: | Integrated ICH-9 SATA |
| # and type of Network Interface Cards (NICs) Installed: | 1xNC105i |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | None |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | None |
| Operating System (OS): | Microsoft Windows Server 2003 x64 Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | Used "start /affinity" with "0x3","0xc","0x30" and "0xc0" CPU masks. |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 3600 |
| JVM Maximum Heap (MB): | 3600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | HP |
| Model: | ProLiant DL360 G3 |
| CPU Description: | Intel Xeon |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows XP Professional |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build R27.4.0-90-89592-1.6.0_02-20070928-1715-windows-ia32, compiled mode) |
| CCS Version: | 1.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT 210 |
| Serial Number: | 91GB45372 |
| Connectivity: | GPIB |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1675 |
| Date of Calibration: | 7-Dec-2007 |
| PTDaemon Host System: | Controller System |
| PTDaemon Host OS: | Microsoft Windows XP Professional |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller System |
| PTDaemon Host OS: | Microsoft Windows XP Professional |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 244 | 24.1 |
| 90% | 238 | 24.1 |
| 80% | 230 | 24.1 |
| 70% | 222 | 24.1 |
| 60% | 212 | 24.1 |
| 50% | 201 | 24.1 |
| 40% | 188 | 24.1 |
| 30% | 173 | 24.1 |
| 20% | 158 | 24.1 |
| 10% | 142 | 24.1 |
| Active Idle | 123 | 24.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 24.1 | 132 |

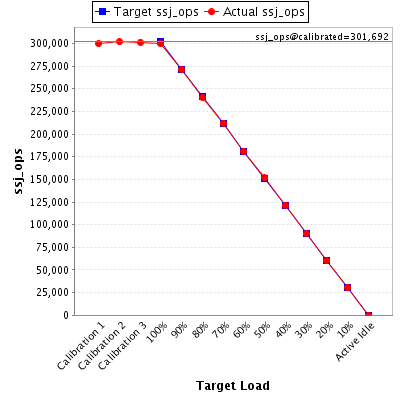

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 299,891 | ||
| Calibration 2 | 302,034 | ||
| Calibration 3 | 301,350 | ||
| ssj_ops@calibrated=301,692 | |||
| 100% | 99.3% | 301,692 | 299,610 |
| 90% | 89.8% | 271,523 | 271,070 |
| 80% | 79.8% | 241,354 | 240,820 |
| 70% | 70.3% | 211,184 | 212,024 |
| 60% | 60.0% | 181,015 | 181,153 |
| 50% | 50.2% | 150,846 | 151,573 |
| 40% | 40.3% | 120,677 | 121,535 |
| 30% | 29.9% | 90,508 | 90,177 |
| 20% | 20.0% | 60,338 | 60,236 |
| 10% | 10.1% | 30,169 | 30,370 |
| Active Idle | 0 | 0 | |
