SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Super Micro Computer, Inc. Supermicro 6025B-TR+ (Intel Xeon processor 5160) | SPECpower_ssj2008 = 318 overall ssj_ops/watt | ||||
| Test Sponsor: | Intel Corp. | SPEC License #: | 13 | Test Method: | Single Node |
| Tested By: | Intel Corp. | Test Location: | Hillsboro, Oregon, USA | Test Date: | Nov 27, 2007 |
| Hardware Availability: | Nov-2007 | Software Availability: | Nov-2007 | Publication: | Feb 13, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

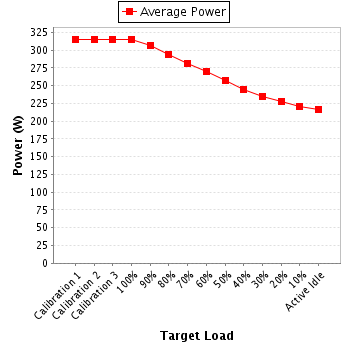

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 315 | 23.9 |
| Calibration 2 | 315 | 23.9 |
| Calibration 3 | 316 | 23.9 |
| 100% | 315 | 23.9 |
| 90% | 307 | 23.9 |
| 80% | 294 | 23.9 |
| 70% | 282 | 23.9 |
| 60% | 270 | 23.9 |
| 50% | 258 | 23.9 |
| 40% | 245 | 23.9 |
| 30% | 235 | 23.9 |
| 20% | 227 | 23.9 |
| 10% | 221 | 23.9 |
| Active Idle | 216 | 23.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G533352 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Intel Oregon Calibration Lab |
| Calibration Label: | CCN 20-24428 |
| Date of Calibration: | 13-Nov-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 0.21-2f7044de |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Digi Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 119 | -- | 2.72 | -- | 0.972 | 315 | -- |
| Calibration 2 | 119 | -- | 2.73 | -- | 0.972 | 315 | -- |
| Calibration 3 | 119 | -- | 2.73 | -- | 0.972 | 316 | -- |
| 100% | 119 | -- | 2.72 | -- | 0.972 | 315 | -- |
| 90% | 119 | -- | 2.65 | -- | 0.971 | 307 | -- |
| 80% | 119 | -- | 2.55 | -- | 0.968 | 294 | -- |
| 70% | 119 | -- | 2.45 | -- | 0.965 | 282 | -- |
| 60% | 119 | -- | 2.36 | -- | 0.963 | 270 | -- |
| 50% | 119 | -- | 2.25 | -- | 0.961 | 258 | -- |
| 40% | 119 | -- | 2.14 | -- | 0.959 | 245 | -- |
| 30% | 120 | -- | 2.05 | -- | 0.958 | 235 | -- |
| 20% | 120 | -- | 1.99 | -- | 0.957 | 227 | -- |
| 10% | 120 | -- | 1.94 | -- | 0.955 | 221 | -- |
| Active Idle | 120 | -- | 1.89 | -- | 0.954 | 216 | -- |
