SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Super Micro Computer, Inc. Supermicro 6025B-TR+ (Intel Xeon processor E5345) | SPECpower_ssj2008 = 435 overall ssj_ops/watt | ||||
| Test Sponsor: | Intel Corp. | SPEC License #: | 13 | Test Method: | Single Node |
| Tested By: | Intel Corp. | Test Location: | Hillsboro, Oregon, USA | Test Date: | Jan 11, 2008 |
| Hardware Availability: | Nov-2007 | Software Availability: | Nov-2007 | Publication: | Feb 13, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

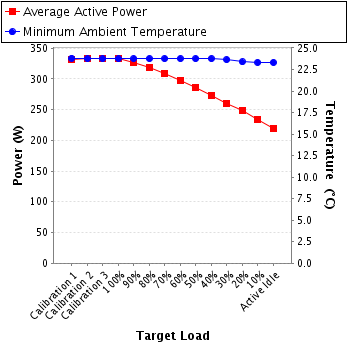

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 331 | 23.8 |
| Calibration 2 | 333 | 23.8 |
| Calibration 3 | 334 | 23.8 |
| 100% | 334 | 23.8 |
| 90% | 327 | 23.8 |
| 80% | 318 | 23.8 |
| 70% | 309 | 23.8 |
| 60% | 298 | 23.8 |
| 50% | 286 | 23.8 |
| 40% | 273 | 23.8 |
| 30% | 260 | 23.6 |
| 20% | 248 | 23.4 |
| 10% | 234 | 23.3 |
| Active Idle | 219 | 23.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G533352 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Intel Oregon Calibration Lab |
| Calibration Label: | CCN 20-24428 |
| Date of Calibration: | 13-Nov-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.0-d02d2dbe |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Digi Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

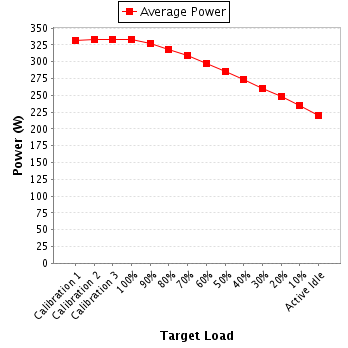

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 117 | -- | 2.89 | -- | 0.978 | 331 | -- |
| Calibration 2 | 117 | -- | 2.91 | -- | 0.978 | 333 | -- |
| Calibration 3 | 116 | -- | 2.93 | -- | 0.978 | 334 | -- |
| 100% | 116 | -- | 2.93 | -- | 0.978 | 334 | -- |
| 90% | 116 | -- | 2.87 | -- | 0.977 | 327 | -- |
| 80% | 116 | -- | 2.80 | -- | 0.976 | 318 | -- |
| 70% | 116 | -- | 2.72 | -- | 0.975 | 309 | -- |
| 60% | 117 | -- | 2.63 | -- | 0.972 | 298 | -- |
| 50% | 117 | -- | 2.52 | -- | 0.970 | 286 | -- |
| 40% | 117 | -- | 2.42 | -- | 0.968 | 273 | -- |
| 30% | 117 | -- | 2.31 | -- | 0.965 | 260 | -- |
| 20% | 117 | -- | 2.21 | -- | 0.963 | 248 | -- |
| 10% | 118 | -- | 2.08 | -- | 0.959 | 234 | -- |
| Active Idle | 117 | -- | 1.96 | -- | 0.957 | 219 | -- |
