SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Super Micro Computer, Inc. Supermicro 6025B-TR+ (Intel Xeon processor L5335) | SPECpower_ssj2008 = 423 overall ssj_ops/watt | ||||
| Test Sponsor: | Intel Corp. | SPEC License #: | 13 | Test Method: | Single Node |
| Tested By: | Intel Corp. | Test Location: | Hillsboro, Oregon, USA | Test Date: | Nov 28, 2007 |
| Hardware Availability: | Nov-2007 | Software Availability: | Nov-2007 | Publication: | Feb 13, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

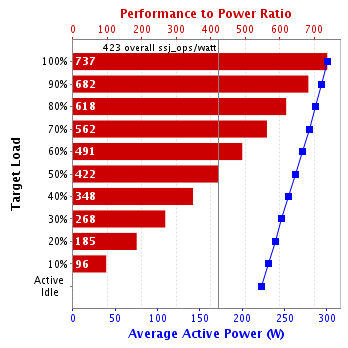

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 221,450 | 300 | 737 |
| 90% | 90.2% | 200,639 | 294 | 682 |
| 80% | 79.7% | 177,295 | 287 | 618 |
| 70% | 70.6% | 157,133 | 279 | 562 |
| 60% | 59.7% | 132,898 | 271 | 491 |
| 50% | 49.9% | 110,948 | 263 | 422 |
| 40% | 39.9% | 88,791 | 255 | 348 |
| 30% | 29.7% | 66,046 | 247 | 268 |
| 20% | 19.9% | 44,199 | 239 | 185 |
| 10% | 10.0% | 22,298 | 231 | 96.3 |
| Active Idle | 0 | 223 | 0 | |
| ∑ssj_ops / ∑power = | 423 | |||
| Set Identifier: | sut |
| Set Description: | Supermicro 6025B-TR+ (Intel Xeon processor L5335) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Super Micro Computer, Inc. |
| Model: | Supermicro 6025B-TR+ (Intel Xeon processor L5335) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon processor L5335 |
| CPU Characteristics: | Quad-Core 2.0GHz, 8 MB L2, 1333 MHz system bus |
| CPU Frequency (MHz): | 2000 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4x 2GB |
| Memory Details: | Hynix HYMP525F72BP4D2-Y5 AB-T 2GB 2Rx4 PC2-5300F-555-11 FBDIMM; slots 1A, 2A, 3A, 4A populated |
| Power Supply Quantity and Rating (W): | 2 x 700W |
| Power Supply Details: | ABLECOM PWS-702A-1R Redundant Module Switching Power Supply |
| Disk Drive: | 1 x Western Digital WD360ADFD 36GB SATA |
| Disk Controller: | Intel 631xESB/6321ESB Serial ATA Storage Controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Embedded Intel PRO/1000 EB Network Connection with I/O Acceleration |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Microsoft Windows Server 2003 Enterprise x64 Edition |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) 1.6.0_02 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3500m -Xmx3500m -XXaggressive -Xgc:genpar -Xns2900m -XXlazyunlocking -XXcallprofiling -XXtlasize:min=4k,preferred=512k -XXthroughputcompaction -XXgcthreads:4 |
| JVM Affinity: | JVM 1 to 0F, JVM 2 to F0 |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 3500 |
| JVM Maximum Heap (MB): | 3500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 0.23 |
| Director Location: | SUT |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Computer Corporation |
| Model: | Dell LATITUDE D600 |
| CPU Description: | Intel Pentium M processor 1.6 GHz |
| Memory amount (GB): | 1.0 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows XP |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build R27.4.0-90-89592-1.5.0_12-20070928-1715-windows-ia32, compiled mode) |
| CCS Version: | 0.21 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G533352 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Intel Oregon Calibration Lab |
| Calibration Label: | CCN 20-24428 |
| Date of Calibration: | 13-Nov-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 0.21-2f7044de |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Digi Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 300 | 24.4 |
| 90% | 294 | 24.4 |
| 80% | 287 | 24.4 |
| 70% | 279 | 24.4 |
| 60% | 271 | 24.4 |
| 50% | 263 | 24.4 |
| 40% | 255 | 24.4 |
| 30% | 247 | 24.4 |
| 20% | 239 | 24.4 |
| 10% | 231 | 24.4 |
| Active Idle | 223 | 24.4 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 120V / 60 Hz / 1 phase / 2 wires | 24.4 | 62 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 220,631 | ||
| Calibration 2 | 222,587 | ||
| Calibration 3 | 222,272 | ||
| ssj_ops@calibrated=222,429 | |||
| 100% | 99.6% | 222,429 | 221,450 |
| 90% | 90.2% | 200,187 | 200,639 |
| 80% | 79.7% | 177,944 | 177,295 |
| 70% | 70.6% | 155,701 | 157,133 |
| 60% | 59.7% | 133,458 | 132,898 |
| 50% | 49.9% | 111,215 | 110,948 |
| 40% | 39.9% | 88,972 | 88,791 |
| 30% | 29.7% | 66,729 | 66,046 |
| 20% | 19.9% | 44,486 | 44,199 |
| 10% | 10.0% | 22,243 | 22,298 |
| Active Idle | 0 | 0 | |
