Super Micro Computer, Inc. Supermicro 6025B-TR+ (Intel Xeon processor E5345) | SPECpower_ssj2008 = 419 overall ssj_ops/watt | ||||
Test Sponsor: | Intel Corp. | SPEC License #: | 13 | Test Method: | Single Node |
Tested By: | Intel Corp. | Test Location: | Hillsboro, Oregon, USA | Test Date: | Jan 10, 2008 |
Hardware Availability: | Nov-2007 | Software Availability: | Nov-2007 | Publication: | Feb 13, 2008 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

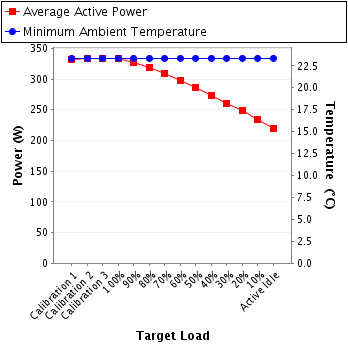

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 332 | 23.4 |
Calibration 2 | 334 | 23.4 |
Calibration 3 | 334 | 23.4 |
100% | 334 | 23.4 |
90% | 327 | 23.4 |
80% | 319 | 23.4 |
70% | 309 | 23.4 |
60% | 298 | 23.4 |
50% | 286 | 23.4 |
40% | 273 | 23.4 |
30% | 261 | 23.4 |
20% | 249 | 23.4 |
10% | 235 | 23.4 |
Active Idle | 220 | 23.4 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91G533352 |
Connectivity: | RS-232 |
Input Connection: | -- |
Calibration Institute: | NIST |
Accredited by: | Intel Oregon Calibration Lab |
Calibration Label: | CCN 20-24428 |
Date of Calibration: | 13-Nov-2007 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.0-d02d2dbe |
Setup Description: | -- |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Digi Watchport/H |
Driver Version: | Watchport Virtual Port 4.20.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | -- |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 117 | -- | 2.90 | -- | 0.978 | 332 | -- |
Calibration 2 | 117 | -- | 2.92 | -- | 0.978 | 334 | -- |
Calibration 3 | 117 | -- | 2.92 | -- | 0.978 | 334 | -- |
100% | 117 | -- | 2.92 | -- | 0.978 | 334 | -- |
90% | 117 | -- | 2.86 | -- | 0.977 | 327 | -- |
80% | 117 | -- | 2.79 | -- | 0.976 | 319 | -- |
70% | 117 | -- | 2.71 | -- | 0.974 | 309 | -- |
60% | 117 | -- | 2.61 | -- | 0.972 | 298 | -- |
50% | 117 | -- | 2.51 | -- | 0.970 | 286 | -- |
40% | 117 | -- | 2.41 | -- | 0.967 | 273 | -- |
30% | 117 | -- | 2.30 | -- | 0.965 | 261 | -- |
20% | 118 | -- | 2.20 | -- | 0.962 | 249 | -- |
10% | 118 | -- | 2.08 | -- | 0.959 | 235 | -- |
Active Idle | 118 | -- | 1.95 | -- | 0.956 | 220 | -- |
