Hewlett-Packard Company Proliant DL580 G5 (1.86 GHz, Intel Xeon processor L7345) ssj_ops@100% = 359,523
ssj_ops@100% per JVM = 89,881
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Dec 6, 2007
Hardware Availability: Jan-2008 Software Availability: Dec-2007 Publication: Dec 11, 2007
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     366,470
Calibration 2     363,082
Calibration 3     361,741
ssj_ops@calibrated=362,412
100% 99.2% 362,412 359,523
90% 89.9% 326,170 325,931
80% 80.6% 289,929 291,991
70% 70.5% 253,688 255,512
60% 59.9% 217,447 217,222
50% 49.7% 181,206 180,262
40% 40.0% 144,965 145,079
30% 30.4% 108,723 110,173
20% 19.7% 72,482 71,409
10% 10.0% 36,241 36,070
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Proliant DL580 G5 (1.86 GHz, Intel Xeon processor L7345)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: Proliant DL580 G5 (1.86 GHz, Intel Xeon processor L7345)
Form Factor: --
CPU Name: Intel Xeon L7345
CPU Characteristics: 1.86 GHz, 2x4 MB L2 shared, 1066 MHz system bus
CPU Frequency (MHz): 1860
CPU(s) Enabled: 16 cores, 4 chips, 4 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: PC2-5300F CL5 LP; slots 1,5,9,13 populated
Power Supply Quantity and Rating (W): 2 x 1200
Power Supply Details: HP part # 437572-B21
Disk Drive: 1 x 60GB HP, 1.5G, 5.4K, 2.5" SFF SATA HDD
Disk Controller: HP Smart Array P400 with 512 MB battery backed write cache
# and type of Network Interface Cards (NICs) Installed: 2 x NC373i
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: HP Dynamic Power Regulator enabled
Operating System (OS): Microsoft Windows Server 2003 x64 Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: Used "start /affinity" with "0xf", "0xf0", "0xf00" and "0xf000" CPU masks
JVM Instances: 8
JVM Initial Heap (MB): 3600
JVM Maximum Heap (MB): 3600
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 0.23
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 90,621
0001.002 88,822
0001.003 91,069
0001.004 89,011
ssj_ops@100% 359,523
ssj_ops@100% per JVM 89,881

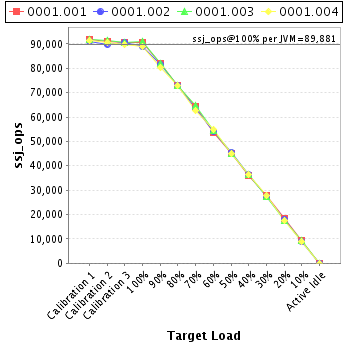

Graph of per-instance results

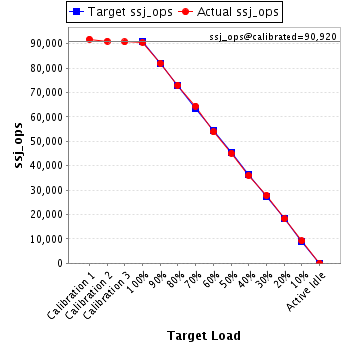

JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,896
Calibration 2     91,105
Calibration 3     90,736
ssj_ops@calibrated=90,920
100% 99.7% 90,920 90,621
90% 90.2% 81,828 81,976
80% 80.2% 72,736 72,962
70% 70.9% 63,644 64,470
60% 59.2% 54,552 53,839
50% 49.6% 45,460 45,078
40% 39.6% 36,368 35,996
30% 30.6% 27,276 27,823
20% 20.1% 18,184 18,249
10% 10.1% 9,092 9,174
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,176
Calibration 2     89,847
Calibration 3     90,595
ssj_ops@calibrated=90,221
100% 98.4% 90,221 88,822
90% 90.5% 81,199 81,680
80% 80.9% 72,177 72,961
70% 70.5% 63,155 63,629
60% 60.0% 54,133 54,124
50% 50.2% 45,111 45,327
40% 40.3% 36,088 36,329
30% 30.4% 27,066 27,411
20% 20.0% 18,044 18,038
10% 9.7% 9,022 8,760
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

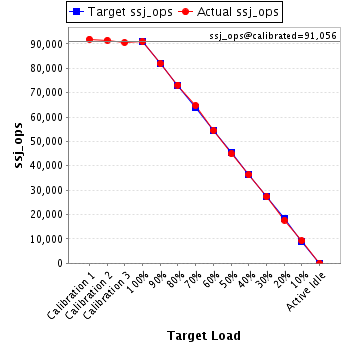

JVM '0001.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,952
Calibration 2     91,520
Calibration 3     90,593
ssj_ops@calibrated=91,056
100% 100.0% 91,056 91,069
90% 89.9% 81,951 81,894
80% 80.3% 72,845 73,125
70% 71.1% 63,740 64,746
60% 59.9% 54,634 54,526
50% 49.3% 45,528 44,919
40% 39.9% 36,423 36,309
30% 30.0% 27,317 27,315
20% 19.4% 18,211 17,688
10% 10.2% 9,106 9,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

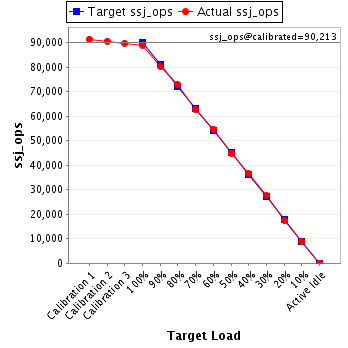

JVM '0001.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,447
Calibration 2     90,611
Calibration 3     89,816
ssj_ops@calibrated=90,213
100% 98.7% 90,213 89,011
90% 89.1% 81,192 80,381
80% 80.9% 72,171 72,942
70% 69.5% 63,149 62,667
60% 60.7% 54,128 54,733
50% 49.8% 45,107 44,938
40% 40.4% 36,085 36,446
30% 30.6% 27,064 27,624
20% 19.3% 18,043 17,434
10% 9.8% 9,021 8,870
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
