SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007 Standard Performance Evaluation Corporation
| Hewlett-Packard Company Proliant DL360 G5 (3.0 GHz, Intel Xeon processor E5450) | ssj_ops@100% = 308,847 ssj_ops@100% per JVM = 77,212 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Nov 2, 2007 |
| Hardware Availability: | Jan-2008 | Software Availability: | Dec-2007 | Publication: | Dec 11, 2007 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 308,814 | ||
| Calibration 2 | 310,719 | ||
| Calibration 3 | 310,512 | ||
| ssj_ops@calibrated=310,616 | |||
| 100% | 99.4% | 310,616 | 308,847 |
| 90% | 90.7% | 279,554 | 281,745 |
| 80% | 80.3% | 248,493 | 249,465 |
| 70% | 69.7% | 217,431 | 216,451 |
| 60% | 59.5% | 186,369 | 184,858 |
| 50% | 49.9% | 155,308 | 155,122 |
| 40% | 39.9% | 124,246 | 123,959 |
| 30% | 29.9% | 93,185 | 92,747 |
| 20% | 19.9% | 62,123 | 61,724 |
| 10% | 9.9% | 31,062 | 30,880 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Proliant DL360 G5 (3.0 GHz, Intel Xeon processor E5450) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | Proliant DL360 G5 (3.0 GHz, Intel Xeon processor E5450) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon E5450 |
| CPU Characteristics: | 3.0 GHz, 2x6 MB L2 shared, 1333 MHz system bus |
| CPU Frequency (MHz): | 3000 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4x4096 MB |
| Memory Details: | PC2-5300F CL5 LP; slots 1A,3A,5B,7B populated |
| Power Supply Quantity and Rating (W): | 1 x 700 |
| Power Supply Details: | HP part # 393527-001 |
| Disk Drive: | 1 x 60GB HP, 1.5G, 5.4K, 2.5" SFF SATA HDD |
| Disk Controller: | HP Smart Array P400 |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC373i |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | HP Dynamic Power Regulator enabled |
| Operating System (OS): | Microsoft Windows Server 2003 x64 Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | Used "start /affinity" with "0x3","0xc","0x30" and "0xc0" CPU masks. |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 3600 |
| JVM Maximum Heap (MB): | 3600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 0.23 |
| Director Location: | Controller |
| Other Software: | None |

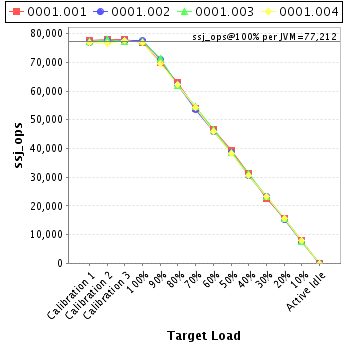

| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 77,087 |
| 0001.002 | 77,517 |
| 0001.003 | 77,250 |
| 0001.004 | 76,993 |
| ssj_ops@100% | 308,847 |
| ssj_ops@100% per JVM | 77,212 |

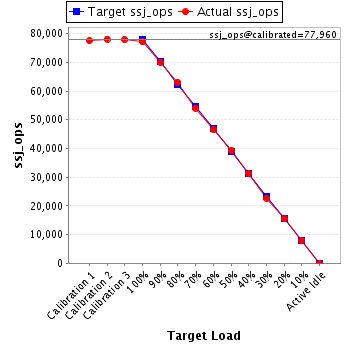

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 77,513 | ||
| Calibration 2 | 78,072 | ||
| Calibration 3 | 77,849 | ||
| ssj_ops@calibrated=77,960 | |||
| 100% | 98.9% | 77,960 | 77,087 |
| 90% | 89.9% | 70,164 | 70,116 |
| 80% | 80.9% | 62,368 | 63,091 |
| 70% | 69.4% | 54,572 | 54,072 |
| 60% | 59.6% | 46,776 | 46,501 |
| 50% | 50.4% | 38,980 | 39,280 |
| 40% | 40.2% | 31,184 | 31,363 |
| 30% | 29.1% | 23,388 | 22,691 |
| 20% | 19.8% | 15,592 | 15,455 |
| 10% | 10.0% | 7,796 | 7,833 |
| Active Idle | 0 | 0 | |

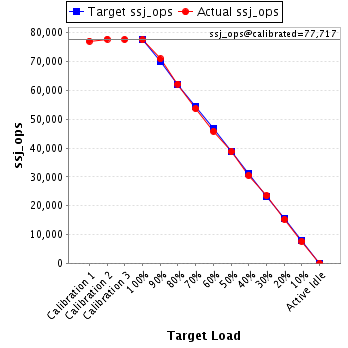

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 77,101 | ||
| Calibration 2 | 77,778 | ||
| Calibration 3 | 77,657 | ||
| ssj_ops@calibrated=77,717 | |||
| 100% | 99.7% | 77,717 | 77,517 |
| 90% | 91.3% | 69,946 | 70,939 |
| 80% | 80.0% | 62,174 | 62,204 |
| 70% | 69.0% | 54,402 | 53,653 |
| 60% | 59.0% | 46,630 | 45,835 |
| 50% | 49.8% | 38,859 | 38,740 |
| 40% | 39.2% | 31,087 | 30,493 |
| 30% | 30.1% | 23,315 | 23,413 |
| 20% | 19.6% | 15,543 | 15,220 |
| 10% | 9.8% | 7,772 | 7,602 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 77,301 | ||
| Calibration 2 | 78,108 | ||
| Calibration 3 | 77,382 | ||
| ssj_ops@calibrated=77,745 | |||
| 100% | 99.4% | 77,745 | 77,250 |
| 90% | 91.6% | 69,971 | 71,218 |
| 80% | 79.6% | 62,196 | 61,899 |
| 70% | 70.2% | 54,422 | 54,587 |
| 60% | 60.1% | 46,647 | 46,762 |
| 50% | 49.9% | 38,873 | 38,761 |
| 40% | 40.4% | 31,098 | 31,391 |
| 30% | 29.9% | 23,324 | 23,223 |
| 20% | 20.0% | 15,549 | 15,587 |
| 10% | 9.8% | 7,775 | 7,629 |
| Active Idle | 0 | 0 | |

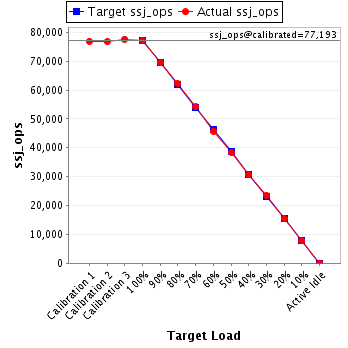

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 76,899 | ||
| Calibration 2 | 76,762 | ||
| Calibration 3 | 77,624 | ||
| ssj_ops@calibrated=77,193 | |||
| 100% | 99.7% | 77,193 | 76,993 |
| 90% | 90.0% | 69,473 | 69,471 |
| 80% | 80.7% | 61,754 | 62,272 |
| 70% | 70.1% | 54,035 | 54,138 |
| 60% | 59.3% | 46,316 | 45,760 |
| 50% | 49.7% | 38,596 | 38,342 |
| 40% | 39.8% | 30,877 | 30,712 |
| 30% | 30.3% | 23,158 | 23,420 |
| 20% | 20.0% | 15,439 | 15,462 |
| 10% | 10.1% | 7,719 | 7,816 |
| Active Idle | 0 | 0 | |
