SPECpower_ssj2008
Copyright © 2007 Standard Performance Evaluation Corporation
| Colfax International CX2266-N2 | SPECpower_ssj2008 = 203 overall ssj_ops/watt | ||||
| Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
| Tested By: | Advanced Micro Devices | Test Location: | Austin, TX USA | Test Date: | Nov 14, 2007 |
| Hardware Availability: | Sep-2007 | Software Availability: | May-2007 | Publication: | Dec 11, 2007 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

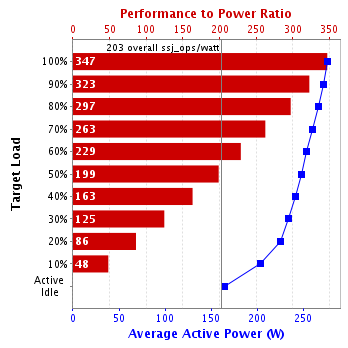

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 98.0% | 95,853 | 276 | 347 |
| 90% | 89.7% | 87,754 | 272 | 323 |
| 80% | 81.0% | 79,190 | 267 | 297 |
| 70% | 69.8% | 68,286 | 260 | 263 |
| 60% | 59.4% | 58,131 | 254 | 229 |
| 50% | 50.5% | 49,362 | 248 | 199 |
| 40% | 40.3% | 39,431 | 242 | 163 |
| 30% | 29.9% | 29,206 | 234 | 125 |
| 20% | 19.8% | 19,346 | 225 | 86.0 |
| 10% | 10.1% | 9,833 | 204 | 48.2 |
| Active Idle | 0 | 164 | 0 | |
| ∑ssj_ops / ∑power = | 203 | |||
| Set Identifier: | sut |
| Set Description: | CX2266-N2 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Colfax International |
| Model: | CX2266-N2 |
| Form Factor: | -- |
| CPU Name: | AMD Opteron 2216HE |
| CPU Characteristics: | Dual-Core, 2.4GHz, 2MB L2 Cache |
| CPU Frequency (MHz): | 2400 |
| CPU(s) Enabled: | 4 cores, 2 chips, 2 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1,2 |
| Primary Cache: | 64KB I + 64KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 8x2048MB |
| Memory Details: | DDR2-667 CL5 ECC REG; slots 1A/B, 2A/B populated for each cpu |
| Power Supply Quantity and Rating (W): | 2 x 700 |
| Power Supply Details: | Ablecom PWS-702A-1R |
| Disk Drive: | 1 x 400GB 7200K RPM SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | Slim Floppy Drive |
| Software | |
|---|---|
| Power Management: | Enabled (See SUT Notes) |
| Operating System (OS): | SuSE SLES 10 |
| OS Version: | SP1 (64-bit) |
| Filesystem: | ext3 |
| JVM Vendor: | BEA Systems, Inc |
| JVM Version: | BEA JRockit (R) (build P27.2.0-19-82330-1.5.0_10-20070515-1627-linux-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3900m -Xns3200m -Xmx3900m -XXlazyUnlocking -XXallocPrefetch -XXallocRedoPrefetch -XXaggressive -XXthroughputCompaction -Xgc:genpar -XXgcthreads=2 -XXtlasize:min=12k,preferred=512k |
| JVM Affinity: | numactl --physcpubind [0-3, 4-7] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 3900 |
| JVM Maximum Heap (MB): | 3900 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 0.23 |
| Director Location: | SUT |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Compaq |
| Model: | NX9005 |
| CPU Description: | AMD Athlon XP M |
| Memory amount (GB): | 1.0 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows XP Professional 32-bit |
| JVM Vendor: | SUN Microsystems Inc. |
| JVM Version: | Java (TM) SE Runtime Environment (build 1.6.0_02-b06) |
| CCS Version: | 0.21 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GA25595 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1469 |
| Date of Calibration: | 26-Oct-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 0.21-2f7044de |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 276 | 23.4 |
| 90% | 272 | 23.4 |
| 80% | 267 | 23.4 |
| 70% | 260 | 23.4 |
| 60% | 254 | 23.4 |
| 50% | 248 | 23.4 |
| 40% | 242 | 23.4 |
| 30% | 234 | 23.3 |
| 20% | 225 | 23.3 |
| 10% | 204 | 23.3 |
| Active Idle | 164 | 23.3 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 120V / 60 Hz / 1 phase / 2 wires | 23.3 | 168 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 95,484 | ||
| Calibration 2 | 97,959 | ||
| Calibration 3 | 97,639 | ||
| ssj_ops@calibrated=97,799 | |||
| 100% | 98.0% | 97,799 | 95,853 |
| 90% | 89.7% | 88,019 | 87,754 |
| 80% | 81.0% | 78,239 | 79,190 |
| 70% | 69.8% | 68,459 | 68,286 |
| 60% | 59.4% | 58,679 | 58,131 |
| 50% | 50.5% | 48,900 | 49,362 |
| 40% | 40.3% | 39,120 | 39,431 |
| 30% | 29.9% | 29,340 | 29,206 |
| 20% | 19.8% | 19,560 | 19,346 |
| 10% | 10.1% | 9,780 | 9,833 |
| Active Idle | 0 | 0 | |
