SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007 Standard Performance Evaluation Corporation
| Intel Corp. Intel Platform SE7520AF2 Server Board (3.6 GHz/1M L2 Intel Xeon processor) | SPECpower_ssj2008 = 87.4 overall ssj_ops/watt | ||||
| Test Sponsor: | Intel Corp. | SPEC License #: | 13 | Test Method: | Single Node |
| Tested By: | Intel Corp. | Test Location: | Hillsboro, Oregon, USA | Test Date: | Nov 28, 2007 |
| Hardware Availability: | Nov-2004 | Software Availability: | Nov-2007 | Publication: | Dec 11, 2007 |
| System Source: | Parts Built | System Designation: | Server | Power Provisioning: | Line-powered |

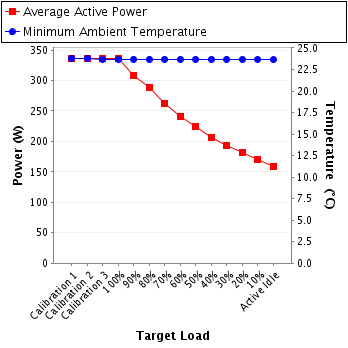

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 336 | 23.8 |
| Calibration 2 | 337 | 23.8 |
| Calibration 3 | 337 | 23.7 |
| 100% | 336 | 23.7 |
| 90% | 308 | 23.7 |
| 80% | 288 | 23.7 |
| 70% | 263 | 23.7 |
| 60% | 241 | 23.7 |
| 50% | 225 | 23.7 |
| 40% | 207 | 23.7 |
| 30% | 194 | 23.7 |
| 20% | 181 | 23.7 |
| 10% | 170 | 23.7 |
| Active Idle | 159 | 23.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G533352 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Intel Oregon Cal Lab |
| Calibration Label: | CCN 20-24428 |
| Date of Calibration: | 13-Nov-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 0.21-2f7044de |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

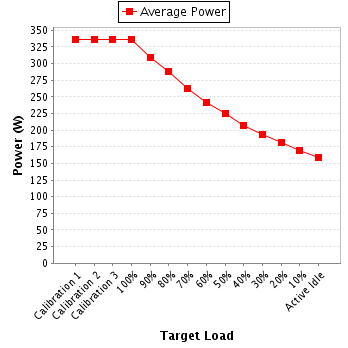

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 119 | -- | 2.86 | -- | 0.985 | 336 | -- |
| Calibration 2 | 119 | -- | 2.87 | -- | 0.985 | 337 | -- |
| Calibration 3 | 119 | -- | 2.86 | -- | 0.985 | 337 | -- |
| 100% | 119 | -- | 2.86 | -- | 0.985 | 336 | -- |
| 90% | 119 | -- | 2.64 | -- | 0.978 | 308 | -- |
| 80% | 119 | -- | 2.47 | -- | 0.974 | 288 | -- |
| 70% | 120 | -- | 2.27 | -- | 0.968 | 263 | -- |
| 60% | 120 | -- | 2.09 | -- | 0.964 | 241 | -- |
| 50% | 120 | -- | 1.95 | -- | 0.962 | 225 | -- |
| 40% | 120 | -- | 1.80 | -- | 0.961 | 207 | -- |
| 30% | 120 | -- | 1.68 | -- | 0.960 | 194 | -- |
| 20% | 120 | -- | 1.57 | -- | 0.960 | 181 | -- |
| 10% | 120 | -- | 1.47 | -- | 0.961 | 170 | -- |
| Active Idle | 121 | -- | 1.36 | -- | 0.965 | 159 | -- |
