SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007 Standard Performance Evaluation Corporation
| Fujitsu Siemens Computers PRIMERGY RX300 S3 (Intel Xeon L5335) | SPECpower_ssj2008 = 446 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu Siemens Computers | SPEC License #: | 22 | Test Method: | Single Node |
| Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, Germany | Test Date: | Nov 26, 2007 |
| Hardware Availability: | Sep-2007 | Software Availability: | Nov-2007 | Publication: | Dec 11, 2007 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

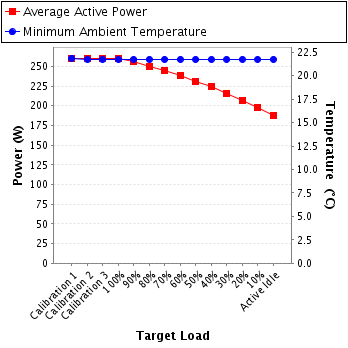

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 260 | 21.9 |
| Calibration 2 | 260 | 21.8 |
| Calibration 3 | 260 | 21.8 |
| 100% | 260 | 21.8 |
| 90% | 256 | 21.8 |
| 80% | 250 | 21.8 |
| 70% | 245 | 21.8 |
| 60% | 238 | 21.8 |
| 50% | 231 | 21.8 |
| 40% | 224 | 21.8 |
| 30% | 215 | 21.8 |
| 20% | 207 | 21.8 |
| 10% | 197 | 21.8 |
| Active Idle | 187 | 21.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Christ-Elektronik GmbH |
| Model: | CLM3000 |
| Serial Number: | 200707-0044 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | PTB (Physikalisch-Technische Bundesanstalt) |
| Accredited by: | DKD (Deutscher Kalibrierdienst) |
| Calibration Label: | 00715-07 DKD-K-23801 07-02 |
| Date of Calibration: | Feb-13-07 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 0.21-2f7044de |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 226 | -- | 1.20 | -- | 0.956 | 260 | -- |
| Calibration 2 | 226 | -- | 1.21 | -- | 0.956 | 260 | -- |
| Calibration 3 | 226 | -- | 1.20 | -- | 0.955 | 260 | -- |
| 100% | 226 | -- | 1.20 | -- | 0.955 | 260 | -- |
| 90% | 227 | -- | 1.18 | -- | 0.955 | 256 | -- |
| 80% | 227 | -- | 1.16 | -- | 0.954 | 250 | -- |
| 70% | 227 | -- | 1.13 | -- | 0.953 | 245 | -- |
| 60% | 226 | -- | 1.10 | -- | 0.952 | 238 | -- |
| 50% | 226 | -- | 1.07 | -- | 0.951 | 231 | -- |
| 40% | 226 | -- | 1.04 | -- | 0.949 | 224 | -- |
| 30% | 226 | -- | 1.01 | -- | 0.948 | 215 | -- |
| 20% | 225 | -- | 0.970 | -- | 0.947 | 207 | -- |
| 10% | 226 | -- | 0.925 | -- | 0.946 | 197 | -- |
| Active Idle | 226 | -- | 0.877 | -- | 0.945 | 187 | -- |
