SPECweb96 Result

SGI:Origin200 270MHz
Apache Software Foundation:Apache/1.3.9 + SGI patches
SPECweb96 = 8202


Performance

Throughput
(ops/sec)
Response
(msec)
85017.0
170020.5
255120.7
340119.0
425218.8
510018.7
594817.8
680317.6
765418.4
820231.2

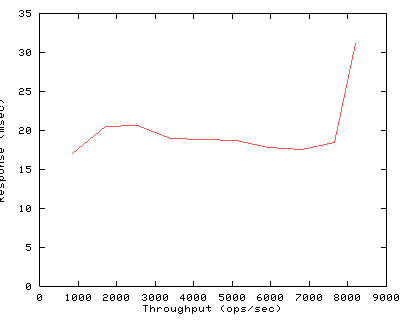

Performance Graph


Configuration

Availability Dates
Hardware May-99
HTTP Software Dec-99
Operating SystemNov-99

Hardware
Vendor SGI
Model Origin200 270MHz
Processor 270 MHz MIPS R12000
# of Processors 4
Primary Cache 32KBI+32KBD
Secondary Cache 4MB(I+D)
Other Cache None
Memory 4GB
Disk Subsystem 4GB/OS; 9GB/server log; 9GB/HTTP doc
Disk Controllers1 Internal SCSI
Other Hardware none

Software
Operating SystemIRIX 6.5.6
File System TypeXFS
Other Software

HTTP Software
Vendor Apache Software Foundation
HTTP Software Apache/1.3.9 + SGI patches
# of "threads" 24
Server Cache See Notes
Log Mode Common

Test Sponsor
Test Date Dec-99
Tested By SGI
SPEC License04

Network
# of Controllers 4
Network ControllersSGI PCI Gigabit Ethernet
# of Nets 4
Type of Nets Gigabit Jumbo Frame
Network Speed 1000Mb/s
MSL (sec) 30 (Non RFC1122)
Time-Wait (sec) 60 (Non RFC1122)

Load Generators
# of Load Generators16
# of Processes Each 16
Model Origin200
Processor 180 MHz MIPS R10000
# of Processors 2
Memory 256 MB
Network Controller SGI PCI Gigabit Ethernet
Operating System IRIX 6.5.6
Compiler MIPSpro 7.2.1

Benchmark Configuration
Maximum Requested Load 8500
Maximum Fileset Size (MB)2016


Notes

OS Notes

Network Notes

Other Notes


Test Run Details

Detailed Statistics
Load Throughput Class Target Mix Actual Mix Error Percent Mean Response Std Dev Response
850850035.0%35.0%0.00%14.6015.31
150.0%50.0%0.00%14.7815.46
214.0%14.0%0.00%27.4327.54
31.0%1.0%0.00%69.6268.88
17001700035.0%35.0%0.00%18.1722.95
150.0%50.0%0.00%18.3523.93
214.0%14.0%0.00%30.1831.38
31.0%1.0%0.00%72.2272.41
25502551035.0%35.0%0.00%18.6428.53
150.0%50.0%0.00%18.8329.69
214.0%14.0%0.00%29.1739.13
31.0%1.0%0.00%68.6670.37
34003401035.0%35.0%0.00%17.3232.37
150.0%50.0%0.00%17.4829.77
214.0%14.0%0.00%25.4534.89
31.0%1.0%0.00%62.7778.72
42504252035.0%35.0%0.00%17.1629.42
150.0%50.0%0.00%17.3927.24
214.0%14.0%0.00%24.8238.79
31.0%1.0%0.00%61.2866.09
51005100035.0%35.0%0.00%17.1128.20
150.0%50.0%0.00%17.4031.38
214.0%14.0%0.00%24.2836.76
31.0%1.0%0.00%62.1869.64
59505948035.0%35.0%0.00%16.2529.23
150.0%50.0%0.00%16.4430.02
214.0%14.0%0.00%23.4334.54
31.0%1.0%0.00%63.7576.63
68006803035.0%35.0%0.00%16.0928.80
150.0%50.0%0.00%16.2528.65
214.0%14.0%0.00%22.9432.92
31.0%1.0%0.00%67.5885.16
76507654035.0%35.0%0.00%16.7131.51
150.0%50.0%0.00%16.9031.54
214.0%14.0%0.00%23.4835.49
31.0%1.0%0.00%80.14105.13
850082020.0%0.0%0.00%
0.0%0.0%0.00%
0.0%0.0%0.00%
0.0%0.0%0.00%


Thu Jan 27 10:25:37 2000

First published at SPEC.org on 28-Dec-1999
