SPECweb96 Result

Performance

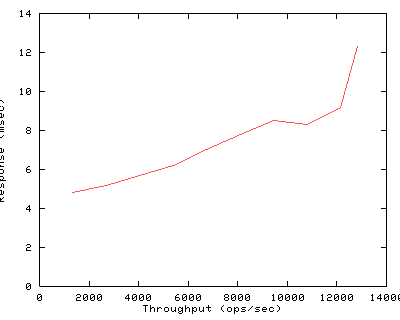

Throughput (ops/sec) Response (msec) 1350 4.8 2700 5.2 4050 5.7 5400 6.2 6750 7.0 8100 7.8 9451 8.5 10801 8.3 12149 9.2 12841 12.3

Configuration

Notes

Network Notes

• MTU size = 9000 bytes


Other Notes

• 1 disk for OS/pagefile, 3 striped disks for web pages and logs

• IIS settings: no logging, no indexing, highest performance, port

  80, spec file directory

• Network interrupts affinitized two NICs per CPU

• Registry settings for both Clients and Server:

• Tcpip/Parameters/MaxUserPort=65534 (Set maximum port number used.

  Default: 5000)

• Tcpip/Parameters/TcpWindowSize=0xffff (TCP/IP Window size.

  Default: 12xStandard frame size)

• Session Manager/Memory Management/DontVerifyRandomDrivers=1

  (Disables driver testing/verification code used for debugging faulty

  drivers. This will be disabled by default in the final Windows2000

  release)

• Registry setting for Server:

• Session Manager/Memory Management/SystemPages=0xffffffff

  (Increases default system page table entries. Default: set based on

  physical memory size)

• Session Manager/Memory Management/LargeSystemCache=0 (Reduces

  extra virtual space for file system cache from 960MB to 512MB)

• Tcpip/Parameters/TcpTimedWaitDelay=0x3c (Set TIME_WAIT to 60

  seconds. Default: 240)

• Tcpip/Parameters/MaxFreeTWTcbs=824000 (TCB timewait table

  entries. Default: 2000)

• Tcpip/Parameters/MaxHashTableSize=x10000 (Set TCB hash table size

  to 65,536 entries. Default: 512)

• InetInfo/Parameters/PoolThreadLimit=2 (Sets total pool threads.

  Default: 128)

• InetInfo/Parameters/DisableMemoryCache=1 (Disables memory cache

  parameters. Default: 0)

• InetInfo/Parameters/MaxPoolThreads=1 (Configures one thread per

  processor run model, default: 10)

• swc/Parameters/LogFileInitialSize=0xffffffff (Initial file size

  for logging)

• swc/Parameters/LogDrive=F (Sets drive letter for log file)

• Set for each Alteon NIC:

• SendCoalMax=80 (Max buffer descriptors sent before updating send

  producer index. Default: 20)

• RecvCoalMax=20 (Max buffer descriptors receive before updating

  receive producer index. Default: 333)

• SendCoalTicks=1000 (Max clock ticks (in usec) the NIC waits

  before updating send producer index. Default: 2)

• RecvCoalTicks=1000 (Max clock ticks (in usec) the NIC waits

  before updating receive producer index. Default: 2)

• PciReadMax=256 (Set Max bytes per PCI read burst)

• JumboFrames=1 (Enables Jumbo Frame support. Default: 0)


Test Run Details
