SPECweb96 Result

IBM:	Netfinity 7000 M10
Microsoft:	IIS 5.0 and SWC 2.0

SPECweb96 = 11344

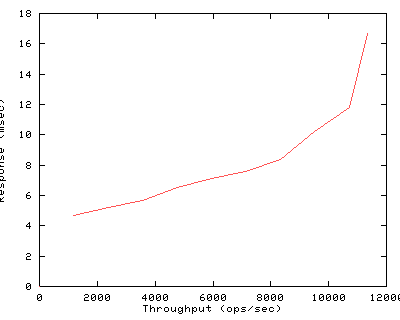

Performance

Throughput (ops/sec)	Response (msec)
1190	4.7
2380	5.2
3570	5.7
4760	6.5
5950	7.1
7141	7.6
8330	8.4
9521	10.2
10706	11.8
11344	16.7

Configuration

Availability Dates
Hardware	Mar-99
HTTP Software	Dec-99
Operating System	Oct-99

Hardware

Vendor IBM

Model Netfinity 7000 M10

Processor 500MHz Pentium III Xeon

# of Processors 2

Primary Cache 32KB

Secondary Cache 2MB

Other Cache None

Memory 4GB

Disk Subsystem 4 9.1GB 10K RPM drives

Disk Controllers Wide Ultra SCSI

Other Hardware 4 Alteon ACEswitch 180

Software

Operating System Windows 2000 Advanced Server

File System Type NTFS

Other Software None

HTTP Software

Vendor Microsoft

HTTP Software IIS 5.0 and SWC 2.0

# of "threads" 1

Server Cache

Log Mode Binary CLF

Test Sponsor
Test Date	Aug-99
Tested By	IBM
SPEC License	11

Network

# of Controllers 4

Network Controllers Alteon ACEnic PCI

# of Nets 4

Type of Nets Gigabit

Network Speed 1000 Mb

MSL (sec) 30 (Non RFC1122)

Time-Wait (sec) 60 (Non RFC1122)

Load Generators

# of Load Generators 14

# of Processes Each 14

Model Intellistation Z Pro

Processor 450Mhz Pentium II Xeon

# of Processors 2

Memory 256MB

Network Controller Alteon ACEnic PCI

Operating System Windows 2000 Professional.

Compiler None

Benchmark Configuration

Maximum Requested Load 11900

Maximum Fileset Size (MB) 2382

Notes

Network Notes

MTU size = 9000 bytes

Other Notes

Registry Settings for both Client and Server:
Tcpip/Parameters/MaxUserPort=65534 (Set maximum port number used, default: 5000)
Tcpip/Parameters/TcpWindowSize=0xffff (TCP/IP Window size, default: 12xstandard
frame size)
Session Manager/Memory Management/DontVerifyRandomDrivers=1 (Disables driver
testing/verification code used for debugging faulty drivers. This will be
disabled by default in the final Windows2000 release)
NDIS/Parameters/ProcessorAffinityMask=0 (Interrupt and DPC affinitized to same
processor, default: this is the default for Windows 2000)
Registry Settings for Server
Session Manager/Memory Management/SystemPages=0xffffffff (Increases default
system page table entries, default: set based on physical memory size)
Session Manager/Memory Management/LargeSystemCache=0 (Reduces extra virtual
space for file system cache from 960MB to 512MB)
Tcpip/Parameters/TcpTimedWaitDelay=60 (Set TIME_WAIT to 60 seconds, default: 240)
Tcpip/Parameters/MaxFreeTWTcbs=714000 (Set TCB timewait table entries,
default: 2000)
Tcpip/Parameters/MaxHashTableSize=65536 (Set TCB hash table size entries,
default: 512)
InetInfo/Parameters/PoolThreadLimit=2 (Sets total pool threads, default: 128)
InetInfo/Parameters/DisableMemoryCache=1 (Disables memory cache parameters,
Default: 0)
InetInfo/Parameters/MaxPoolThreads=1 (Configures one thread per processor run
model, default: 10)
swc/Parameters/LogFileInitialSize=0xffffffff (Initial file size for logging)
swc/Parameters/LogDrive=F (Sets drive letter for log file)
1 disk for OS/pagefile, 3 striped disks for web pages and logs
Modified the following Alteon NIC driver configuration entries:
SendCoalMax=80 (Max buffer descriptors sent before updating send producer index,
default: 333)
RecvCoalMax=20 (Max buffer descriptors receive before updating receive producer
index, default: 333)
SendCoalTicks=1000 (Max clock ticks (in usec) the NIC waits before updating send
producer index, default: 2)
RecvCoalTicks=1000 (Max clock ticks (in usec) the NIC waits before updating
receive producer index, default: 2)
PciReadMax=256 (Set Max bytes per PCI read burst)
JumboFrames=1 (Enables Jumbo Frame support, default: 0)
Network interrupts affinitized one NIC per CPU
IIS settings: no logging, no indexing, highest performance, port 80, spec file
directory

Test Run Details

Detailed Statistics
Load	Throughput	Class	Target Mix	Actual Mix	Error Percent	Mean Response	Std Dev Response
1190	1190	0	35.0%	35.0%	0.00%	3.90	7.49
		1	50.0%	50.0%	0.00%	4.14	14.94
		2	14.0%	14.0%	0.00%	7.49	17.66
		3	1.0%	1.0%	0.00%	26.78	40.92
2380	2380	0	35.0%	35.0%	0.00%	4.35	7.85
		1	50.0%	50.0%	0.00%	4.56	15.01
		2	14.0%	14.0%	0.00%	7.95	14.82
		3	1.0%	1.0%	0.00%	27.42	27.50
3570	3570	0	35.0%	35.0%	0.00%	4.91	15.75
		1	50.0%	50.0%	0.00%	5.05	15.84
		2	14.0%	14.0%	0.00%	8.58	16.77
		3	1.0%	1.0%	0.00%	28.70	28.77
4760	4760	0	35.0%	35.0%	0.00%	5.64	16.95
		1	50.0%	50.0%	0.00%	5.75	15.11
		2	14.0%	14.0%	0.00%	9.37	16.34
		3	1.0%	1.0%	0.00%	30.39	33.01
5950	5950	0	35.0%	35.0%	0.00%	6.20	13.40
		1	50.0%	50.0%	0.00%	6.31	13.83
		2	14.0%	14.0%	0.00%	10.02	13.84
		3	1.0%	1.0%	0.00%	32.43	42.91
7140	7141	0	35.0%	35.0%	0.00%	6.70	13.42
		1	50.0%	50.0%	0.00%	6.79	12.66
		2	14.0%	14.0%	0.00%	10.63	16.22
		3	1.0%	1.0%	0.00%	34.31	36.40
8330	8330	0	35.0%	35.0%	0.00%	7.50	13.63
		1	50.0%	50.0%	0.00%	7.58	13.03
		2	14.0%	14.0%	0.00%	11.67	19.97
		3	1.0%	1.0%	0.00%	37.13	40.36
9520	9521	0	35.0%	35.0%	0.00%	9.14	15.94
		1	50.0%	50.0%	0.00%	9.20	13.54
		2	14.0%	14.0%	0.00%	13.92	20.12
		3	1.0%	1.0%	0.00%	42.21	43.14
10710	10706	0	35.0%	35.0%	0.00%	10.61	13.95
		1	50.0%	50.0%	0.00%	10.69	14.02
		2	14.0%	14.0%	0.00%	16.17	19.75
		3	1.0%	1.0%	0.00%	46.37	47.25
11900	11344		0.0%	0.0%	0.00%
			0.0%	0.0%	0.00%
			0.0%	0.0%	0.00%
			0.0%	0.0%	0.00%

Tue Sep 7 15:14:58 1999

First published at SPEC.org on 07-Sep-1999
