SPECweb96 Result

Hewlett-Packard:NetServer LXr 8000
Microsoft:IIS 4.0 and SWC 1.1
SPECweb96 = 3284


Performance

Throughput
(ops/sec)
Response
(msec)
3404.8
6805.3
10205.5
13606.4
17006.5
20407.0
23807.4
27208.2
30608.9
328428.7

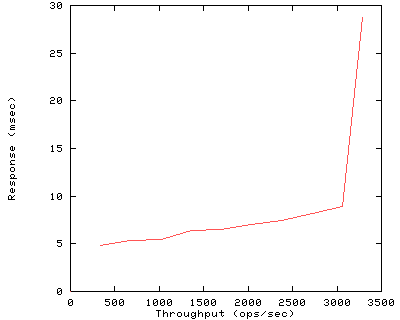

Performance Graph


Configuration

Availability Dates
Hardware Jan-99
HTTP Software May-99
Operating SystemMay-99

Hardware
Vendor Hewlett-Packard
Model NetServer LXr 8000
Processor Pentium II Xeon 450MHz
# of Processors 1
Primary Cache 16KBI+16KBD on chip
Secondary Cache 2MB(I+D) off chip
Other Cache None
Memory 2.0 GB
Disk Subsystem 5 4GB 10K RPM Drive
Disk Controllers1 Ultra-SCSI
Other Hardware

Software
Operating SystemMicrosoft Windows NT Server 4.0 EE SP 4
File System TypeNTFS
Other Software None

HTTP Software
Vendor Microsoft
HTTP Software IIS 4.0 and SWC 1.1
# of "threads" 1
Server Cache Microsoft Scalable Web Cache 1.1
Log Mode Binary CLF

Test Sponsor
Test Date Jan-99
Tested By Hewlett-Packard
SPEC License3

Network
# of Controllers 2
Network ControllersAlteon ACEnic PCI Gigabit
# of Nets 2
Type of Nets Jumbo Frame Gigabit
Network Speed 1000Mb/s
MSL (sec) 30 (Non RFC1122)
Time-Wait (sec) 60 (Non RFC1122)

Load Generators
# of Load Generators6
# of Processes Each 16
Model Hewlett-Packard Kayak XU
Processor Pentium II 450MHz
# of Processors 1
Memory 128MB
Network Controller Alteon ACEnic PCI Gigabit
Operating System Microsoft Windows NT 4.0 Workstation SP 4
Compiler Microsoft Visual C++ 5.0

Benchmark Configuration
Maximum Requested Load 3400
Maximum Fileset Size (MB)1274


Notes

OS Notes

Network Notes

Other Notes


Test Run Details

Detailed Statistics
Load Throughput Class Target Mix Actual Mix Error Percent Mean Response Std Dev Response
340340035.0%35.0%0.00%3.893.69
150.0%50.0%0.00%4.153.92
214.0%14.0%0.00%7.767.30
31.0%1.0%0.00%29.0127.70
680680035.0%35.0%0.00%4.3512.84
150.0%50.0%0.00%4.6111.07
214.0%14.0%0.00%8.327.85
31.0%1.0%0.00%30.6029.29
10201020035.0%35.0%0.00%4.508.18
150.0%50.0%0.00%4.8112.58
214.0%14.0%0.00%8.6413.78
31.0%1.0%0.00%31.3430.03
13601360035.0%35.0%0.00%5.287.50
150.0%50.0%0.00%5.6313.66
214.0%14.0%0.00%9.6110.69
31.0%1.0%0.00%34.1534.34
17001700035.0%35.0%0.00%5.4310.09
150.0%50.0%0.00%5.7510.34
214.0%14.0%0.00%9.8910.31
31.0%1.0%0.00%35.3934.57
20402040035.0%35.0%0.00%5.8911.04
150.0%50.0%0.00%6.239.19
214.0%14.0%0.00%10.5513.29
31.0%1.0%0.00%37.5646.35
23802380035.0%35.0%0.00%6.239.28
150.0%50.0%0.00%6.6412.37
214.0%14.0%0.00%11.1113.13
31.0%1.0%0.00%39.3237.99
27202720035.0%35.0%0.00%6.9212.10
150.0%50.0%0.00%7.309.93
214.0%14.0%0.00%12.0915.34
31.0%1.0%0.00%41.8340.54
30603060035.0%35.0%0.00%7.5311.72
150.0%50.0%0.00%7.9610.97
214.0%14.0%0.00%13.0012.69
31.0%1.0%0.00%44.1742.53
34003284035.0%35.0%0.00%27.4326.32
150.0%50.0%0.00%27.7526.21
214.0%14.0%0.00%32.6830.78
31.0%1.0%0.00%61.0257.30


Mon Feb 1 15:53:41 1999

First published at SPEC.org on 26-Jan-1999
