SPECweb96 Result

IBM:Netfinity 7000
Microsoft:Internet Information Server 3.0
SPECweb96 = 1527


Performance

Throughput
(ops/sec)
Response
(msec)
1604.8
3205.3
4805.8
6406.5
8007.2
9608.6
11209.6
128011.0
144013.0
152715.6

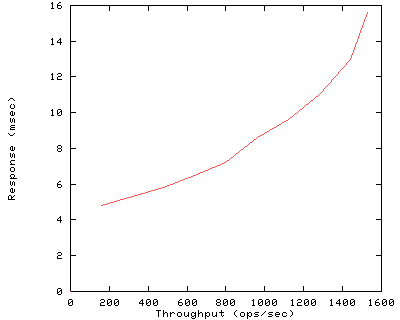

Performance Graph


Configuration

Availability Dates
Hardware Oct-97
HTTP Software Mar-97
Operating SystemDec-97

Hardware
Vendor IBM
Model Netfinity 7000
Processor 200MHz Pentium Pro
# of Processors 2
Primary Cache 8KBI+8KBD on chip
Secondary Cache 1MB(I+D)
Other Cache None
Memory 2GB
Disk Subsystem 1 4.51GB 7200RPM & 5-4.2GB 10K RPM drives
Disk Controllers2 7880 Ultra SCSI
Other Hardware None

Software
Operating SystemWindows NT Server 4.0
File System TypeNTFS
Other Software None

HTTP Software
Vendor Microsoft
HTTP Software Internet Information Server 3.0
# of "threads" 1
Server Cache Default
Log Mode Standard

Test Sponsor
Test Date May-98
Tested By IBM
SPEC License2

Network
# of Controllers 4
Network ControllersSysKonnect SK-NET FDDI-LP DAS
# of Nets 4
Type of Nets FDDI DAS
Network Speed 100Mb/s
MSL (sec) 30 (Non RFC1122)
Time-Wait (sec) 60 (Non RFC1122)

Load Generators
# of Load Generators8
# of Processes Each 3
Model Netfinity 3500
Processor 333MHz PentiumII
# of Processors 2
Memory 64MB
Network Controller SysKonnect SK-NET FDDI-LP DAS
Operating System Windows NT Workstation 4.0 +SP3
Compiler

Benchmark Configuration
Maximum Requested Load 1600
Maximum Fileset Size (MB)873


Notes

OS Notes

Network Notes

Other Notes


Test Run Details

Detailed Statistics
Load Throughput Class Target Mix Actual Mix Error Percent Mean Response Std Dev Response
160160035.0%35.0%0.00%3.203.10
150.0%50.0%0.00%3.8015.37
214.0%14.0%0.00%9.018.78
31.0%1.0%0.00%57.9757.96
320320035.0%35.0%0.00%3.553.48
150.0%50.0%0.00%4.083.94
214.0%14.0%0.00%9.799.66
31.0%1.0%0.00%62.4662.77
480480035.0%35.0%0.00%3.963.91
150.0%50.0%0.00%4.509.65
214.0%14.0%0.00%10.5510.47
31.0%1.0%0.00%68.1268.66
640640035.0%35.0%0.00%4.5713.22
150.0%50.0%0.00%5.0813.82
214.0%14.0%0.00%11.6011.55
31.0%1.0%0.00%74.1074.88
800800035.0%35.0%0.00%5.1214.47
150.0%50.0%0.00%5.575.49
214.0%14.0%0.00%12.9012.91
31.0%1.0%0.00%81.6182.75
960960035.0%35.0%0.00%6.2915.61
150.0%50.0%0.00%6.7712.34
214.0%14.0%0.00%14.8922.00
31.0%1.0%0.00%91.3092.76
11201120035.0%35.0%0.00%7.0315.08
150.0%50.0%0.00%7.5214.46
214.0%14.0%0.00%16.5621.39
31.0%1.0%0.00%102.68110.95
12801280035.0%35.0%0.00%8.2414.82
150.0%50.0%0.00%8.7215.49
214.0%14.0%0.00%18.7218.71
31.0%1.0%0.00%113.82115.34
14401440035.0%35.0%0.00%9.9016.59
150.0%50.0%0.00%10.3713.60
214.0%14.0%0.00%21.9626.13
31.0%1.0%0.00%126.72128.61
16001527035.0%35.0%0.00%12.1214.06
150.0%50.0%0.00%12.6215.12
214.0%14.0%0.00%25.9933.05
31.0%1.0%0.00%144.23150.09


Tue Jun 23 13:34:45 1998

First published at SPEC.org on 16-Jun-1998
