SPECweb96 Result

Micron Electronics:	NetFRAME 3100
Microsoft:	Internet Information Server 4.0

SPECweb96 = 1825

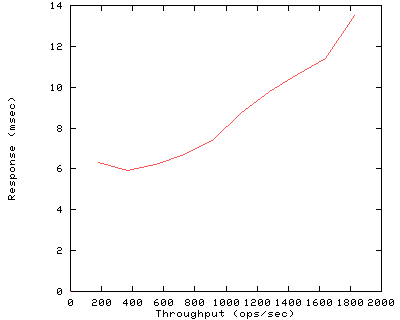

Performance

Throughput (ops/sec)	Response (msec)
182	6.3
365	5.9
547	6.2
730	6.7
912	7.4
1095	8.7
1277	9.8
1460	10.6
1642	11.4
1825	13.5

Configuration

Availability Dates
Hardware	May-98
HTTP Software	Mar-98
Operating System	Mar-98

Hardware

Vendor Micron Electronics

Model NetFRAME 3100

Processor 400MHz Pentium II Processor

# of Processors 2

Primary Cache 16KBI+16KBD on chip

Secondary Cache 512KB(I+D) off chip

Other Cache None

Memory 1.0 GB

Disk Subsystem 19 2 GB 7.2K RPM Wide SCSI disks and 1 1.2 GB IDE

Disk Controllers 1 AMI 434 SCSI RAID controller

Other Hardware Cisco Catalyst 5000 Ethernet Switch

Software

Operating System NT 4.0 SP3

File System Type NTFS

Other Software None

HTTP Software

Vendor Microsoft

HTTP Software Internet Information Server 4.0

# of "threads" 1

Server Cache Default

Log Mode Combined

Test Sponsor
Test Date	Mar-98
Tested By	Intel Corp.
SPEC License	14

Network

# of Controllers 4

Network Controllers Pro100+ 100Mb/s Ethernet Adapter

# of Nets 4

Type of Nets Ethernet

Network Speed 100 Mb/s

MSL (sec) 30 (Non RFC1122)

Time-Wait (sec) 60 (Non RFC1122)

Load Generators

# of Load Generators 7

# of Processes Each 4

Model NetFRAME MV5000

Processor 300Mhz Pentium II Processor

# of Processors 2

Memory 256MB

Network Controller Pro100B 100Mbps Ethernet Adpater

Operating System NT 4.0 SP3 Server

Compiler Microsoft Visual C++ 4.1

Benchmark Configuration

Maximum Requested Load 1825

Maximum Fileset Size (MB) 937

Notes

OS Notes

12/97 TCP/IP & AFD Transport hotfix(ftp://ftp.microsoft.com/bussys/winnt/winnt-public/fixes/usa/NT40/hotfixes-postSP3/)
IIS 4.0 logfix 4/98 (ftp://ftp.microsoft.com/bussys/winnt/winnt-public/fixes/usa/NT40/hotfixes-postSP3/)
NDIS hotfix 12/97 (ftp://ftp.microsoft.com/bussys/winnt/winnt-public/fixes/usa/NT40/hotfixes-postSP3)
intbind 3/98 (ftp://ftp.microsoft.com/bussys/winnt/winnt-public/tools/affinity/)

Network Notes

No Hubs were used. All of the 4 networks were configured as 100Mbit/sec, full duplex.
The 4 networks were isolated by configuring the network switch to host 4 virtual LANs.
Three networks included one card in the server under test and two clients.
The fourth network included 1 card in the server under test and one client.
Clients 1 and 2 on 1st segment, clients 3 and 4 on the second, 5 and 6 on the third
and 7 on the fourth segment.

Other Notes

Performance Boost for Foreground Application=NONE --Do not raise the priority of the foreground application, default is halfway.
Disable IIS Windows NT Challenge/Response --Disables IIS user information encryption, default is enabled.
Added Registry Entry InetInfo/Parameters/ObjectCacheTTL=0xea60 --Keeps IIS open descriptors active at least 16.6 hours, default is 10 minutes.
Added Registry Entry InetInfo/Parameters/MemoryCacheSize=0x800000 --Ups the cache open descriptor table to 128MB, default is 4MB.
Added Registry Entry InetInfo/Parameters/ListenBacklog=0x19 --Specifies maximum active connections to hold in server queue, default is 15.
Added Registry Entry InetInfo/Parameters/LogFileFlushInterval=0x3c --Specifies maximum active connections to hold in server queue,default is 30.
Added Registry Entry InetInfo/Parameters/MaxPoolThreads=2 --Specifies maximum network request threads per processor, default is 4.
Added Registry Entry InetInfo/Parameters/PoolThreadLimit=4 --Specifies maximum pool threads in system, default is 2 * #MB.
Added Registry Entry Tcpip/Parameters/MaxFreeTcbs=0x1bd50 --Increases the TCB timewait table to 114000 entries, default is 2000.
Added Registry Entry Tcpip/Parameters/MaxHashTableSize=0x10000 --Sets TCB hash table size to 65,536 entries, default is 512.
Added Registry Entry Tcpip/Parameters/TcpTimedWaitDelay=0x3c --Sets TIME_WAIT parameter to 60 seconds (non-RFC 1122), default is 30.
Set NDIS/Parameters/ProcessorAffinityMask to 0 --Forces processor that handled interrupt to also handle that DPC, default is any processor.
One 1.2GB IDE disk for OS, 15 2GB 7200 RPM disks for web pages, 2 2GB 7200 RPM disks for logs, 2 1.2GB 7200 RPM disks for Pagefile
Network interrupts affinitized to two network cards to each processor
Disks: 1 - Western Digital Caviar 21000 IDE, 19 - 2 GB Quantum XP 34300W fast wide SCSI disks

Test Run Details

Detailed Statistics
Load	Throughput	Class	Target Mix	Actual Mix	Error Percent	Mean Response	Std Dev Response
182	182	0	35.0%	35.0%	0.00%	3.43	3.34
		1	50.0%	50.0%	0.00%	4.16	4.06
		2	14.0%	14.0%	0.00%	9.81	17.27
		3	1.0%	1.0%	0.00%	167.06	208.17
365	365	0	35.0%	35.0%	0.00%	3.79	3.68
		1	50.0%	50.0%	0.00%	4.57	4.39
		2	14.0%	14.0%	0.00%	10.02	22.55
		3	1.0%	1.0%	0.00%	91.02	127.13
547	547	0	35.0%	35.0%	0.00%	4.16	4.04
		1	50.0%	50.0%	0.00%	5.07	14.55
		2	14.0%	14.0%	0.00%	10.51	18.43
		3	1.0%	1.0%	0.00%	70.57	85.39
730	730	0	35.0%	35.0%	0.00%	4.62	9.36
		1	50.0%	50.0%	0.00%	5.54	11.18
		2	14.0%	14.0%	0.00%	11.30	19.39
		3	1.0%	1.0%	0.00%	72.19	80.58
912	912	0	35.0%	35.0%	0.00%	5.18	8.86
		1	50.0%	50.0%	0.00%	6.17	12.26
		2	14.0%	14.0%	0.00%	12.40	12.85
		3	1.0%	1.0%	0.00%	76.59	80.83
1095	1095	0	35.0%	35.0%	0.00%	6.10	11.16
		1	50.0%	50.0%	0.00%	7.26	13.23
		2	14.0%	14.0%	0.00%	14.57	18.80
		3	1.0%	1.0%	0.00%	86.95	90.34
1277	1277	0	35.0%	35.0%	0.00%	6.92	12.67
		1	50.0%	50.0%	0.00%	8.22	15.97
		2	14.0%	14.0%	0.00%	16.50	21.39
		3	1.0%	1.0%	0.00%	97.17	98.92
1460	1460	0	35.0%	35.0%	0.00%	7.44	10.82
		1	50.0%	50.0%	0.00%	8.82	13.88
		2	14.0%	14.0%	0.00%	18.09	18.59
		3	1.0%	1.0%	0.00%	109.02	110.11
1642	1642	0	35.0%	35.0%	0.00%	7.70	7.45
		1	50.0%	50.0%	0.00%	9.33	11.82
		2	14.0%	14.0%	0.00%	19.84	20.47
		3	1.0%	1.0%	0.00%	120.67	126.38
1825	1825	0	35.0%	35.0%	0.00%	8.89	11.40
		1	50.0%	50.0%	0.00%	11.18	13.95
		2	14.0%	14.0%	0.00%	24.19	27.37
		3	1.0%	1.0%	0.00%	145.17	150.18

Tue Apr 21 17:00:53 PDT 1998

First published at SPEC.org on 05-May-1998
