SPECweb96 Result

Hewlett-Packard:NetServer LH Pro 6/200
Microsoft:Internet Information Server 4.0
SPECweb96 = 905


Performance

Throughput
(ops/sec)
Response
(msec)
906.8
1816.8
2717.2
3627.8
4528.8
5439.6
63311.0
72412.9
81415.2
90518.3

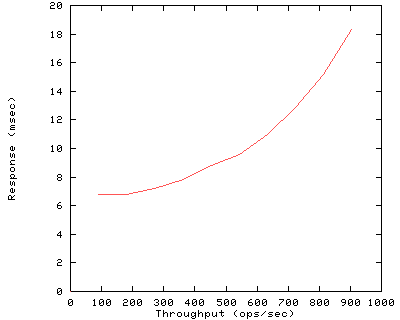

Performance Graph


Configuration

Availability Dates
Hardware Aug-96
HTTP Software Jul-98
Operating SystemDec-97

Hardware
Vendor Hewlett-Packard
Model NetServer LH Pro 6/200
Processor 200MHz PentiumPro
# of Processors 1
Primary Cache 8KBI+8KBD on chip
Secondary Cache 512KB(I+D) off chip
Other Cache None
Memory 1024 MB
Disk Subsystem 4 4GB 10K RPM Drive
Disk Controllers2 Ultra-SCSI
Other Hardware None

Software
Operating SystemNT 4.0 SP3
File System TypeNTFS
Other Software None

HTTP Software
Vendor Microsoft
HTTP Software Internet Information Server 4.0
# of "threads" Default
Server Cache Default
Log Mode Combined

Test Sponsor
Test Date Mar-98
Tested By Hewlett-Packard
SPEC License3

Network
# of Controllers 2
Network ControllersDEC DEFPA-MB
# of Nets 2
Type of Nets FDDI over Cat5 UTP
Network Speed 100Mb/s
MSL (sec) 30 (Non RFC1122)
Time-Wait (sec) 60 (Non RFC1122)

Load Generators
# of Load Generators4
# of Processes Each 2
Model Hewlett-Packard Kayak XU
Processor 300MHz PentiumII
# of Processors 2
Memory 64MB
Network Controller DEC DEFPA FDDI over UTP
Operating System NT 4.0 Workstation SP3
Compiler Visual C++ 5.0

Benchmark Configuration
Maximum Requested Load 905
Maximum Fileset Size (MB)659


Notes

OS Notes

Network Notes

Other Notes


Test Run Details

Detailed Statistics
Load Throughput Class Target Mix Actual Mix Error Percent Mean Response Std Dev Response
9090035.0%35.1%0.00%4.376.23
150.0%50.0%0.00%5.1520.54
214.0%14.0%0.00%11.5112.93
31.0%1.0%0.00%106.50103.81
181181035.0%35.0%0.00%4.6417.40
150.0%50.0%0.00%5.3415.07
214.0%14.0%0.00%11.7012.02
31.0%1.0%0.00%87.2187.24
271271035.0%35.0%0.00%5.035.59
150.0%50.0%0.00%5.7812.79
214.0%14.0%0.00%12.7524.78
31.0%1.0%0.00%78.6476.16
362362035.0%35.0%0.00%5.6112.95
150.0%50.0%0.00%6.266.31
214.0%14.0%0.00%13.7126.58
31.0%1.0%0.00%81.5077.98
452452035.0%35.0%0.00%6.4719.16
150.0%50.0%0.00%7.0716.93
214.0%14.0%0.00%14.7921.78
31.0%1.0%0.00%89.3485.84
543543035.0%35.0%0.00%7.1711.93
150.0%50.0%0.00%7.8011.08
214.0%14.0%0.00%16.2021.59
31.0%1.0%0.00%96.9393.23
633633035.0%35.0%0.00%8.348.31
150.0%50.0%0.00%8.9511.42
214.0%14.0%0.00%18.2019.36
31.0%1.0%0.00%105.31100.69
724724035.0%35.0%0.00%10.0615.31
150.0%50.0%0.00%10.6515.69
214.0%14.0%0.00%21.0523.82
31.0%1.0%0.00%115.17111.41
814814035.0%35.0%0.00%11.9917.84
150.0%50.0%0.00%12.6216.53
214.0%14.0%0.00%24.1828.70
31.0%1.0%0.00%127.67121.90
905905035.0%35.0%0.00%14.8217.45
150.0%50.0%0.00%15.5019.98
214.0%14.0%0.00%28.4031.15
31.0%1.0%0.00%142.82142.27


Mon Mar 30 17:28:55 PST 1998

First published at SPEC.org on 24-Mar-1998
