SPECweb96 Result

IBM Austin,Tx:RS/6000 Model S70
Zeus Technology Ltd:Zeus 1.3.0
SPECweb96 = 4075


Performance

Throughput
(ops/sec)
Response
(msec)
4206.0
8406.2
12606.5
16806.9
21007.6
25208.5
29409.5
335911.3
377915.1
407531.2

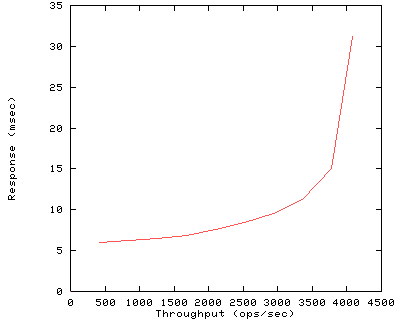

Performance Graph


Configuration

Availability Dates
Hardware Oct-97
HTTP Software Oct-97
Operating SystemJan-98

Hardware
Vendor IBM Austin,Tx
Model RS/6000 Model S70
Processor 125MHz PwrPC RS64
# of Processors 12
Primary Cache 64KBI+64KBD on chip
Secondary Cache 4MB(I+D) off chip
Other Cache None
Memory 4096MB
Disk Subsystem 1 4.5GB 16bSCSI w/ 2 2GB SSA Logical Disks
Disk ControllersWide SCSI, SSA Enhanced RAID Adapter
Other Hardware IBM 8260 ATM switch

Software
Operating SystemAIX 4.3 + APAR IX72259,IX73249 (see notes)
File System TypeJFS
Other Software None

HTTP Software
Vendor Zeus Technology Ltd
HTTP Software Zeus 1.3.0
# of "threads" 8
Server Cache -b 1048576 -t 15000 -q -n -m 1
Log Mode Common Log Format

Test Sponsor
Test Date Dec-97
Tested By IBM Austin
SPEC License11

Network
# of Controllers 8
Network ControllersIBM PCI 155Mbps ATM adapter
# of Nets 8
Type of Nets ATM
Network Speed 155 Mb/s
MSL (sec) 30 (Non RFC1122)
Time-Wait (sec) 60 (Non RFC1122)

Load Generators
# of Load Generators8
# of Processes Each 16
Model 8 RS/6000 7043-240
Processor 233MHz PwrPC 604e
# of Processors 2
Memory 256MB
Network Controller IBM PCI 155Mbps ATM
Operating System AIX 4.2.1
Compiler IBM Cset++ Version 3.1.3

Benchmark Configuration
Maximum Requested Load 4200
Maximum Fileset Size (MB)1415


Notes

OS Notes

Network Notes

Other Notes


Test Run Details

Detailed Statistics
Load Throughput Class Target Mix Actual Mix Error Percent Mean Response Std Dev Response
420420035.0%35.0%0.00%4.356.52
150.0%50.0%0.00%5.167.02
214.0%14.0%0.00%9.8710.38
31.0%1.0%0.00%48.9151.43
840840035.0%35.0%0.00%4.586.61
150.0%50.0%0.00%5.317.10
214.0%14.0%0.00%10.1810.62
31.0%1.0%0.00%51.0252.69
12601260035.0%35.0%0.00%4.756.79
150.0%50.0%0.00%5.517.30
214.0%14.0%0.00%10.6911.21
31.0%1.0%0.00%53.7655.83
16801680035.0%35.0%0.00%5.117.23
150.0%50.0%0.00%5.877.66
214.0%14.0%0.00%11.2911.83
31.0%1.0%0.00%57.3959.57
21002100035.0%35.0%0.00%5.759.05
150.0%50.0%0.00%6.519.28
214.0%14.0%0.00%12.2813.68
31.0%1.0%0.00%62.7066.55
25202520035.0%35.0%0.00%6.4912.18
150.0%50.0%0.00%7.2612.37
214.0%14.0%0.00%13.4416.75
31.0%1.0%0.00%69.1873.78
29402940035.0%35.0%0.00%7.3412.81
150.0%50.0%0.00%8.1212.85
214.0%14.0%0.00%14.9018.22
31.0%1.0%0.00%78.5084.53
33603359035.0%35.0%0.00%8.8617.59
150.0%50.0%0.00%9.6717.29
214.0%14.0%0.00%17.4523.36
31.0%1.0%0.00%93.23103.57
37803779035.0%35.0%0.00%11.9921.15
150.0%50.0%0.00%12.9821.77
214.0%14.0%0.00%22.6829.88
31.0%1.0%0.00%124.47144.74
42004075035.0%35.0%0.00%26.4849.16
150.0%50.0%0.00%27.4249.72
214.0%14.0%0.00%40.5360.08
31.0%1.0%0.00%253.81277.38


Thu Jan 22 17:14:30 PST 1998

First published at SPEC.org on 20-Jan-1998
