SPECsfs97_R1.v3 Result

NetApp, Inc. :	FAS3170
SPECsfs97_R1.v3 =	137306 Ops/Sec (Overall Response Time = 0.94 msec)

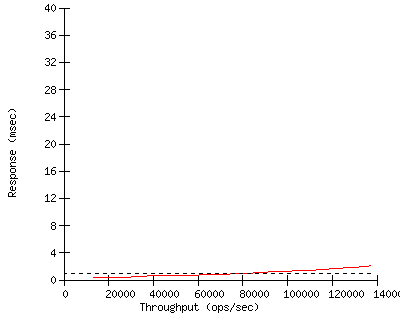

Performance

Throughput (ops/sec)	Response (msec)
13267	0.4
26757	0.4
40327	0.6
53894	0.7
67311	0.8
81110	1.0
94773	1.2
109810	1.4
121392	1.7
135333	2.0
136186	2.0
137306	2.1

Configuration

Server Configuration and Availability
Vendor	NetApp, Inc.
Hardware Available	June 2008
Software Available	July 2008
Date Tested	May 2008
SFS License Number	33
Licensee Locations	Sunnyvale, CA

CPU, Memory and Power

Model Name FAS3170

Processor 2.6-GHz AMD Opteron(tm) 2218

# of Processors 8 cores, 4 chips, 2 cores/chip

Primary Cache 64 KB I + 64 KB D on chip

Secondary Cache 1 MB (I+D) on chip

Other Cache N/A

UPS none

Other Hardware Embedded NVRAM with cluster interconnect

Memory Size 32 GB (16 GB per controller)

NVRAM Size 4 GB (2 GB per controller)

NVRAM Type DIMMs

NVRAM Description minimum 3-day battery-backed shelf-life

Server Software

OS Name and Version Data ONTAP 7.3

Other Software Cluster Option

File System WAFL

NFS version 3

Server Tuning

Buffer Cache Size default

# NFS Processes N/A

Fileset Size 1297.8 GB

Network Subsystem
Network Type	Jumbo Frame Gigabit Ethernet
Network Controller Desc.	integrated 10/100/1000 Ethernet controller
Number Networks	2 (N1,N2)
Number Network Controllers	4 (2 per controller)
Protocol Type	TCP

Switch Type Cisco 6509 (N1,N2)

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 8 (4 per controller)

Number of Disks 224

Number of Filesystems 2

File System Creation Ops default

File System Config 7 RAID-DP (Double Parity) groups of 16 disks each

Disk Controller integrated dual-channel QLogic ISP-2432 FC Controller (4MB RAM standard)

# of Controller Type 8 (4 per controller)

Number of Disks 28/28/28/28/28/28/28/28

Disk Type X278A 144GB 15K RPM FC-AL

File Systems on Disks F1/F1/F1/F1/F2/F2/F2/F2

Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators	24
Number of Processes per LG	12
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Supermicro SuperServer 6014H-i2

Number and Type Processors 2 x 3.4-GHz Intel Xeon

Memory Size 2 GB

Operating System Red Hat Enterprise Linux AS release 3 (2.4.21-40.ELsmp)

Compiler cc, used SFS97_R1 Precompiled Binaries

Compiler Options N/A

Network Type Integrated Dual Port Intel 82546GB Gigabit Ethernet

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1/2/../20 LG1 N1,N2 F1,F2 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1/2/../20	LG1	N1,N2	F1,F2	N/A

Other Notes

NetApp's embedded operating system processes NFS requests from the network layer without any NFS daemons, and uses non-volatile memory to improve performance.
All standard data protection features, including background RAID and media error scrubbing, software validated RAID checksumming, and double disk failure protection via double parity RAID (RAID-DP) were enabled during the test.
The tested system was a failover cluster comprised of two controllers joined by a cluster interconnect. The cluster is housed in a single chassis.
The cluster option was licensed and enabled.
Each controller was the owner of a single disk pool or "aggregate".
Each aggregate was composed of seven RAID-DP groups, each RAID-DP group was composed of 14 data disks and 2 parity disks.
Within each aggregate, a flexible volume (utilizing DataONTAP FlexVol (TM) technology) was created to hold the SFS filesystem for that controller.
The F1 filesystem was striped across the disks in the aggregate on the primary loops of the first controller. The F2 filesystem was striped across the disks in the aggregate on the primary loops of the second controller.
Each controller was the owner of one filesystem, but the disks in each aggregate were dual-attached so that, in the event of a fault, they could be controlled by the other controller via an alternate loop.
A separate flexible volume resided on the aggregate of each controller held the DataONTAP operating system and system files.
Each disk controller had two 4Gbit/s FC-AL ESH (Electronically Switched Hub) loops, one primary and one secondary. Only the primary loops were active.
All network ports were set to use jumbo frames (MTU=9000).
Server tunings:
- vol options vol1 no_atime_on 1 -- to disable access time update
- vol options vol1 minra 1 -- to minimize file read-ahead
NetApp is a registered trademark and "Data ONTAP", "FlexVol", and "WAFL" are trademarks of NetApp, Inc. in the United States and other countries.
All other trademarks belong to their respective owners and should be treated as such.

First published at SPEC.org on 10-Jun-2008
