SPECsfs97_R1.v3 Result

Sun Microsystems, Inc. :	Sun StorageTek 5320 NAS
SPECsfs97_R1.v3 =	28074 Ops/Sec (Overall Response Time = 2.24 msec)

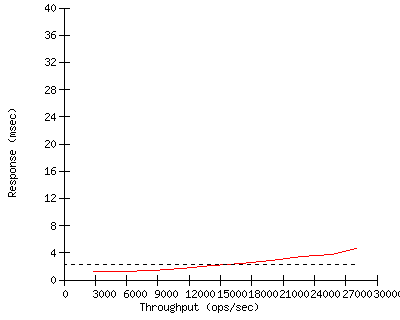

Performance

Throughput (ops/sec)	Response (msec)
2806	1.2
5626	1.3
8484	1.4
11289	1.7
14196	2.1
17019	2.5
19863	2.9
22799	3.4
25647	3.8
28074	4.6

Configuration

Server Configuration and Availability
Vendor	Sun Microsystems, Inc.
Hardware Available	July 2006
Software Available	July 2006
Date Tested	May 2006
SFS License Number	6
Licensee Locations	Irvine, CA

CPU, Memory and Power

Model Name Sun StorageTek 5320 NAS

Processor AMD 2.6GHz Opteron(TM) 252 processor

# of Processors 1 core, 1 chip, 1 core/chip

Primary Cache 64 KB I + 64 KB D on chip

Secondary Cache 1MB (I+D) on chip

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 4 GB

NVRAM Size 4 GB (2GB per 5320 RAID EU controller tray)

NVRAM Type Sun StorageTek 5320 RAID EU write cache

NVRAM Description Write-Back with battery backup

Server Software

OS Name and Version Sun StorageTek NAS OS Ver 4.12b20

Other Software N/A

File System N/A

NFS version 3

Server Tuning

Buffer Cache Size Default

# NFS Processes 120

Fileset Size 270.7 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	Integrated Gigabit Ethernet
Number Networks	1 (N1)
Number Network Controllers	1
Protocol Type	TCP

Switch Type Cisco Catalyst 4000

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 2 (Dual Port)

Number of Disks 160

Number of Filesystems 40 (F1-F40)

File System Creation Ops default

File System Config each R5 LUN houses (1) 252GB file system

Disk Controller 5320 RAID EU controller

# of Controller Type 1

Number of Disks 160

Disk Type Seagate ST314680F 146GB 10k RPM FC

File Systems on Disks F1-40 (Alternating accross each controller.)

Special Config Notes 40 3+1 RAID 5 LUNs( F1 is on first port of first controller,F2 is on first port of second controller, F3 is on second port of first controller, F4 is on second port of second controller, and etc.)

Load Generator (LG) Configuration
Number of Load Generators	15
Number of Processes per LG	8
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Intel Base

Number and Type Processors 2.4 GHz P4

Memory Size 1GB

Operating System Redhat 9.0

Compiler gcc (GCC) 3.2.2 20030222 (RedHat linux 3.2.2-5)

Compiler Options Default

Network Type Intel PCI Gigabit Ethernet Controller

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1,6,11 LG1 N1 /F1-8 N/A

2,7,12 LG1 N1 /F9-16 N/A

3,8,13 LG1 N1 /F17-24 N/A

4,9,14 LG1 N1 /F25-32 N/A

5,10,15 LG1 N1 /F33-40 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1,6,11	LG1	N1	/F1-8	N/A
2,7,12	LG1	N1	/F9-16	N/A
3,8,13	LG1	N1	/F17-24	N/A
4,9,14	LG1	N1	/F25-32	N/A
5,10,15	LG1	N1	/F33-40	N/A

Other Notes

OS Tuning:
Checkpoint disabled on all volumes: disabled via menu
NFS worker threads set to 120: set nfs.nworker 120
Disable system monitor: set sysmon.test.enable yes
Disable directory audit: =sfs2_no_dir_audit=1
Disable file system read ahead: =sfs2_nrax=0
Disable file system access time update: fsctl atime disable *
Maximum queued HBA commands limited to 128: set qlogic.isp.maxthrottle 128
The storage subsystem consists of (2) dual-controller Sun StorageTek
NAS 5320 RAID EU controller trays with cache mirroring disabled,
and (8) Sun StorageTek NAS 5320 RAID EU F expansion trays, totalling
160 drives. (40) 3+1 RAID 5 LUNs are configured.
Each 252GB file system is built from a
single segment, with each segment residing on one RAID5 LUN, (1) file
system per LUN.
Controller arrays provide battery-backed cache memory. In the
case that line power is lost, battery power is sufficient to
preserve cache contents for 72 hours minimum. If the batteries
are depleted to the extent that they cannot maintain memory for
72 hours, the controller will automatically switch to write-
through mode.

First published at SPEC.org on 09-May-2006

LG Type	LG1
LG Model	Intel Base
Number and Type Processors	2.4 GHz P4
Memory Size	1GB
Operating System	Redhat 9.0
Compiler	gcc (GCC) 3.2.2 20030222 (RedHat linux 3.2.2-5)
Compiler Options	Default
Network Type	Intel PCI Gigabit Ethernet Controller
