SPECsfs97_R1.v3 Result

Maxxan Systems Inc. :	SG100 Failover Cluster
SPECsfs97_R1.v3 =	22845 Ops/Sec (Overall Response Time = 3.97 msec)

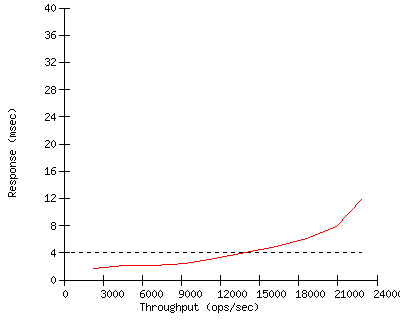

Performance

Throughput (ops/sec)	Response (msec)
2279	1.7
4619	2.1
6974	2.2
9282	2.5
11540	3.2
13912	4.0
16269	5.0
18632	6.1
20881	7.9
22845	11.9

Configuration

Server Configuration and Availability
Vendor	Maxxan Systems Inc.
Hardware Available	December 2002
Software Available	December 2002
Date Tested	January 2003
SFS License Number	2581
Licensee Locations	1975 Concourse Drive San Jose, CA 95131

CPU, Memory and Power

Model Name SG100 Failover Cluster

Processor 2.4 GHz Pentium IV Xeon

# of Processors 4 (2 per node)

Primary Cache 12K uops + 8KB D

Secondary Cache 512KB on-die

Other Cache N/A

UPS N/A

Other Hardware Brocade 2400 Silkworm Fibre Channel Switch

Memory Size 8 GB (4 GB per node)

NVRAM Size N/A

NVRAM Type N/A

NVRAM Description N/A

Server Software

OS Name and Version VxOS - based on Red Hat Linux 7.2

Other Software Veritas ServPoint NAS 1.2 for Linux

File System VxFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 128

Fileset Size 222.3 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	Intel 82546 GbEthernet controller
Number Networks	1 (N1)
Number Network Controllers	2 (1 per node)
Protocol Type	UDP

Switch Type Cisco 4000 Switch

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 10 (5 per node)

Number of Disks 98

Number of Filesystems 8 (F1-F8)

File System Creation Ops default

File System Config default

Disk Controller IDE Compact Flash

# of Controller Type 2 (1 per node)

Number of Disks 2 (1 per node)

Disk Type 1GB IBM microdrive

File Systems on Disks Operating System

Special Config Notes N/A

Disk Controller Qlogic 2312

# of Controller Type 8 (4 per node)

Number of Disks 96

Disk Type SEAGATE ST318451 18GB 15K rpm

File Systems on Disks F1-4, F5-8

Special Config Notes See "Other Notes"

Load Generator (LG) Configuration
Number of Load Generators	16
Number of Processes per LG	16
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Sun Netra X1

Number and Type Processors 500MHz UltraSPARC(tm) - IIe

Memory Size 512 MB

Operating System Solaris 8 Operating Environment

Compiler used SPEC supplied pre-compiled binaries

Compiler Options none

Network Type Integrated 10/100BASE-T

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1-16 LG1 1 /F1, /F5, /F2, /F6, /F3, /F7, /F4, /F8, /F1, /F5, /F2, /F6, /F3, /F7, /F4, /F8 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1-16	LG1	1	/F1, /F5, /F2, /F6, /F3, /F7, /F4, /F8, /F1, /F5, /F2, /F6, /F3, /F7, /F4, /F8	N/A

Other Notes

Each file system was configured on a Raid-0 volume with an 8k stripe unit size.
Each file system contained 12 disks.
Disks enclosed in a total of 10 Unisys JBOD Disk Array Enclosure (ESM702-JBD), with only 8 (out of 10) disks used in each of the last 2 enclosures.
This was accomplished by zoning the disks with a Brocade 2400 FC Switch.
The system benchmarked was a failover cluster of two nodes.
Each node was the primary controller of four file systems, but the
disks were dual attached and could be controlled by the other node in the event of a failure of the primary node.
The nodes were connected via 2 crossover cables to two 10/100Mb Ethernet ports available on each node.
These ports are separate from the GbE ports used by the clients. This provides signalling between the nodes, allowing for the detection of a node failure.
The F1-4 file systems were controlled by the first node.
The F5-8 file systems were controlled by the second node.
File systems were exported with the following options:
rw,sync,no_wdelay,insecure
The number of nfsd process was limited to 128 by using the rpc.nfsd command.
Because of a command behaviour issue, the user must first specify zero (0) processes and then repeat the command specifying 128 processes.
The following products are included:
VERITAS Volume Manager 3.2
VERITAS File System 3.4
The Qlogic 2312 controller used is a dual port controller. Though there are
5 controllers in each unit, for a total of 10 ports per node, only 4 ports per node were used, one port was used out of each controller, utilizing 4 controllers per node.
The Intel 82546 GbEthernet controller is a dual port controller, however only one port was used.

First published at SPEC.org on 15-Apr-2003

LG Type	LG1
LG Model	Sun Netra X1
Number and Type Processors	500MHz UltraSPARC(tm) - IIe
Memory Size	512 MB
Operating System	Solaris 8 Operating Environment
Compiler	used SPEC supplied pre-compiled binaries
Compiler Options	none
Network Type	Integrated 10/100BASE-T
