SPECsfs97_R1.v3 Result

EMC Corp. :	Celerra NS600 cluster (2FS, primary/primary, 4GB BE)
SPECsfs97_R1.v3 =	38459 Ops/Sec (Overall Response Time = 3.94 msec)

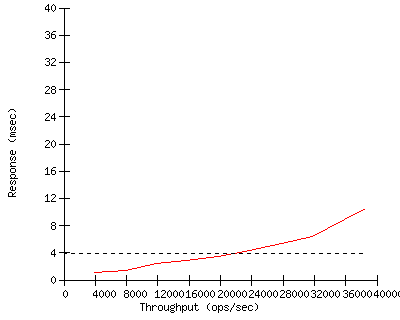

Performance

Throughput (ops/sec)	Response (msec)
3906	1.1
7914	1.4
11848	2.4
15709	2.8
19765	3.4
23739	4.3
27764	5.3
31769	6.4
35892	8.9
38459	10.3

Configuration

Server Configuration and Availability
Vendor	EMC Corp.
Hardware Available	January 2003
Software Available	March 2003
Date Tested	January 2003
SFS License Number	47
Licensee Locations	Hopkinton, MA

CPU, Memory and Power

Model Name Celerra NS600 cluster (2FS, primary/primary, 4GB BE)

Processor 2GHz Pentium 4

# of Processors 4 [2 per datamover]

Primary Cache 16KBI+16KBD on chip

Secondary Cache 512KB(I+D)

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 8 GB (4 GB per datamover)

NVRAM Size N/A

NVRAM Type N/A

NVRAM Description N/A

Server Software

OS Name and Version Dart 5.1.11.3007

Other Software Redhat Linux 7.2-1 on Control Station

File System N/A

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 32

Fileset Size 377.1 GB

Network Subsystem
Network Type	Jumbo Gigabit Ethernet
Network Controller Desc.	Broadcom Gigabit Ethernet Controller
Number Networks	1
Number Network Controllers	4 (2 per datamover)
Protocol Type	TCP

Switch Type Cisco 6500 GBit Switch (Jumbo)

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 4 (2 per datamover)

Number of Disks 135

Number of Filesystems 2

File System Creation Ops N/A

File System Config striped (64K element size), across 118 Raid 1 LUNs

Disk Controller Integrated 2 Gb Fibre Channel

# of Controller Type 4 (2 per datamover)

Number of Disks 135 (dual ported)

Disk Type Seagate ST373405 73GB 10K RPM

File Systems on Disks OS (5), UxFS Log (4), Filesystem F1 (118), Filesystem F1 (same 118), hot spare (8)

Special Config Notes 4GB Total Cache on backend. 1497 MB mirrored write cache per SP. See notes below.

Load Generator (LG) Configuration
Number of Load Generators	6
Number of Processes per LG	56
Biod Max Read Setting	3
Biod Max Write Setting	3

LG Type LG1

LG Model Dell 2550

Number and Type Processors 2 x 2.1 GHz Pentium 4

Memory Size 2 GB

Operating System Linux 7.2-1

Compiler gcc 2.96

Compiler Options -O

Network Type Broadcom Gbit NIC, MTU=9000

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 1 /s2_stripe, /s3_stripe, ...., /s2_stripe, /s3_stripe N/A

2 LG1 1 /s2_stripe, /s3_stripe, ...., /s2_stripe, /s3_stripe N/A

3 LG1 1 /s2_stripe, /s3_stripe, ...., /s2_stripe, /s3_stripe N/A

4 LG1 1 /s2_stripe, /s3_stripe, ...., /s2_stripe, /s3_stripe N/A

5 LG1 1 /s2_stripe, /s3_stripe, ...., /s2_stripe, /s3_stripe N/A

6 LG1 1 /s2_stripe, /s3_stripe, ...., /s2_stripe, /s3_stripe N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	1	/s2_stripe, /s3_stripe, ...., /s2_stripe, /s3_stripe	N/A
2	LG1	1	/s2_stripe, /s3_stripe, ...., /s2_stripe, /s3_stripe	N/A
3	LG1	1	/s2_stripe, /s3_stripe, ...., /s2_stripe, /s3_stripe	N/A
4	LG1	1	/s2_stripe, /s3_stripe, ...., /s2_stripe, /s3_stripe	N/A
5	LG1	1	/s2_stripe, /s3_stripe, ...., /s2_stripe, /s3_stripe	N/A
6	LG1	1	/s2_stripe, /s3_stripe, ...., /s2_stripe, /s3_stripe	N/A

Other Notes

param ufs inoBlkHashSize (inode block hash size)
param ufs inoHashTableSize (inode hash table size)
param ufs updateAccTime (disable access-time updates)
param nfs withoutCollector (enable NFS-to-CPU thread affinity)
param fcTach device_q_length (Fibre Channel HBA queue depth)
param fcTach per_target_q_length (Fiber Channel HBA per device queue depth)
param file initialize nodes (Number of inodes)
param dnlc (Number of dynamic name lookup cache entries)
param nfs start openfiles (Number of open files for NFS)
param nfsd (Number of NFS Daemons)
param bcm cge0 offload (offload IP checksum computation to the NIC)
param bcm cge3 offload (offload IP checksum computation to the NIC)
The ufs log was 2GB per datamover. The log was striped over 2 R1 LUNs.
Each filesystem is built on a stripe across all filesystem LUNs.
Storage array notes:
The storage array exposes luns across multiple fibre ports. Each
data lun is 146GB in size. Each physical data disk is configured
with 2 logical LUNs. Each filesystem is built with a 64K stripe
element size that spans across 118 Raid 1 LUNs and all 118 physical
disks. The net result is that each client can access each LUN.
The storage array has dual storage processor units that work as
an active-active failover pair. The mirrored write cache is backed up
with a battery unit capable of saving the write cache to disk prior to
a power failure. In the event of a storage array failure, the second
storage processor unit is capable of saving all state that was managed
by the first (and vise-versa), even with a simultaneous power failure.
When one of the storage processors or battery units are off-line, the
system turns off the write cache and writes directly to disk before
acknowledging any write operations.
The length of time the battery can support the retention of data is 2
minutes - that is sufficient to write all necessary data twice.
Storage processor A could have written 99% of its memory to disk and
then fail. In that case storage processor B has enough battery to
store its copy of A's data as well as its own.

First published at SPEC.org on 18-Feb-2003

LG Type	LG1
LG Model	Dell 2550
Number and Type Processors	2 x 2.1 GHz Pentium 4
Memory Size	2 GB
Operating System	Linux 7.2-1
Compiler	gcc 2.96
Compiler Options	-O
Network Type	Broadcom Gbit NIC, MTU=9000
