SPECsfs97.v2 Result

EMC Corporation :EMC Celerra File Server, Cluster Model 505
SPECsfs97.v2 =23687 Ops/Sec (Overall Response Time = 3.32 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
22771.2
45801.6
68901.9
92172.3
115342.7
138013.2
161143.9
184824.9
208416.1
231718.2
236878.7

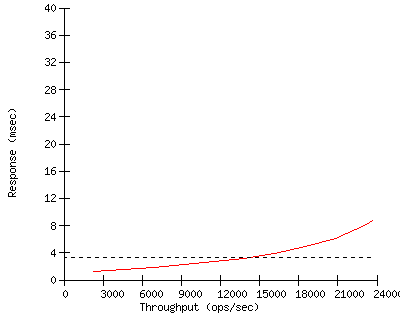

Performance Graph


Configuration

Server Configuration and Availability
Vendor EMC Corporation
Hardware Available April 1999
Software AvailableJuly 1999
Date TestedApril 1999
SFS License Number47
Licensee LocationsHopkinton, MA

CPU, Memory and Power
Model Name EMC Celerra File Server, Cluster Model 505
Processor 333 MHz Pentium II
# of Processors 6
Primary Cache 16KBI+16KBD on chip
Secondary Cache 512KB(I+D) off chip
Other Cache N/A
UPS N/A
Other Hardware 1 Control Station
Memory Size 3 GB (512 MB per data mover)
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionData Access in Real Time (DART) v1.2.21.991
Other Software UnixWare v2.1.3 on Control Station
File System UxFS
NFS version 2

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 96 per data mover
Fileset Size 227.2 GB

Network Subsystem
Network Type FDDI
Network Controller Desc. DEC FDDI Controller (DEFPA-AA)
Number Networks 2 (N1-N2)
Number Network Controllers12
Protocol Type UDP

Switch Type 1 DEC FDDI GIGAswitch (DEFGA-BA)
Bridge Type N/A
Hub Type 6 x DEC 900MX, 6 x Bay Networks 5904
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 4
Number of Disks 103
Number of Filesystems 48 (F1-F48)
File System Creation Opsdefault
File System Config See Other Notes

Disk Controller Symmetrix Model 3430, Ultra-Wide Differential SCSI
# of Controller Type 2
Number of Disks 55 (for the pair)
Disk Type Seagate Cheetah 18G
File Systems on Disks RootFS & server logs (7 disks); F1,F3...F47 (48 disks)
Special Config Notes 4GB/Symmetrix,version 5265.21.14 Rev 053-260-020 Rev A

Disk Controller Symmetrix Model 3430, Ultra-Wide Differential SCSI
# of Controller Type 2
Number of Disks 48 (for the pair)
Disk Type Seagate Cheetah 18G
File Systems on Disks File systems F2,F4...F48
Special Config Notes 4GB/Symmetrix,version 5265.21.14 Rev 053-260-020 Rev A

Load Generator (LG) Configuration
Number of Load Generators 12
Number of Processes per LG30
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model SPARC Ultra Enterprise 2
Number and Type Processors2 x 296 MHz UltraSPARC
Memory Size 256 MB
Operating System Solaris 2.5.1
Compiler SC4.0
Compiler Options M.solaris2
Network Type Sun Sbus FDDI

LG Type LG2
LG Model SPARC Ultra Enterprise 2
Number and Type Processors2 x 296 MHz UltraSPARC
Memory Size 256 MB
Operating System Solaris 2.6
Compiler SC4.0
Compiler Options M.solaris2
Network Type Sun Sbus FDDI

LG Type LG3
LG Model SPARC Ultra Enterprise 2
Number and Type Processors2 x 296 MHz UltraSPARC
Memory Size 512 MB
Operating System Solaris 2.5.1
Compiler SC4.0
Compiler Options M.solaris2
Network Type Sun Sbus FDDI

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1,F9,...F41,F2,F10,...F42,...F5,F13,...F45N/A
2LG3N1F6,F14,...F46,F7,F15,...F47,...F2,F10,...F42N/A
3LG2N1F3,F11,...F43,F4,F12,...F44,...F7,F15,...F47N/A
4LG1N1F8,F16,...F48,F1,F9,...F41,...F4,F12...F44N/A
5LG1N1F5,F13,...F45,F6,F14,...F46,...F1,F9...F41N/A
6LG1N1F2,F10,...F42,F3,F11,...F43,...F6,F14...F46N/A
7LG1N2F7,F15,...F47,F8,F16,...F48,...F3,F11...F43N/A
8LG1N2F4,F12,...F44,F5,F13,...F45,...F8,F16...F48N/A
9LG1N2F1,F9,...F41,F2,F10,...F42,...F5,F13,...F45N/A
10LG1N2F6,F14,...F46,F7,F15,...F47,...F2,F10,...F42N/A
11LG1N2F3,F11,...F43,F4,F12,...F44,...F7,F15,...F47N/A
12LG1N2F8,F16,...F48,F1,F9,...F41,...F4,F12...F44N/A


Other Notes


Fri Jul 23 16:50:38 1999

First published at SPEC.org on 18-May-1999
