SPECsfs97.v2 Result

Network Appliance, Inc. :NetApp F760 (UDP, 56x9GB FCAL, 2xGbE)
SPECsfs97.v2 =7462 Ops/Sec (Overall Response Time = 3.53 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
7331.9
14882.2
22162.6
29632.9
37043.2
44463.7
51874.0
58974.6
66585.3
74519.0
74629.4

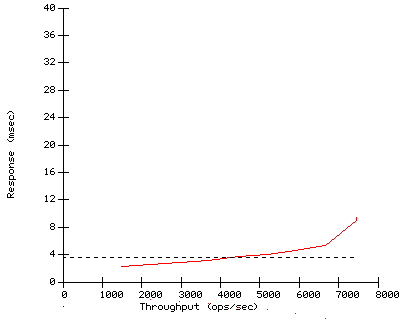

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available August 1998
Software AvailableAugust 1998
Date TestedJuly 1998
SFS License Number33
Licensee LocationsSanta Clara, CA

CPU, Memory and Power
Model Name NetApp F760 (UDP, 56x9GB FCAL, 2xGbE)
Processor 600MHz Alpha 21164A
# of Processors 1
Primary Cache 8 KB I + 8 KB D on chip
Secondary Cache 96 KB (I+D) on chip
Other Cache 2 MB (I+D) off chip
UPS none
Other Hardware none
Memory Size 1 GB
NVRAM Size 32 MB
NVRAM Type NVRAM SIMMs on PCI card
NVRAM Description6-month battery-backed shelf-life

Server Software
OS Name and VersionNetApp Release 5.1.1
Other Software none
File System WAFL
NFS version 2

Server Tuning
Buffer Cache Size dynamic
# NFS Processes see notes
Fileset Size 71.9 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. Gigabit PCI Adapter
Number Networks 2 (N1-N2)
Number Network Controllers2
Protocol Type UDP

Switch Type 1 Foundry Net FWS16 & 1 Alteon Net RPS700101
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 1
Number of Disks 56
Number of Filesystems 1
File System Creation Opsdefault
File System Config two RAID groups of 28 disks each

Disk Controller onboard Fibre Channel adapter
# of Controller Type 1
Number of Disks 56 (8x7-disk JBOD shelves)
Disk Type 9GB Seagate Barracuda (ST19171FC)
File Systems on Disks F1
Special Config Notes none

Load Generator (LG) Configuration
Number of Load Generators 6
Number of Processes per LG11
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Sun Microsystems Ultra 1/170
Number and Type Processors1 167-MHz UltraSPARC
Memory Size 256 MB
Operating System Solaris 2.5.1
Compiler gcc 2.6.3
Compiler Options see SPEC-supplied wrapper & makefile
Network Type hme

LG Type LG2
LG Model Sun Microsystems Ultra 1/170
Number and Type Processors1 167-MHz UltraSPARC
Memory Size 256 MB
Operating System Solaris 2.6
Compiler gcc 2.6.3
Compiler Options see SPEC-supplied wrapper & makefile
Network Type hme

LG Type LG3
LG Model Sun Microsystems Ultra 2
Number and Type Processors1 296-MHz UltraSPARC-II
Memory Size 256 MB
Operating System Solaris 2.6
Compiler gcc 2.6.3
Compiler Options see SPEC-supplied wrapper & makefile
Network Type hme

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1N/A
2,3LG3N1F1N/A
4,5,6LG2N2F1N/A


Other Notes


Wed Aug 19 16:57:55 1998

First published at SPEC.org on 20-Aug-1998
