| CPU2006 license: | 3 | Test date: | Apr-2016 |
|---|---|---|---|
| Test sponsor: | HPE | Hardware Availability: | Mar-2016 |
| Tested by: | HPE | Software Availability: | Nov-2015 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2660 v4 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 28 cores, 2 chips, 14 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 35 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 512 GB (16 x 32 GB 2Rx4 PC4-2400T-R) |
| Disk Subsystem: | 1 x 400 GB SAS SSD, RAID 0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.2, (Maipo) Kernel 3.10.0-327.el7.x86_64 |
| Compiler: | C/C++: Version 16.0.0.101 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.2 |

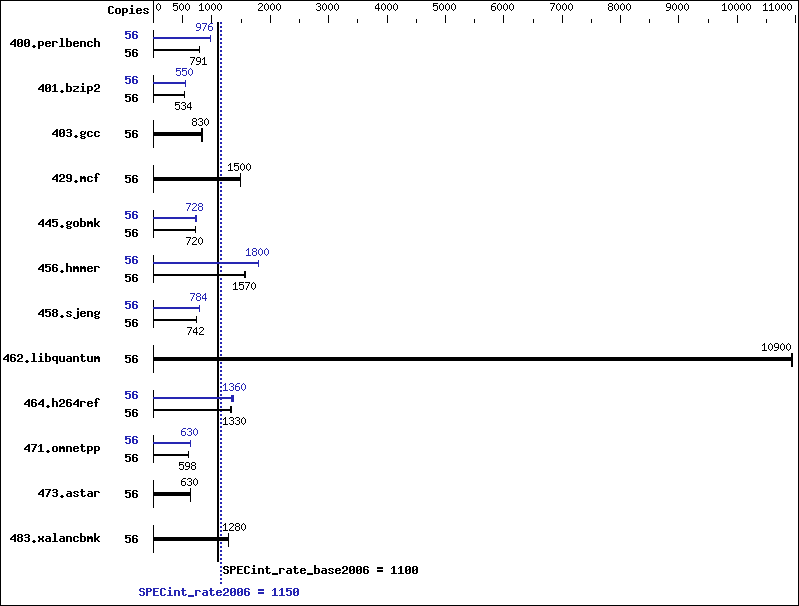

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 56 | 691 | 791 | 692 | 791 | 691 | 792 | 56 | 560 | 978 | 560 | 976 | 562 | 974 |
| 401.bzip2 | 56 | 1012 | 534 | 1015 | 532 | 1013 | 534 | 56 | 981 | 551 | 983 | 550 | 983 | 550 |
| 403.gcc | 56 | 543 | 830 | 543 | 831 | 546 | 826 | 56 | 543 | 830 | 543 | 831 | 546 | 826 |
| 429.mcf | 56 | 342 | 1490 | 341 | 1500 | 341 | 1500 | 56 | 342 | 1490 | 341 | 1500 | 341 | 1500 |
| 445.gobmk | 56 | 816 | 720 | 816 | 720 | 816 | 720 | 56 | 807 | 728 | 807 | 728 | 809 | 726 |
| 456.hmmer | 56 | 334 | 1570 | 332 | 1570 | 331 | 1580 | 56 | 290 | 1800 | 290 | 1800 | 290 | 1800 |
| 458.sjeng | 56 | 913 | 742 | 912 | 743 | 913 | 742 | 56 | 864 | 785 | 865 | 784 | 866 | 783 |
| 462.libquantum | 56 | 106 | 10900 | 106 | 10900 | 106 | 10900 | 56 | 106 | 10900 | 106 | 10900 | 106 | 10900 |
| 464.h264ref | 56 | 938 | 1320 | 929 | 1330 | 930 | 1330 | 56 | 910 | 1360 | 926 | 1340 | 908 | 1360 |
| 471.omnetpp | 56 | 585 | 598 | 586 | 597 | 585 | 598 | 56 | 556 | 630 | 556 | 629 | 556 | 630 |
| 473.astar | 56 | 622 | 632 | 624 | 630 | 625 | 629 | 56 | 622 | 632 | 624 | 630 | 625 | 629 |
| 483.xalancbmk | 56 | 301 | 1280 | 300 | 1290 | 301 | 1280 | 56 | 301 | 1280 | 300 | 1290 | 301 | 1280 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Platform Notes
BIOS Configuration: HP Power Profile set to Custom HP Power Regulator to HP Static High Performance Mode Minimum Processor Idle Power Core C-State set to C1E State Minimum Processor Idle Power Package C-State set to No Package State QPI Snoop Configuration set to Cluster on Die Collaborative Power Control set to Disabled Thermal Configuration set to Maximum Cooling Processor Power and Utilization Monitoring set to Disabled Memory Refresh Rate set to 1x Refresh Sysinfo program /home/intel_binary/cpu2006/config/sysinfo.rev6914 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1 running on DL380Gen9allbin Mon Apr 25 10:09:30 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2660 v4@ 2.00GHz 2 "physical id"s (chips) 56 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 14 siblings : 28 physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 cache size : 17920 KB From /proc/meminfo MemTotal: 528063216 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* os-release: NAME="Red Hat Enterprise Linux Server" VERSION="7.2 (Maipo)" ID="rhel" ID_LIKE="fedora" VERSION_ID="7.2" PRETTY_NAME="Red Hat Enterprise Linux Server 7.2 (Maipo)" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:redhat:enterprise_linux:7.2:GA:server" redhat-release: Red Hat Enterprise Linux Server release 7.2 (Maipo) system-release: Red Hat Enterprise Linux Server release 7.2 (Maipo) system-release-cpe: cpe:/o:redhat:enterprise_linux:7.2:ga:server uname -a: Linux DL380Gen9allbin 3.10.0-327.el7.x86_64 #1 SMP Thu Oct 29 17:29:29 EDT 2015 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Apr 25 10:00 SPEC is set to: /home/intel_binary/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda5 xfs 318G 90G 229G 29% /home Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS HP P89 03/23/2016 Memory: 8x UNKNOWN NOT AVAILABLE 16x UNKNOWN NOT AVAILABLE 32 GB 2 rank 2400 MHz (End of data from sysinfo program) Regarding the sysinfo display about the memory installed, the correct amount of memory is 512 GB and the dmidecode description should have one line reading as: 16x UNKNOWN NOT AVAILABLE 32 GB 2 rank 2400 MHz
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh" Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB memory using RedHat EL 7.1
Base Compiler Invocation
C benchmarks:
| icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
C++ benchmarks:
| icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
Base Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -D_FILE_OFFSET_BITS=64 |
| 403.gcc: | -D_FILE_OFFSET_BITS=64 |
| 429.mcf: | -D_FILE_OFFSET_BITS=64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -D_FILE_OFFSET_BITS=64 |
| 458.sjeng: | -D_FILE_OFFSET_BITS=64 |
| 462.libquantum: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -D_FILE_OFFSET_BITS=64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -D_FILE_OFFSET_BITS=64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
Peak Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 403.gcc: | -D_FILE_OFFSET_BITS=64 |
| 429.mcf: | -D_FILE_OFFSET_BITS=64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 458.sjeng: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 462.libquantum: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -D_FILE_OFFSET_BITS=64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -D_FILE_OFFSET_BITS=64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
