| CPU2006 license: | 11 | Test date: | Nov-2010 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Mar-2010 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5503 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (12 x 2 GB 2Rx8 PC3-10600R, ECC, running at 800 MHz and CL6) |
| Disk Subsystem: | 1 x 73 GB SATA, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

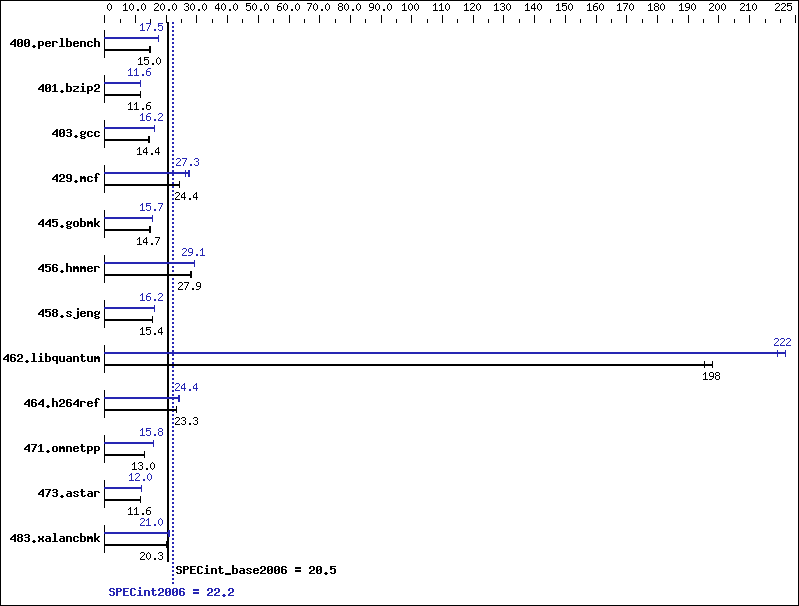

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 663 | 14.7 | 653 | 15.0 | 653 | 15.0 | 558 | 17.5 | 558 | 17.5 | 559 | 17.5 |
| 401.bzip2 | 831 | 11.6 | 834 | 11.6 | 830 | 11.6 | 833 | 11.6 | 830 | 11.6 | 836 | 11.5 |
| 403.gcc | 555 | 14.5 | 559 | 14.4 | 557 | 14.4 | 496 | 16.2 | 497 | 16.2 | 496 | 16.2 |
| 429.mcf | 373 | 24.5 | 374 | 24.4 | 374 | 24.4 | 334 | 27.3 | 332 | 27.4 | 345 | 26.4 |
| 445.gobmk | 714 | 14.7 | 711 | 14.8 | 716 | 14.7 | 670 | 15.7 | 669 | 15.7 | 670 | 15.7 |
| 456.hmmer | 330 | 28.3 | 334 | 27.9 | 334 | 27.9 | 321 | 29.1 | 320 | 29.1 | 321 | 29.1 |
| 458.sjeng | 784 | 15.4 | 786 | 15.4 | 786 | 15.4 | 748 | 16.2 | 749 | 16.2 | 747 | 16.2 |
| 462.libquantum | 105 | 198 | 106 | 195 | 105 | 198 | 93.4 | 222 | 94.6 | 219 | 93.4 | 222 |
| 464.h264ref | 951 | 23.3 | 951 | 23.3 | 950 | 23.3 | 905 | 24.4 | 918 | 24.1 | 906 | 24.4 |
| 471.omnetpp | 480 | 13.0 | 480 | 13.0 | 479 | 13.0 | 395 | 15.8 | 396 | 15.8 | 395 | 15.8 |
| 473.astar | 604 | 11.6 | 603 | 11.6 | 602 | 11.7 | 584 | 12.0 | 591 | 11.9 | 585 | 12.0 |
| 483.xalancbmk | 343 | 20.1 | 336 | 20.5 | 339 | 20.3 | 330 | 20.9 | 328 | 21.0 | 328 | 21.0 |
Platform Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 Power C-states enabled in BIOS OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
