SPEC® OMPG2012 Result

Copyright 2012-2023 Standard Performance Evaluation Corporation

xFusion

SPECompG_base2012 = 61.0

FusionServer 2288H V7 (Intel Xeon Platinum 8480+,
2.0 GHz)

SPECompG_peak2012 = Not Run
OMP2012 license: 6488 Test date: Dec-2022
Test sponsor: xFusion Hardware Availability: Jan-2023
Tested by: xFusion Software Availability: May-2022

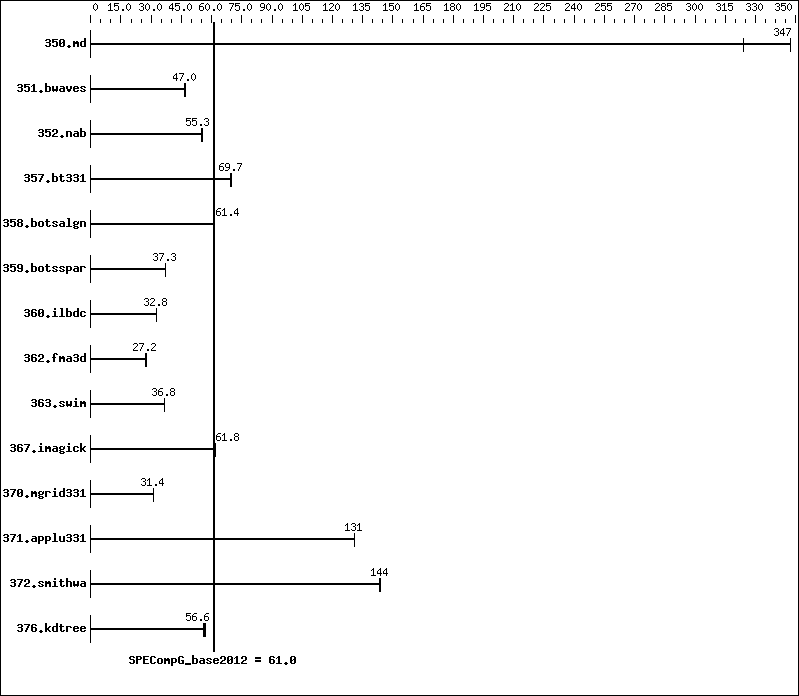

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8480+
CPU Characteristics: Intel Turbo Boost Technology up to 3.50 GHz
CPU MHz: 2000
CPU MHz Maximum: 3800
FPU: Integrated
CPU(s) enabled: 112 cores, 2 chips, 56 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 Chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
L3 Cache: 105 MB I+D on chip per chip
Other Cache: None
Memory: 512 GB (16 x 32 GB 2Rx8 PC5-4800B-R)
Disk Subsystem: 1 x 1920 GB SATA SSD
Other Hardware: --
Base Threads Run: 224
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: Red Hat Enterprise Linux Server release 9.0
Compiler: C/C++: Version 2021.6.0.0 of Intel oneAPI
DPC++/C++
Compiler for Linux Build 20220226;
Fortran: Version 2021.6.0.0 of Intel Fortran
Compiler for Linux Build 20220226;
Auto Parallel: No
File System: Linux ext4
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 224 14.3  324    13.3  347    13.3  347
351.bwaves 224 96.9  46.8  96.3  47.0  95.8  47.3
352.nab 224 70.3  55.3  70.8  54.9  70.4  55.3
357.bt331 224 67.8  69.9  68.2  69.5  68.0  69.7
358.botsalgn 224 70.9  61.4  70.9  61.4  70.9  61.4
359.botsspar 224 141    37.3  141    37.3  141    37.2
360.ilbdc 224 108    32.8  109    32.8  109    32.7
362.fma3d 224 137    27.7  140    27.0  140    27.2
363.swim 224 123    36.8  123    36.7  123    36.8
367.imagick 224 113    62.1  115    61.4  114    61.8
370.mgrid331 224 141    31.3  141    31.4  141    31.4
371.applu331 224 46.3  131    46.2  131    46.2  131
372.smithwa 224 37.3  144    37.3  144    37.3  144
376.kdtree 224 80.5  55.9  79.5  56.6  79.3  56.8

Platform Notes

 Sysinfo program /home/specomp/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on localhost.localdomain Tue Dec 13 22:02:51 2022

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8480+
       2 "physical id"s (chips)
       224 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 56
       siblings  : 112
       physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55
       physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55
    cache size : 107520 KB

 From /proc/meminfo
    MemTotal:       527415832 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux"
       VERSION="9.0 (Plow)"
       ID="rhel"
       ID_LIKE="fedora"
       VERSION_ID="9.0"
       PLATFORM_ID="platform:el9"
       PRETTY_NAME="Red Hat Enterprise Linux 9.0 (Plow)"
       ANSI_COLOR="0;31"
    redhat-release: Red Hat Enterprise Linux release 9.0 (Plow)
    system-release: Red Hat Enterprise Linux release 9.0 (Plow)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:9::baseos

 uname -a:
    Linux localhost.localdomain 5.14.0-70.13.1.el9_0.x86_64 #1 SMP PREEMPT Thu
    Apr 14 12:42:38 EDT 2022 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Dec 13 21:23

 SPEC is set to: /home/specomp
    Filesystem            Type  Size  Used Avail Use% Mounted on
    /dev/mapper/rhel-home xfs   1.7T   70G  1.7T   5% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS XFUSION 2.00.35 11/30/2022
   Memory:
    16x Samsung M321R4GA3BB6-CQKDG 32 GB 2 rank 4800 MT/s

 (End of data from sysinfo program)

 (End of data from sysinfo program)

General Notes

 ========================================================================
 General base OMP Library Settings：
   ENV_KMP_AFFINITY=compact,1

 BIOS settings notes:
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,0,verbose

 ========================================================================
 Per benchmark peak OMP Library Settings

 ========================================================================
 System settings notes:
   Intel Turbo Boost Technology (Turbo)  : Disabled

 ========================================================================
 General OMP Library Settings
   KMP_LIBRARY=turnaround
   KMP_STACKSIZE=292M
   KMP_BLOCKTIME=infinite
   OMP_DYNAMIC=FALSE
   OMP_NESTED=FALSE
   OMP_SCHEDULE=static

 Spectre and Meltdown
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
 is mitigated in the system as tested and documented.
 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 367.imagick:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 370.mgrid331:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 370.mgrid331:peak:

Base Compiler Invocation

C benchmarks:

 icx

C++ benchmarks:

 icpx

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -L/usr/local/lib   -Wl,--rpath=/usr/local/lib   -ljemalloc

C++ benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -L/usr/local/lib   -Wl,--rpath=/usr/local/lib   -ljemalloc

Fortran benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -L/usr/local/lib   -Wl,--rpath=/usr/local/lib   -ljemalloc   -align all

The flags files that were used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic19-linux64.20230111.html,
http://www.spec.org/omp2012/flags/xFusion-Platform-Settings-SPR-V1.0.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/omp2012/flags/Intel-ic19-linux64.20230111.xml,
http://www.spec.org/omp2012/flags/xFusion-Platform-Settings-SPR-V1.0.xml.

SPEC is a registered trademark of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2012-2023 Standard Performance Evaluation Corporation
Tested with SPEC OMP2012 v1.1.
Report generated on Wed Jan 11 14:04:09 2023 by SPEC OMP2012 HTML formatter v541.
Originally published on 11 January 2023.
