SPEC® OMPG2012 Result

Copyright 2012-2019 Standard Performance Evaluation Corporation

Intel

SPECompG_base2012 = 32.6

Intel Server System S9248WK1HLC (2 x Intel Xeon
9242
Platinum, 2.3 Ghz)

SPECompG_peak2012 = 38.5

OMP2012 license: 13 Test date: Jun-2019
Test sponsor: Intel Hardware Availability: Jun-2019
Tested by: Intel Software Availability: Jan-2019

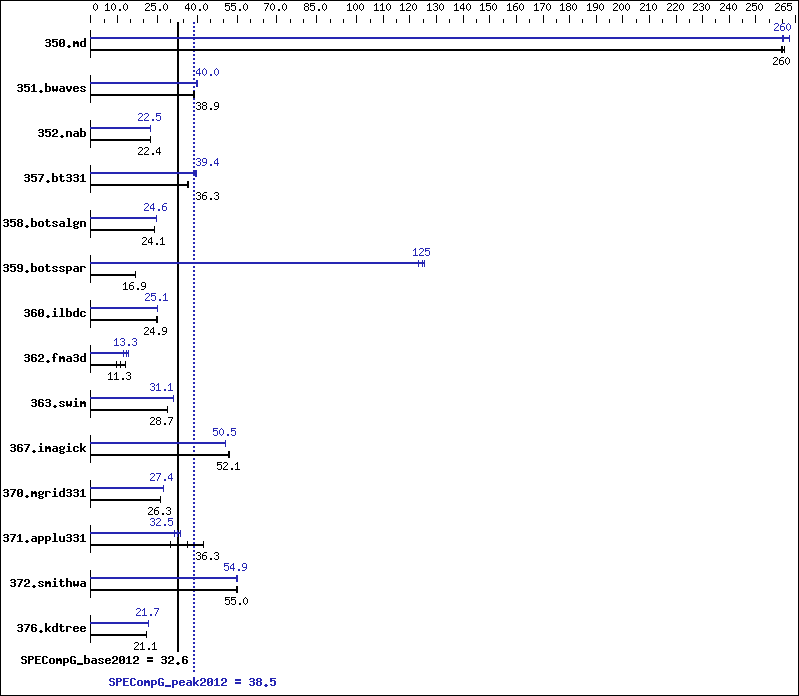

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 9242
CPU Characteristics: Intel Turbo Boost Technology : Disabled
CPU MHz: 2200
CPU MHz Maximum: 2200
FPU: Integrated
CPU(s) enabled: 96 cores, 2 chips, 48 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 71.5 MB I+D on chip per chip, 35.75 MB shared /
24 cores
Other Cache: None
Memory: 384 GB (24 x 16 GB 2Rx8 DDR4-2993Y-R)
Disk Subsystem: N/A
Other Hardware: --
Base Threads Run: 192
Minimum Peak Threads: 96
Maximum Peak Threads: 192
Software
Operating System: CentOS Linux release 7.6.1810 (Core)
Compiler: C/C++/Fortran: Version 19.0.2.187 of Intel
Composer XE for Linux
Auto Parallel: No
File System: ext3
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 192 17.8  260     17.8  260    17.8  261    192 17.6  263    17.8  260    17.8  260
351.bwaves 192 117    38.8   116    39.0  116    38.9  96 113    40.0  113    40.0  114    39.8
352.nab 192 174    22.4   174    22.4  173    22.5  192 173    22.5  173    22.5  174    22.4
357.bt331 192 131    36.3   130    36.3  130    36.6  192 119    39.7  120    39.4  120    39.4
358.botsalgn 192 180    24.1   180    24.1  180    24.1  192 177    24.6  177    24.6  177    24.6
359.botsspar 192 311    16.9   309    17.0  314    16.7  96 42.6  123    41.8  126    42.1  125
360.ilbdc 192 142    25.0   143    24.9  144    24.8  192 142    25.1  142    25.1  141    25.2
362.fma3d 192 399    9.52  336    11.3  288    13.2  192 270    14.1  286    13.3  305    12.5
363.swim 192 156    29.0   158    28.7  158    28.7  96 146    31.1  146    31.1  145    31.2
367.imagick 192 135    52.1   135    52.1  135    51.9  96 139    50.5  139    50.5  139    50.6
370.mgrid331 192 168    26.3   168    26.3  168    26.3  96 161    27.4  161    27.4  161    27.5
371.applu331 192 201    30.1   167    36.3  143    42.4  192 186    32.5  194    31.3  179    33.8
372.smithwa 192 97.4  55.0   97.9  54.7  97.3  55.1  192 97.7  54.9  97.4  55.1  97.9  54.7
376.kdtree 192 213    21.1   213    21.1  213    21.1  192 207    21.7  207    21.7  207    21.8

Platform Notes

 The system used pre-release CPUs running at 2200 MHz instead of the nominal base frequency (2300 MHz).
 Sysinfo program /nfs/pdx/home/aknyaze1/OMP2012/1.1/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on ortce-clxap2 Tue Jun  4 12:33:34 2019

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Genuine Intel(R) CPU 0000%@
       4 "physical id"s (chips)
       192 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 24
       siblings  : 48
       physical 0: cores 0 1 2 3 4 5 6 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 1: cores 0 1 2 3 4 5 6 8 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 2: cores 0 1 2 3 4 5 6 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 3: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 16 17 18 19 20 21 25 26 27
       28 29
    cache size : 36608 KB

 From /proc/meminfo
    MemTotal:       394796308 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    centos-release: CentOS Linux release 7.6.1810 (Core)
    centos-release-upstream: Derived from Red Hat Enterprise Linux 7.6 (Source)
    os-release:
       NAME="CentOS Linux"
       VERSION="7 (Core)"
       ID="centos"
       ID_LIKE="rhel fedora"
       VERSION_ID="7"
       PRETTY_NAME="CentOS Linux 7 (Core)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:centos:centos:7"
    redhat-release: CentOS Linux release 7.6.1810 (Core)
    system-release: CentOS Linux release 7.6.1810 (Core)
    system-release-cpe: cpe:/o:centos:centos:7

 uname -a:
    Linux ortce-clxap2 3.10.0-957.10.1.el7.x86_64 #1 SMP Mon Mar 18 15:06:45 UTC
    2019 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jun 4 12:22

 SPEC is set to: /nfs/pdx/home/aknyaze1/OMP2012/1.1
    Filesystem                            Type  Size  Used Avail Use% Mounted on
    cthor-fs1.jf.intel.com:/home/aknyaze1 nfs    29T   16T   13T  55%
    /nfs/pdx/home/aknyaze1
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.


 (End of data from sysinfo program)

General Notes

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,0,granularity=fine,verbose

 ========================================================================
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,0,granularity=fine,verbose

 ========================================================================
 Per benchmark peak OMP Library Settings

 ========================================================================
 System settings notes:
   Intel Turbo Boost Technology (Turbo)  : Disabled

 ========================================================================
 General OMP Library Settings
   KMP_LIBRARY=turnaround
   KMP_STACKSIZE=292M
   KMP_BLOCKTIME=infinite
   OMP_DYNAMIC=FALSE
   OMP_NESTED=FALSE
   OMP_SCHEDULE=static

 Spectre and Meltdown
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
 is mitigated in the system as tested and documented.
 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1,granularity=fine,verbose

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1,granularity=fine,verbose

 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1,granularity=fine,verbose

 ========================================================================
 367.imagick:peak:
   ENV_KMP_AFFINITY=compact,1,granularity=fine,verbose

 ========================================================================
 370.mgrid331:peak:
   ENV_KMP_AFFINITY=compact,1,granularity=fine,verbose

 ========================================================================
 Compiler: Fortran: Version 19.0.3.199 of Intel Composer XE for Linux

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0

C++ benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0

Fortran benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0   -align all

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks (except as noted below):

 ifort
371.applu331:  /opt/intel/compilers_and_libraries_2019.3.199/linux/bin/intel64/ifort

Peak Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

352.nab:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0
358.botsalgn:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt
359.botsspar:  Same as 358.botsalgn
367.imagick:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo
372.smithwa:  Same as 352.nab

C++ benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -qopt-prefetch=1

Fortran benchmarks:

350.md:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0   -align all
351.bwaves:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=2   -align all
357.bt331:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=1   -align all
360.ilbdc:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=4   -align all
362.fma3d:  Same as 350.md
363.swim:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -fno-alias   -qopt-malloc-options=3   -ipo    -qopt-prefetch=0   -align all
370.mgrid331:  -O3   -qopenmp   -xCORE-AVX2   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -fno-alias   -qopt-malloc-options=3   -ipo    -qopt-prefetch=0   -align all
371.applu331:  Same as 350.md

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic19-linux64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic19-linux64.xml.
