SPEC® OMPG2012 Result

Copyright 2012-2017 Standard Performance Evaluation Corporation

Cisco Systems

SPECompG_base2012 = 39.0

Cisco UCS C480 M5 (Intel Xeon Platinum 8180,
2.50
GHz)

SPECompG_peak2012 = Not Run

OMP2012 license: 9019 Test date: Jun-2017
Test sponsor: Cisco Systems Hardware Availability: Aug-2017
Tested by: Cisco Systems Software Availability: Sep-2017

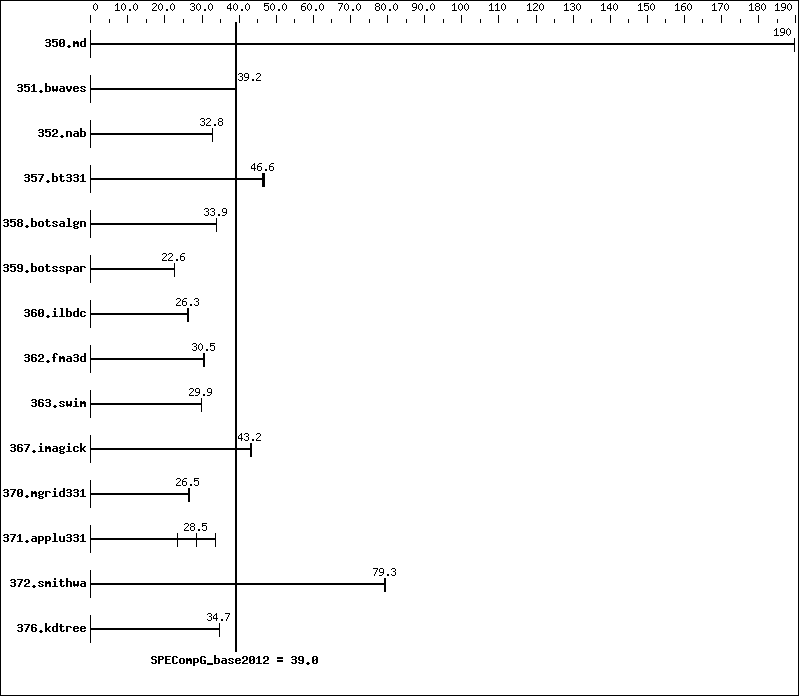

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8180
CPU Characteristics: Intel Turbo Boost Technology up to 3.80 GHz
CPU MHz: 2500
CPU MHz Maximum: 3800
FPU: Integrated
CPU(s) enabled: 112 cores, 4 chips, 28 cores/chip, 2 threads/core
CPU(s) orderable: 2,4 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
Other Cache: None
Memory: 768 GB (48 x 16 GB 2Rx4 PC4-2666V-R)
Disk Subsystem: 1 X 400 GB SSD SAS
Other Hardware: None
Base Threads Run: 224
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: SUSE Linux Enterprise Server 12 SP2 (x86_64)
Compiler: C/C++/Fortran: Version 18.0.0.082 of Intel
Composer
Beta for Linux Build 20170510
Auto Parallel: No
File System: xfs
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 224 24.4  190    24.4  190    24.4  190
351.bwaves 224 116    39.0  115    39.2  115    39.3
352.nab 224 119    32.8  119    32.7  119    32.8
357.bt331 224 103    46.2  101    46.8  102    46.6
358.botsalgn 224 128    33.9  128    33.9  128    33.9
359.botsspar 224 232    22.7  233    22.6  232    22.6
360.ilbdc 224 136    26.3  135    26.4  137    26.1
362.fma3d 224 124    30.5  125    30.5  124    30.6
363.swim 224 152    29.9  151    30.0  152    29.8
367.imagick 224 164    43.0  163    43.2  163    43.2
370.mgrid331 224 167    26.5  167    26.5  167    26.4
371.applu331 224 213    28.5  181    33.5  260    23.4
372.smithwa 224 67.6  79.3  67.6  79.3  67.7  79.2
376.kdtree 224 130    34.7  130    34.7  130    34.7

Platform Notes

 Sysinfo program /opt/omp2012/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on linux-wjnw Tue Jun 20 22:49:25 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8180 CPU @ 2.50GHz
       4 "physical id"s (chips)
       224 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 28
       siblings  : 56
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 2: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 3: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
    cache size : 39424 KB

 From /proc/meminfo
    MemTotal:       791190864 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 2
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP2"
       VERSION_ID="12.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp2"

 uname -a:
    Linux linux-wjnw 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016
    (9464f67) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jun 20 20:45

 SPEC is set to: /opt/omp2012
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda2      xfs   321G   60G  262G  19% /

 Additional information from dmidecode:
   BIOS Cisco Systems, Inc. C480M5.3.1.0.272.0613172154 06/13/2017
   Memory:
    48x   16 GB
    48x 0xCE00 M393A2G40EB2-CTD 16 GB 2666 MHz 2 rank

 (End of data from sysinfo program)

General Notes

 ========================================================================
 BIOS settings notes:
   Transparent Huge Pages enabled with:
   echo always > /sys/kernel/mm/transparent_hugepage/enabled
 BIOS settings notes:
   Intel Turbo Boost Technology (Turbo)  : Enabled
   CPU performance set to Enterprise
   Power Performance Tuning set to OS
   SNC set to Disabled
   IMC Interleaving set to Auto
 General OMP Library Settings
   ENV_KMP_LIBRARY=turnaround
   ENV_OMP_SCHEDULE=static
   ENV_KMP_BLOCKTIME=200
   ENV_KMP_STACKSIZE=16G
   ENV_OMP_DYNAMIC=FALSE
   ENV_OMP_NESTED=FALSE

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,1
 ========================================================================

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -qopenmp   -ipo    -xHOST   -ansi-alias

C++ benchmarks:

 -O3   -qopenmp   -ipo    -xHOST   -ansi-alias

Fortran benchmarks:

 -O3   -qopenmp   -ipo    -xHOST   -align array64byte

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20170711.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20170711.00.xml.
