SPEC® OMPG2012 Result

HP (Test Sponsor: Indiana University)

SPECompG_base2012 = 4.74

SPECompG_energy_base2012 = 1.60

HP Proliant DL580 G7 Server Series, Intel Xeon
L7555, 1.87 GHz

SPECompG_peak2012 = Not Run

SPECompG_energy_peak2012 = --

OMP2012 license:	3440A	Test date:	May-2014
Test sponsor:	Indiana University	Hardware Availability:	Jun-2010
Tested by:	Indiana University	Software Availability:	Aug-2012

Hardware
CPU Name:	Intel Xeon L7555
CPU Characteristics:	Intel Turbo Boost Technology up to 2.533GHz, Hyper-Threading off
CPU MHz:	1866
CPU MHz Maximum:	2533
FPU:	Integrated
CPU(s) enabled:	32 cores, 4 chips, 8 cores/chip
CPU(s) orderable:	1-4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	24 MB I+D on chip per chip, 24 MB shared / 8 cores
Other Cache:	None
Memory:	512 GB (64 x 8 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem:	Two 500 GB 7200 RPM 2.5" SAS hard drives, in RAID 1 mirror
Other Hardware:	None
Base Threads Run:	32
Minimum Peak Threads:	--
Maximum Peak Threads:	--

Software
Operating System:	RHEL6.3 (x86_64) 2.6.32-279.5.2.el6 Kernel 2.6.32-279.5.2.el6 2.6.32-431.11.2.el6.x86_64
Compiler:	C/C++/Fortran: Version 13.0.0.079 of Intel Composer XE 2013 for Linux Build 20120731
Auto Parallel:	No
File System:	NFSv3 (IBM N5500 NAS) over Gb ethernet
System State:	Multi-user, run level 3
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
Other Software:	None

Power
Power Supply:	4 x 1200 W
Power Supply Details:	HP 578322-B21 (1200 Watt Hot Plug)
Max. Power (W):	1050.67
Idle Power (W):	677.18
Min. Temperature (C):	22.25

Power Analyzer
Power Analyzer:	Power Analyzer
Hardware Vendor:	ZES Zimmer
Model:	LMG450
Serial Number:	11911308
Input Connection:	RS232 via USB-adapter
Metrology Institute:	PTB (Physikalisch Technische Bundesanstalt)
Calibration By:	ZES Zimmer
Calibration Label:	0431191001
Calibration Date:	08.26.2013
PTDaemon Version:	1.6.2 (372e138a; 2013-12-04)
Setup Description:	--
Current Ranges Used:	1.2A, 2.5A
Voltage Range Used:	250V

Temperature Meter
Temperature Meter:	Temperature Meter
Hardware Vendor:	Digi
Model:	Watchport/H
Serial Number:	--
Input Connection:	USB
PTDaemon Version:	1.6.2 (372e138a; 2013-12-04)
Setup Description:	positioned in front of intake fan

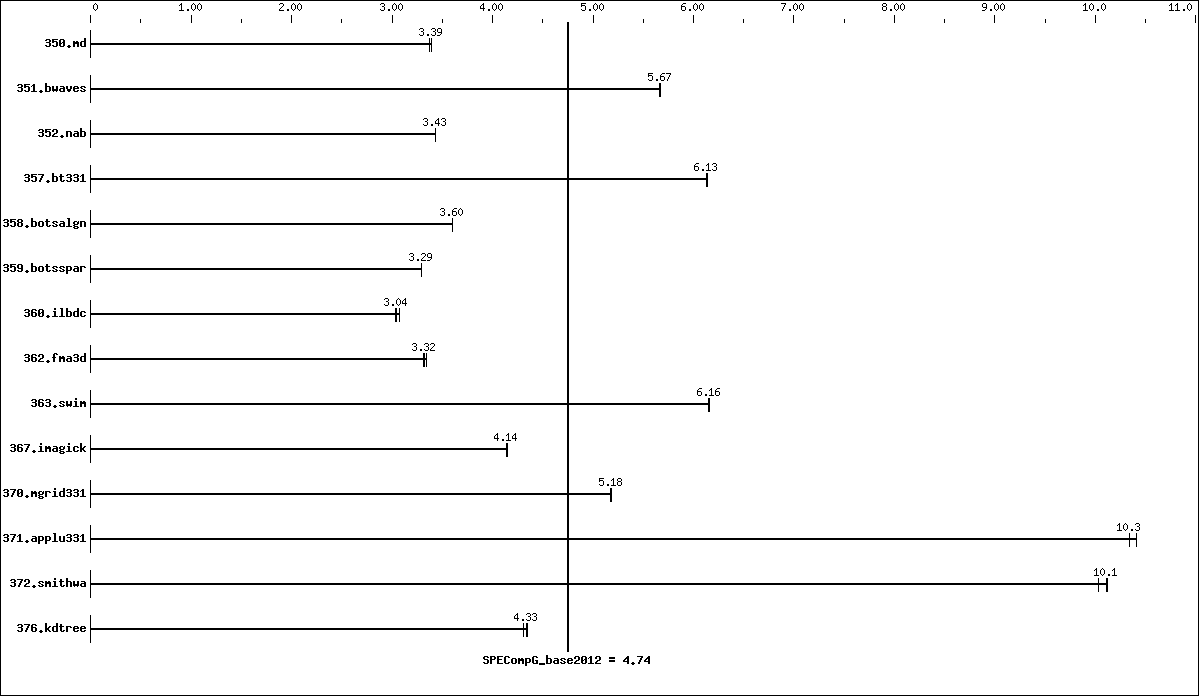

Base Results Table

Benchmark	Threads	Seconds	Ratio	Energy (kJ)	Maximum Power	Average Power	Energy Ratio	Seconds	Ratio	Energy (kJ)	Maximum Power	Average Power	Energy Ratio	Seconds	Ratio	Energy (kJ)	Maximum Power	Average Power	Energy Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md	32	1365	3.39	1090	811	801	1.15	1371	3.38	1100	809	801	1.14	1364	3.39	1090	811	801	1.15
351.bwaves	32	799	5.67	779	1020	975	1.72	799	5.67	779	1020	975	1.72	799	5.67	779	1020	975	1.72
352.nab	32	1133	3.43	924	830	816	1.17	1133	3.43	924	831	816	1.17	1134	3.43	925	830	816	1.17
357.bt331	32	773	6.13	710	1040	919	2.06	773	6.13	710	1040	919	2.06	772	6.14	709	1040	919	2.06
358.botsalgn	32	1208	3.60	1010	843	834	1.27	1208	3.60	1010	842	835	1.27	1208	3.60	1010	840	835	1.27
359.botsspar	32	1596	3.29	1350	854	843	1.17	1597	3.29	1350	854	843	1.17	1595	3.29	1350	854	844	1.17
360.ilbdc	32	1159	3.07	1050	934	906	1.05	1170	3.04	1060	934	905	1.04	1174	3.03	1060	941	905	1.04
362.fma3d	32	1147	3.31	1000	930	872	1.13	1143	3.32	997	923	872	1.13	1137	3.34	992	929	872	1.14
363.swim	32	736	6.16	768	1050	1040	1.80	736	6.15	769	1050	1040	1.80	735	6.16	768	1050	1040	1.80
367.imagick	32	1694	4.15	1390	853	820	1.55	1700	4.13	1400	854	821	1.54	1698	4.14	1390	855	820	1.55
370.mgrid331	32	853	5.18	892	1050	1050	1.53	854	5.18	893	1050	1050	1.53	853	5.18	892	1050	1050	1.53
371.applu331	32	586	10.3	556	1010	949	3.34	582	10.4	552	1010	948	3.37	586	10.3	556	1010	948	3.35
372.smithwa	32	530	10.1	465	891	877	3.94	534	10.0	471	893	882	3.89	529	10.1	464	889	877	3.95
376.kdtree	32	1036	4.35	882	857	852	1.57	1038	4.33	887	859	854	1.56	1043	4.31	887	856	850	1.56

Platform Notes

 Sysinfo program /N/soft/mason/omp2012-1.0/omp_runs/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on c1 Mon May 19 15:52:45 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU L7555 @ 1.87GHz
       4 "physical id"s (chips)
       32 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 8
       siblings  : 8
       physical 0: cores 0 1 2 3 8 9 10 11
       physical 1: cores 0 1 2 3 8 9 10 11
       physical 2: cores 0 1 2 3 8 9 10 11
       physical 3: cores 0 1 2 3 8 9 10 11
    cache size : 24576 KB

 From /proc/meminfo
    MemTotal:       529427584 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux c1 2.6.32-431.11.2.el6.x86_64 #1 SMP Mon Mar 3 13:32:45 EST 2014 x86_64
    x86_64 x86_64 GNU/Linux

 run-level 3 Apr 24 11:59

 SPEC is set to: /N/soft/mason/omp2012-1.0/omp_runs
    Filesystem        Type  Size  Used Avail Use% Mounted on
    bl-nas2:/vol/soft nfs   1.7T  1.5T  103G  94% /N/soft

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

General Notes

 Environment:
      KMP_AFFINITY=compact
      KMP_SCHEDULE=static,balanced
      KMP_BLOCKTIME=infinite
      KMP_LIBRARY=throughput
      KMP_STACKSIZE=31m
      OMP_NESTED=FALSE
      OMP_DYNAMIC=FALSE
      OMP_NUM_THREADS=32
