SPEC® OMPG2012 Result

Copyright 2012-2014 Standard Performance Evaluation Corporation

SGI

SPECompG_base2012 = 6.27

SGI ICE X (Intel Xeon E5-2690 v2, 3.0 GHz)

SPECompG_peak2012 = 6.75

OMP2012 license: 4 Test date: Nov-2013
Test sponsor: SGI Hardware Availability: Sep-2013
Tested by: SGI Software Availability: Oct-2013

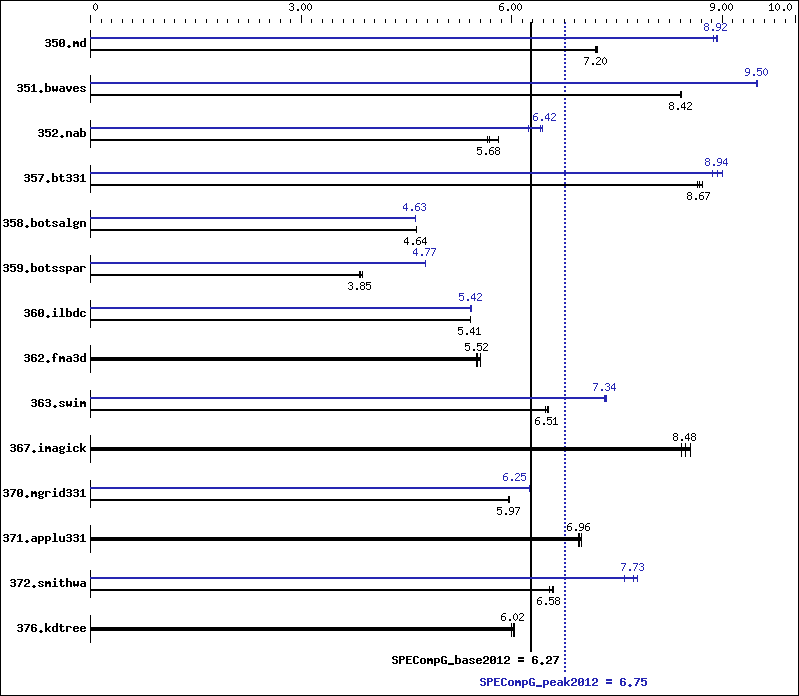

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2690 v2
CPU Characteristics: Ten Core, 3.0 GHz, 8.0 GT/s QPI
Intel Turbo Boost Technology up to 3.60 GHz
Hyper-Threading Technology enabled
CPU MHz: 3000
CPU MHz Maximum: 3600
FPU: Integrated
CPU(s) enabled: 20 cores, 2 chips, 10 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (8 x 8 GB 2Rx4 PC3-14900R-13, ECC)
Disk Subsystem: 64.8 TB RAID 6
72 x 900 GB SAS (Western Digital, 10K RPM)
Other Hardware: --
Base Threads Run: 40
Minimum Peak Threads: 20
Maximum Peak Threads: 40
Software
Operating System: SUSE Linux Enterprise Server 11 SP2,
Kernel 3.0.80-0.7-default
Compiler: C/C++/Fortran: Version 14.0.1.106 of Intel
Composer XE 2013 for Linux, Build 20131008
Auto Parallel: No
File System: NFSv3 IPoIB
System State: Run level 3 ( Multi-user )
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: SGI Tempo Compute Node 2.7.3, Build
708rp14.sles11sp2-1305311204

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 40 640   7.23  643   7.20  643   7.20  40 519   8.93  519   8.92  522   8.88
351.bwaves 40 539   8.41  538   8.42  538   8.43  20 478   9.49  477   9.50  476   9.51
352.nab 40 669   5.81  687   5.66  685   5.68  40 606   6.42  605   6.43  623   6.25
357.bt331 40 546   8.67  548   8.65  544   8.72  40 535   8.87  530   8.94  526   9.01
358.botsalgn 40 937   4.64  938   4.64  938   4.64  40 939   4.63  938   4.64  939   4.63
359.botsspar 40 1354   3.88  1365   3.85  1368   3.84  20 1100   4.77  1100   4.77  1100   4.77
360.ilbdc 40 658   5.41  657   5.42  657   5.41  40 656   5.43  657   5.41  656   5.42
362.fma3d 40 689   5.52  691   5.50  684   5.56  40 689   5.52  691   5.50  684   5.56
363.swim 40 694   6.53  696   6.51  699   6.48  20 617   7.34  616   7.36  619   7.32
367.imagick 40 835   8.42  829   8.48  822   8.55  40 835   8.42  829   8.48  822   8.55
370.mgrid331 40 740   5.97  742   5.96  740   5.97  20 707   6.26  707   6.25  707   6.25
371.applu331 40 870   6.96  867   6.99  871   6.96  40 870   6.96  867   6.99  871   6.96
372.smithwa 40 820   6.54  815   6.58  813   6.59  20 693   7.73  705   7.61  688   7.79
376.kdtree 40 747   6.02  745   6.04  750   6.00  40 747   6.02  745   6.04  750   6.00

Operating System Notes

 BIOS settings notes:
   Intel Turbo Boost Technology (Turbo)  : Enabled

 Transparent Hugepage : disabled
    Transparent Hugepage is disabled by
    echo never > /sys/kernel/mm/transparent_hugepage/enabled

 Software Environment:
   export KMP_LIBRARY=turnaround
   export KMP_STACKSIZE=256M
   export KMP_BLOCKTIME=infinite
   export OMP_DYNAMIC=FALSE
   export OMP_NESTED=FALSE
   ulimit -s unlimited

Platform Notes

 Sysinfo program /store/hfeng/omp2012/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on r1i2n14 Tue Nov 19 14:04:03 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2690 v2 @ 3.00GHz
       2 "physical id"s (chips)
       40 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 10
       siblings  : 20
       physical 0: cores 0 1 2 3 4 8 9 10 11 12
       physical 1: cores 0 1 2 3 4 8 9 10 11 12
    cache size : 25600 KB

 From /proc/meminfo
    MemTotal:       65979536 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 11 (x86_64)
       VERSION = 11
       PATCHLEVEL = 2
    sgi-compute-node-release: SGI Tempo Compute Node 2.7.3, Build
    708rp14.sles11sp2-1305311204

 uname -a:
    Linux r1i2n14 3.0.80-0.7-default #1 SMP Tue Jun 25 18:32:49 UTC 2013
    (25740f8) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Nov 15 22:04 last=S

 SPEC is set to: /store/hfeng/omp2012
    Filesystem               Type  Size  Used Avail Use% Mounted on
    10.149.133.200:/mnt/data nfs    45T  9.3T   35T  21% /nas

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

General Notes

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,0

 ========================================================================
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,0

 ========================================================================
 Per benchmark peak OMP Library Settings

 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 362.fma3d
   basepeak=1

 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 367.imagick
   basepeak=1

 ========================================================================
 371.applu331:peak:
   basepeak=1

 ========================================================================
 372.smithwa:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 376.kdtree:peak:
   basepeak=1

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O2   -openmp   -ipo    -xAVX   -ansi-alias

C++ benchmarks:

 -O2   -openmp   -ipo    -xAVX   -ansi-alias

Fortran benchmarks:

 -O2   -openmp   -ipo    -xAVX

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Peak Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

352.nab:  -O3   -openmp   -ipo    -xAVX   -fno-alias   -opt-malloc-options=1   -opt-calloc   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -ansi-alias
358.botsalgn:  -O3   -openmp   -ipo    -xSSE4.2   -fno-alias   -ansi-alias
359.botsspar:  -O3   -openmp   -ipo    -xAVX   -fno-alias   -ansi-alias
367.imagick:  basepeak = yes
372.smithwa:  -O2   -openmp   -ipo    -xSSE4.2   -fno-alias   -opt-streaming-stores always   -opt-malloc-options=1   -ansi-alias

C++ benchmarks:

376.kdtree:  basepeak = yes

Fortran benchmarks:

350.md:  -O2   -openmp   -ipo    -xAVX   -fno-alias   -opt-malloc-options=1   -fp-model fast=2   -no-prec-div   -no-prec-sqrt
351.bwaves:  -O3   -openmp   -ipo    -xAVX   -fno-alias   -fp-model fast=2   -no-prec-div   -no-prec-sqrt
357.bt331:  Same as 351.bwaves
360.ilbdc:  -O3   -openmp   -ipo    -xAVX   -opt-malloc-options=1
362.fma3d:  basepeak = yes
363.swim:  -O3   -openmp   -ipo    -xSSE4.2   -fno-alias   -opt-streaming-stores always   -opt-malloc-options=3
370.mgrid331:  -O2   -openmp   -ipo    -xSSE4.2   -fno-alias   -opt-malloc-options=3
371.applu331:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20130320.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20130320.xml.
