Supermicro (Test Sponsor: The Portland Group) |
SPECompG_base2012 = 3.17 |
|
A+ Server 2022G-URF |
SPECompG_peak2012 = 3.17 |
| OMP2012 license: | 019 | Test date: | Jan-2013 |
|---|---|---|---|
| Test sponsor: | The Portland Group | Hardware Availability: | Sep-2012 |
| Tested by: | The Portland Group | Software Availability: | Jan-2013 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 6386 SE |
| CPU Characteristics: | AMD Turbo CORE technology up to 3.50 GHz |
| CPU MHz: | 2800 |
| CPU MHz Maximum: | 3500 |
| FPU: | Integrated |
| CPU(s) enabled: | 32 cores, 2 chips, 16 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 512 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core |
| Secondary Cache: | 16 MB I+D on chip per chip, 2 MB shared / 2 cores |
| L3 Cache: | 16 MB I+D on chip per chip, 8 MB shared / 8 cores |
| Other Cache: | None |
| Memory: | 64 GB (8 x 8GB 2Rx4 PC3L-12800R-11, ECC) |
| Disk Subsystem: | 10 x 144GB, RAID, 10000 RPM |
| Other Hardware: | None |
| Base Threads Run: | 32 |
| Minimum Peak Threads: | 32 |
| Maximum Peak Threads: | 32 |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++/Fortran: Version 13.0 of Intel Composer XE 2013 Build 20120731 |
| Auto Parallel: | No |
| File System: | nfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

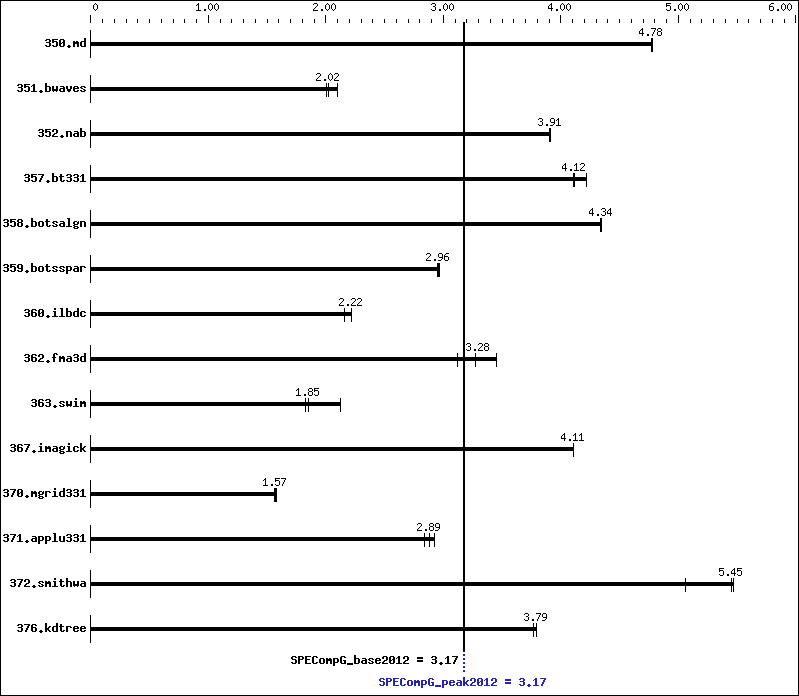

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 350.md | 32 | 970 | 4.77 | 968 | 4.78 | 970 | 4.78 | 32 | 970 | 4.77 | 968 | 4.78 | 970 | 4.78 |
| 351.bwaves | 32 | 2254 | 2.01 | 2239 | 2.02 | 2161 | 2.10 | 32 | 2254 | 2.01 | 2239 | 2.02 | 2161 | 2.10 |
| 352.nab | 32 | 996 | 3.91 | 994 | 3.91 | 994 | 3.91 | 32 | 996 | 3.91 | 994 | 3.91 | 994 | 3.91 |
| 357.bt331 | 32 | 1123 | 4.22 | 1153 | 4.11 | 1151 | 4.12 | 32 | 1123 | 4.22 | 1153 | 4.11 | 1151 | 4.12 |
| 358.botsalgn | 32 | 1002 | 4.34 | 1002 | 4.34 | 1002 | 4.34 | 32 | 1002 | 4.34 | 1002 | 4.34 | 1002 | 4.34 |
| 359.botsspar | 32 | 1780 | 2.95 | 1769 | 2.97 | 1775 | 2.96 | 32 | 1780 | 2.95 | 1769 | 2.97 | 1775 | 2.96 |
| 360.ilbdc | 32 | 1607 | 2.22 | 1645 | 2.16 | 1604 | 2.22 | 32 | 1607 | 2.22 | 1645 | 2.16 | 1604 | 2.22 |
| 362.fma3d | 32 | 1101 | 3.45 | 1219 | 3.12 | 1159 | 3.28 | 32 | 1101 | 3.45 | 1219 | 3.12 | 1159 | 3.28 |
| 363.swim | 32 | 2131 | 2.13 | 2478 | 1.83 | 2443 | 1.85 | 32 | 2131 | 2.13 | 2478 | 1.83 | 2443 | 1.85 |
| 367.imagick | 32 | 1711 | 4.11 | 1710 | 4.11 | 1710 | 4.11 | 32 | 1711 | 4.11 | 1710 | 4.11 | 1710 | 4.11 |
| 370.mgrid331 | 32 | 2823 | 1.57 | 2796 | 1.58 | 2814 | 1.57 | 32 | 2823 | 1.57 | 2796 | 1.58 | 2814 | 1.57 |
| 371.applu331 | 32 | 2073 | 2.92 | 2136 | 2.84 | 2099 | 2.89 | 32 | 2073 | 2.92 | 2136 | 2.84 | 2099 | 2.89 |
| 372.smithwa | 32 | 1060 | 5.06 | 979 | 5.47 | 983 | 5.45 | 32 | 1060 | 5.06 | 979 | 5.47 | 983 | 5.45 |
| 376.kdtree | 32 | 1194 | 3.77 | 1187 | 3.79 | 1187 | 3.79 | 32 | 1194 | 3.77 | 1187 | 3.79 | 1187 | 3.79 |
Platform Notes
Sysinfo program /scratch/cparrott/OMP2012_v1.0/Docs/sysinfo $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647 running on piledriver Sun Jan 27 11:38:55 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/omp2012/Docs/config.html#sysinfo From /proc/cpuinfo model name : AMD Opteron(tm) Processor 6386 SE 2 "physical id"s (chips) 32 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 0 1 2 3 4 5 6 7 physical 1: cores 0 1 2 3 4 5 6 7 cache size : 2048 KB From /proc/meminfo MemTotal: 66087492 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux piledriver 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Nov 9 14:31 SPEC is set to: /scratch/cparrott/OMP2012_v1.0 Filesystem Type Size Used Avail Use% Mounted on filer01.pgi.net:/vol/vol1/scratch nfs 727G 126G 601G 18% /proj/scratch Additional information from dmidecode: (End of data from sysinfo program)
General Notes
Software Environment:
ulimit -s unlimited
Base Portability Flags
| 350.md: | -free |
| 367.imagick: | -std=c99 |
Base Optimization Flags
C benchmarks:
| -O3 -ipo1 -openmp -ansi-alias -mcmodel=medium -shared-intel |
C++ benchmarks:
| -O3 -ipo1 -openmp -ansi-alias -mcmodel=medium -shared-intel |
Fortran benchmarks:
| -O3 -ipo1 -openmp -ansi-alias -mcmodel=medium -shared-intel |
Peak Optimization Flags
C benchmarks:
| 352.nab: | basepeak = yes |
| 358.botsalgn: | basepeak = yes |
| 359.botsspar: | basepeak = yes |
| 367.imagick: | basepeak = yes |
| 372.smithwa: | basepeak = yes |
C++ benchmarks:
| 376.kdtree: | basepeak = yes |
Fortran benchmarks:
| 350.md: | basepeak = yes |
| 351.bwaves: | basepeak = yes |
| 357.bt331: | basepeak = yes |
| 360.ilbdc: | basepeak = yes |
| 362.fma3d: | basepeak = yes |
| 363.swim: | basepeak = yes |
| 370.mgrid331: | basepeak = yes |
| 371.applu331: | basepeak = yes |
