SPEC® MPIL2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Lenovo Global Technology

ThinkSystem SR860 V2
(Intel Xeon Platinum 8380H CPU, 2.90 GHz)

MPI2007 license: 28 Test date: Oct-2020
Test sponsor: Lenovo Global Technology Hardware Availability: Oct-2020
Tested by: Lenovo Global Technology Software Availability: Oct-2020

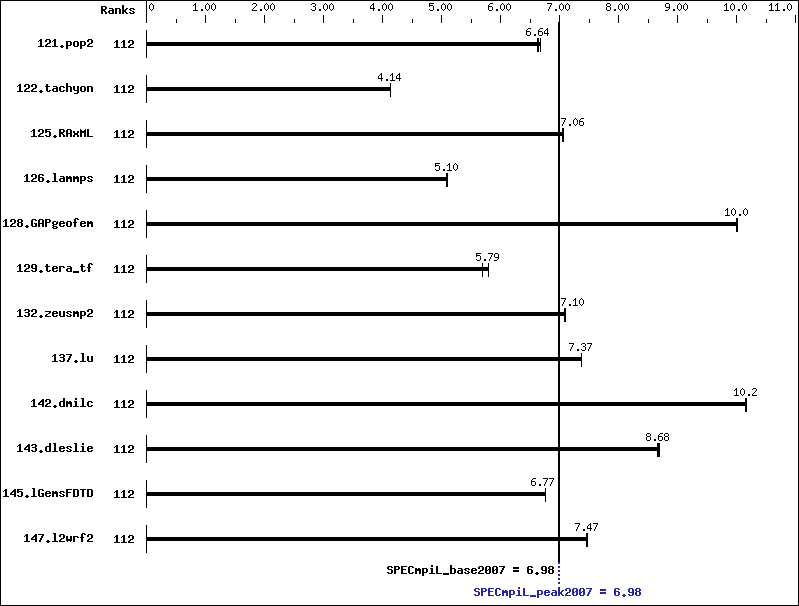

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2 112 583 6.67 586 6.64 587 6.62 112 583 6.67 586 6.64 587 6.62
122.tachyon 112 470 4.14 470 4.14 470 4.13 112 470 4.14 470 4.14 470 4.13
125.RAxML 112 414 7.06 413 7.06 414 7.06 112 414 7.06 413 7.06 414 7.06
126.lammps 112 482 5.10 482 5.11 483 5.09 112 482 5.10 482 5.11 483 5.09
128.GAPgeofem 112 593 10.0  592 10.0  592 10.0  112 593 10.0  592 10.0  592 10.0
129.tera_tf 112 190 5.79 193 5.69 189 5.80 112 190 5.79 193 5.69 189 5.80
132.zeusmp2 112 298 7.10 299 7.10 299 7.09 112 298 7.10 299 7.10 299 7.09
137.lu 112 570 7.38 570 7.37 570 7.37 112 570 7.38 570 7.37 570 7.37
142.dmilc 112 363 10.2  363 10.2  363 10.2  112 363 10.2  363 10.2  363 10.2
143.dleslie 112 358 8.65 357 8.68 357 8.69 112 358 8.65 357 8.68 357 8.69
145.lGemsFDTD 112 652 6.77 652 6.76 652 6.77 112 652 6.77 652 6.76 652 6.77
147.l2wrf2 112 1099 7.47 1099 7.47 1099 7.46 112 1099 7.47 1099 7.47 1099 7.46
Hardware Summary
Type of System: Homogeneous
Compute Node: ThinkSystem SR860 V2
Interconnect: Nvidia Mellanox ConnectX-6 HDR Infiniband
File Server Node: NFS
Total Compute Nodes: 1
Total Chips: 4
Total Cores: 112
Total Threads: 112
Total Memory: 1536 GB
Base Ranks Run: 112
Minimum Peak Ranks: 112
Maximum Peak Ranks: 112
Software Summary
C Compiler: Intel Parallel Studio C Compiler 20 Update 2 for
Linux
Version 19.1.2.254 Build 20200623
C++ Compiler: Intel Parallel Studio C++ Compiler 20 Update 2
for Linux
Version 19.1.2.254 Build 20200623
Fortran Compiler: Intel Parallel Studio Fortran Compiler 20 Update
2 for Linux
Version 19.1.2.254 Build 20200623
Base Pointers: 64-bit
Peak Pointers: Not Applicable
MPI Library: Intel Parallel Studio MPI Library for Linux* OS
Version 2020 Update 2 Build 20200624
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: ThinkSystem SR860 V2

Hardware
Number of nodes: 1
Uses of the node: compute
Vendor: Lenovo Global Technology
Model: ThinkSystem SR860 V2
CPU Name: Intel Xeon Platinum 8380H
CPU(s) orderable: 2,4 chips
Chips enabled: 4
Cores enabled: 112
Cores per chip: 28
Threads per core: 1
CPU Characteristics: Intel Turbo Boost Technology up to 4.3 GHz
CPU MHz: 2900
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory: 1536 GB (48 x 32 GB 2Rx8 PC4-3200AA-R)
Disk Subsystem: 1 x 1 TB SATA 2.5" SSD
Other Hardware: N/A
Adapter: Nvidia Mellanox ConnectX-6 HDR Infiniband
Number of Adapters: 1
Slot Type: PCI-Express 3.0 x16
Data Rate: 200 Gb/s
Ports Used: 1
Interconnect Type: Nvidia Mellanox ConnectX-6 HDR Infiniband
Software
Adapter: Nvidia Mellanox ConnectX-6 HDR Infiniband
Adapter Driver: 5.1-0.6.6
Adapter Firmware: 20.25.2006
Operating System: SUSE Linux Enterprise Server 15 SP2
5.3.18-22-default
Local File System: xfs
Shared File System: None
System State: Multi-user, run level 3
Other Software: None

Node Description: NFS

Hardware
Number of nodes: 1
Uses of the node: Fileserver
Vendor: Lenovo Global Technology
Model: ThinkSystem SR860 V2
CPU Name: Intel Xeon Platinum 8380H
CPU(s) orderable: 2,4 chips
Chips enabled: 4
Cores enabled: 112
Cores per chip: 28
Threads per core: 1
CPU Characteristics: Intel Turbo Boost Technology up to 4.3 GHz
CPU MHz: 2900
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory: 1536 GB (48 x 32 GB 2Rx8 PC4-3200AA-R)
Disk Subsystem: 1 x 1 TB SATA 2.5" SSD
Other Hardware: None
Adapter: Nvidia Mellanox ConnectX-6 HDR Infiniband
Number of Adapters: 1
Slot Type: PCI-Express 3.0 x16
Data Rate: 200 Gb/s
Ports Used: 1
Interconnect Type: Nvidia Mellanox ConnectX-6 HDR Infiniband
Software
Adapter: Nvidia Mellanox ConnectX-6 HDR Infiniband
Adapter Driver: 5.1-0.6.6
Adapter Firmware: 20.25.2006
Operating System: SUSE Linux Enterprise Server 15 SP2
Local File System: None
Shared File System: NFS
System State: Multi-User, run level 3
Other Software: None

Interconnect Description: Nvidia Mellanox ConnectX-6 HDR Infiniband

Hardware
Vendor: Nvidia
Model: Nvidia Mellanox ConnectX-6 HDR Infiniband
Switch Model: Nvidia Mellanox QM8700
Number of Switches: 1
Number of Ports: 40
Data Rate: 200 Gb/s
Firmware: 3.9.0606
Topology: Mesh
Primary Use: MPI and I/O traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec command was used to start MPI jobs.

 RAM configuration:
   Compute nodes have 2 x 32 GB RDIMM on each memory channel.

 BIOS settings:
   Operating Mode : Maximum Performance Mode
   Intel Hyper-Threading Technology (SMT): Disabled
   SNC (Sub-NUMA Cluster): Enable


 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK

Base Optimization Flags

C benchmarks:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -ipo   -xCORE-AVX512   -no-prec-div

Fortran benchmarks:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

Peak Optimization Flags

C benchmarks:

122.tachyon:  basepeak = yes
125.RAxML:  basepeak = yes
142.dmilc:  basepeak = yes

C++ benchmarks:

126.lammps:  basepeak = yes

Fortran benchmarks:

129.tera_tf:  basepeak = yes
137.lu:  basepeak = yes
143.dleslie:  basepeak = yes
145.lGemsFDTD:  basepeak = yes

Benchmarks using both Fortran and C:

121.pop2:  basepeak = yes
128.GAPgeofem:  basepeak = yes
132.zeusmp2:  basepeak = yes
147.l2wrf2:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20201007.html,
http://www.spec.org/mpi2007/flags/Lenovo-SPECmpiM_Platform_Flags.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20201007.xml,
http://www.spec.org/mpi2007/flags/Lenovo-SPECmpiM_Platform_Flags.xml.

SPEC and SPEC MPI are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2010 Standard Performance Evaluation Corporation
Tested with SPEC MPI2007 v2.0.1.
Report generated on Wed Nov 4 16:31:45 2020 by SPEC MPI2007 HTML formatter v1463.
Originally published on 4 November 2020.
