SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Lenovo Global Technology

ThinkSystem SR860 V2
(Intel Xeon Platinum 8380H CPU, 2.90 GHz)

MPI2007 license: 28 Test date: Aug-2020
Test sponsor: Lenovo Global Technology Hardware Availability: Oct-2020
Tested by: Lenovo Global Technology Software Availability: Oct-2020

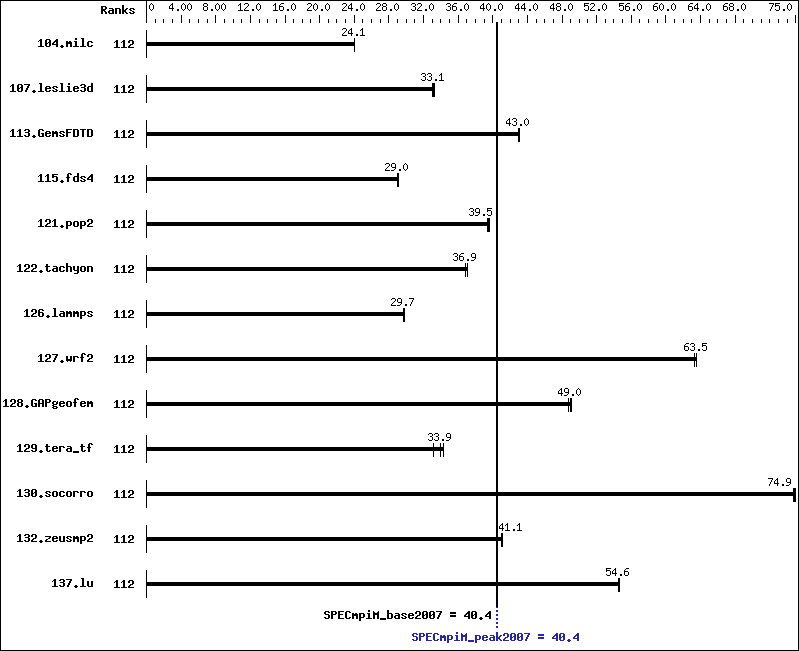

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 112 65.0 24.1 65.0 24.1 65.0 24.1 112 65.0 24.1 65.0 24.1 65.0 24.1
107.leslie3d 112 158   33.1 157   33.3 158   33.1 112 158   33.1 157   33.3 158   33.1
113.GemsFDTD 112 147   43.0 147   43.0 147   43.0 112 147   43.0 147   43.0 147   43.0
115.fds4 112 67.1 29.1 67.3 29.0 67.3 29.0 112 67.1 29.1 67.3 29.0 67.3 29.0
121.pop2 112 104   39.5 104   39.6 105   39.4 112 104   39.5 104   39.6 105   39.4
122.tachyon 112 75.9 36.9 75.9 36.9 75.4 37.1 112 75.9 36.9 75.9 36.9 75.4 37.1
126.lammps 112 97.9 29.8 98.0 29.7 98.3 29.6 112 97.9 29.8 98.0 29.7 98.3 29.6
127.wrf2 112 123   63.5 123   63.3 123   63.5 112 123   63.5 123   63.3 123   63.5
128.GAPgeofem 112 42.3 48.8 42.1 49.0 42.1 49.1 112 42.3 48.8 42.1 49.0 42.1 49.1
129.tera_tf 112 80.6 34.3 81.6 33.9 83.6 33.1 112 80.6 34.3 81.6 33.9 83.6 33.1
130.socorro 112 51.0 74.8 50.9 75.0 51.0 74.9 112 51.0 74.8 50.9 75.0 51.0 74.9
132.zeusmp2 112 75.6 41.1 75.6 41.1 75.6 41.0 112 75.6 41.1 75.6 41.1 75.6 41.0
137.lu 112 67.3 54.6 67.4 54.5 67.4 54.6 112 67.3 54.6 67.4 54.5 67.4 54.6
Hardware Summary
Type of System: Homogeneous
Compute Node: ThinkSystem SR860 V2
Interconnect: Intel Omni-Path
File Server Node: NFS
Total Compute Nodes: 1
Total Chips: 4
Total Cores: 112
Total Threads: 112
Total Memory: 1536 GB
Base Ranks Run: 112
Minimum Peak Ranks: 112
Maximum Peak Ranks: 112
Software Summary
C Compiler: Intel C++ Compiler 18.0 Update 3 for Linux
Version 18.0.3 Build 20180410
C++ Compiler: Intel C++ Compiler 18.0 Update 3 for Linux
Version 18.0.3 Build 20180410
Fortran Compiler: Intel Fortran Compiler 18.0 Update 3 for Linux
Version 18.0.3 Build 20180410
Base Pointers: 64-bit
Peak Pointers: Not Applicable
MPI Library: Intel MPI Library for Linux* OS
Version 2018 Update 3 Build 20180411
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: ThinkSystem SR860 V2

Hardware
Number of nodes: 1
Uses of the node: compute
Vendor: Lenovo Global Technology
Model: ThinkSystem SR860 V2
CPU Name: Intel Xeon Platinum 8380H
CPU(s) orderable: 2,4 chips
Chips enabled: 4
Cores enabled: 112
Cores per chip: 28
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2900
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory: 1536 GB (48 x 32 GB 2Rx8 PC4-3200AA-R)
Disk Subsystem: 1 x 1 TB SATA 2.5" SSD
Other Hardware: N/A
Adapter: Intel Omni-Path Fabric Adapter 100 Series
Number of Adapters: 1
Slot Type: PCI-Express 3.0 x16
Data Rate: 100 Gb/s
Ports Used: 1
Interconnect Type: Intel Omni-Path
Software
Adapter: Intel Omni-Path Fabric Adapter 100 Series
Adapter Driver: 10.10.2.0.46
Adapter Firmware: 10.4.0.0.146
Operating System: Red Hat Enterprise Linux Server release 8.2,
Kernel 4.18.0-193.el8.x86_64
Local File System: xfs
Shared File System: None
System State: Multi-user, run level 3
Other Software: None

Node Description: NFS

Hardware
Number of nodes: 1
Uses of the node: Fileserver
Vendor: Lenovo Global Technology
Model: ThinkSystem SR860 V2
CPU Name: Intel Xeon Platinum 8380H
CPU(s) orderable: 2,4 chips
Chips enabled: 4
Cores enabled: 112
Cores per chip: 28
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2900
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory: 1536 GB (48 x 32 GB 2Rx8 PC4-3200AA)
Disk Subsystem: 1 x 1 TB SATA 2.5" SSD
Other Hardware: None
Adapter: Intel Omni-Path Fabric Adapter 100 Series
Number of Adapters: 1
Slot Type: PCI-Express 3.0 x16
Data Rate: 100 Gb/s
Ports Used: 1
Interconnect Type: Intel Omni-Path
Software
Adapter: Intel Omni-Path Fabric Adapter 100 Series
Adapter Driver: 10.10.2.0.46
Adapter Firmware: 10.4.0.0.146
Operating System: Red Hat Enterprise Linux Server release 7.8
Local File System: None
Shared File System: NFS
System State: Multi-User, run level 3
Other Software: None

Interconnect Description: Intel Omni-Path

Hardware
Vendor: Intel
Model: Intel Omni-Path Fabric Adapter 100 Series
Switch Model: Intel Omni-Path 100 Series
Number of Switches: 1
Number of Ports: 48
Data Rate: 100 Gb/s
Firmware: 10.3.0.0.60
Topology: Mesh
Primary Use: MPI Traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec command was used to start MPI jobs.
 RAM configuration:
   Compute nodes have 2 x 32 GB RDIMM on each memory channel.
 BIOS settings:
   Operating Mode : Maximum Performance Mode
   Intel Hyper-Threading Technology (SMT): Disabled
   SNC (Sub-NUMA Cluster): Enable
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX
130.socorro:  -assume nostd_intent_in

Base Optimization Flags

C benchmarks:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -ipo   -xCORE-AVX512   -no-prec-div

Fortran benchmarks:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

Peak Optimization Flags

C benchmarks:

104.milc:  basepeak = yes
122.tachyon:  basepeak = yes

C++ benchmarks:

126.lammps:  basepeak = yes

Fortran benchmarks:

107.leslie3d:  basepeak = yes
113.GemsFDTD:  basepeak = yes
129.tera_tf:  basepeak = yes
137.lu:  basepeak = yes

Benchmarks using both Fortran and C:

115.fds4:  basepeak = yes
121.pop2:  basepeak = yes
127.wrf2:  basepeak = yes
128.GAPgeofem:  basepeak = yes
130.socorro:  basepeak = yes
132.zeusmp2:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20201007.html,
http://www.spec.org/mpi2007/flags/Lenovo-SPECmpiM_Platform_Flags.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20201007.xml,
http://www.spec.org/mpi2007/flags/Lenovo-SPECmpiM_Platform_Flags.xml.

SPEC and SPEC MPI are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2010 Standard Performance Evaluation Corporation
Tested with SPEC MPI2007 v2.0.1.
Report generated on Tue Oct 13 17:09:30 2020 by SPEC MPI2007 HTML formatter v1463.
Originally published on 13 October 2020.
