SPEC® MPIM2007 Result

Huawei

Huawei Kunlun 9008 V5 (Intel Xeon Platinum 8280 CPU, 2.70 GHz)

SPECmpiM_peak2007 = Not Run

SPECmpiM_base2007 = 46.4

MPI2007 license:	27	Test date:	Mar-2019
Test sponsor:	Huawei	Hardware Availability:	Jun-2019
Tested by:	Huawei	Software Availability:	Feb-2019

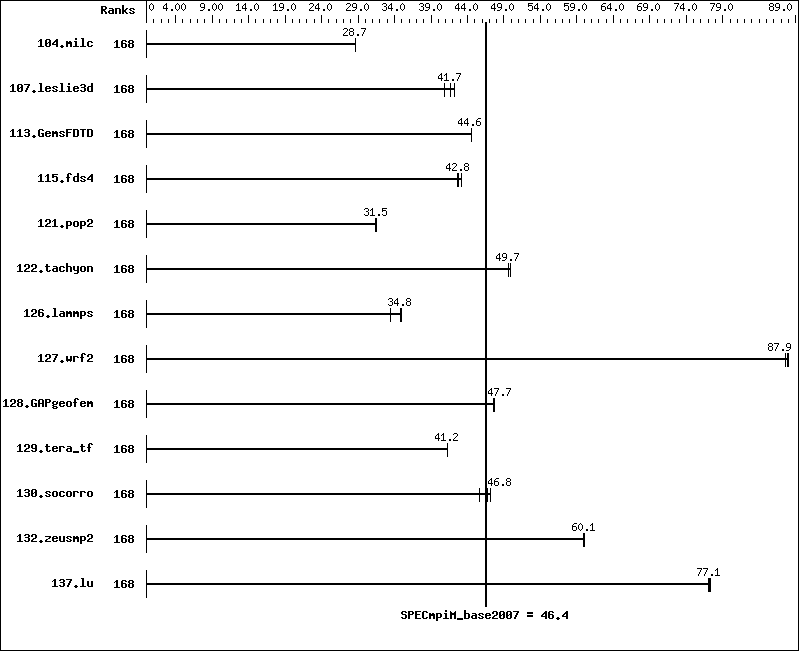

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc	168	54.6	28.7	54.5	28.7	54.7	28.6
107.leslie3d	168	124	42.2	128	40.9	125	41.7
113.GemsFDTD	168	141	44.6	141	44.6	142	44.5
115.fds4	168	45.2	43.2	45.6	42.8	45.8	42.6
121.pop2	168	131	31.4	131	31.5	131	31.5
122.tachyon	168	56.3	49.7	56.4	49.6	56.1	49.9
126.lammps	168	87.2	33.4	83.4	35.0	83.8	34.8
127.wrf2	168	89.0	87.6	88.6	88.0	88.7	87.9
128.GAPgeofem	168	43.3	47.7	43.4	47.6	43.3	47.7
129.tera_tf	168	67.1	41.2	67.1	41.3	67.2	41.2
130.socorro	168	83.5	45.7	81.6	46.8	81.0	47.1
132.zeusmp2	168	51.6	60.1	51.8	59.9	51.6	60.1
137.lu	168	47.6	77.3	47.7	77.1	47.8	77.0

Hardware Summary
Type of System:	Homogeneous
Compute Node:	Huawei Kunlun 9008 V5
File Server Node:	Huawei Kunlun 9008 V5
Head Node:	Huawei Kunlun 9008 V5
Total Compute Nodes:	1
Total Chips:	6
Total Cores:	168
Total Threads:	168
Total Memory:	1152 GB
Base Ranks Run:	168
Minimum Peak Ranks:	--
Maximum Peak Ranks:	--

Software Summary
C Compiler:	Intel C++ Composer XE 2018 for Linux, Version 18.0.5
C++ Compiler:	Intel C++ Composer XE 2018 for Linux, Version 18.0.5
Fortran Compiler:	Intel Fortran Composer XE 2018 for Linux, Version 18.0.5
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
MPI Library:	Intel MPI Library for Linux, Version 2018 Update 4
Other MPI Info:	None
Pre-processors:	No
Other Software:	None

Node Description: Huawei Kunlun 9008 V5

Hardware
Number of nodes:	1
Uses of the node:	head, compute, fileserver
Vendor:	Huawei
Model:	Huawei Kunlun 9008 V5
CPU Name:	Intel Xeon Platinum 8280
CPU(s) orderable:	2,4,6,8 chip
Chips enabled:	6
Cores enabled:	168
Cores per chip:	28
Threads per core:	1
CPU Characteristics:	None
CPU MHz:	2700
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	38.5 MB I+D on chip per chip
Other Cache:	None
Memory:	1152 GB (36 x 32 GB 2Rx4 PC4-2933Y-R)
Disk Subsystem:	2 x 900 GB 10K RPM SAS HDD,RAID 0
Other Hardware:	None
Adapter:	N/A
Number of Adapters:	0
Slot Type:	N/A
Data Rate:	N/A
Ports Used:	0
Interconnect Type:	N/A

Software
Adapter:	N/A
Adapter Driver:	N/A
Adapter Firmware:	N/A
Operating System:	SUSE Linux Enterprise Server 12 SP4 4.12.14-94.41-default
Local File System:	btrfs
Shared File System:	None
System State:	Multi-User, run level 3
Other Software:	None

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec.hydra command was used to start MPI jobs.

 BIOS settings:
   Intel Hyper-Threading Technology :Disabled
   Intel Turbo Boost Technology :Enabled (default is Enabled)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
is mitigated in the system as tested and documented.
