SPEC® MPIM2007 Result

Huawei

Huawei 2288H V5 (Intel Xeon Platinum 8280 CPU, 2.70 GHz)

SPECmpiM_peak2007 = Not Run

SPECmpiM_base2007 = 10.0

MPI2007 license:	27	Test date:	Jan-2019
Test sponsor:	Huawei	Hardware Availability:	Apr-2019
Tested by:	Huawei	Software Availability:	Dec-2018

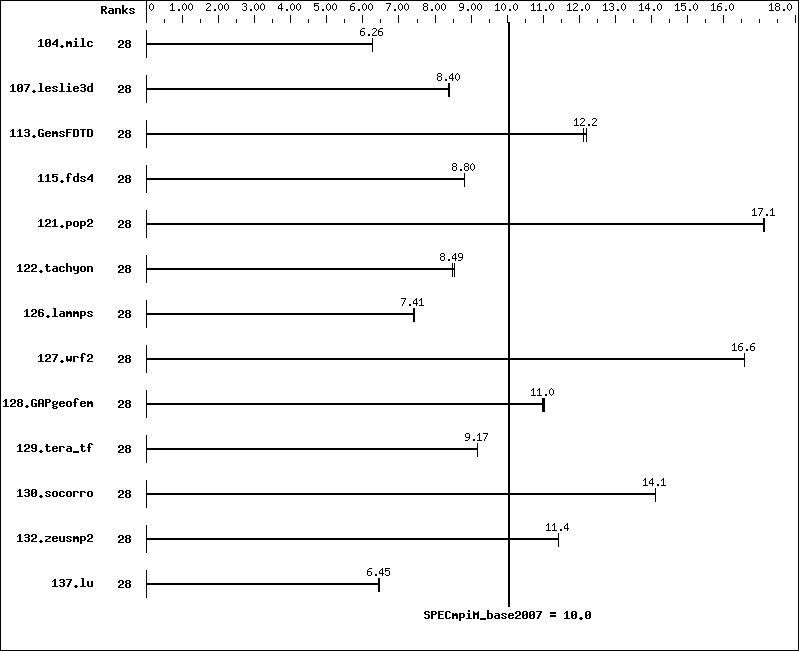

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc	28	250	6.26	250	6.26	250	6.26
107.leslie3d	28	621	8.41	621	8.40	623	8.38
113.GemsFDTD	28	517	12.2	518	12.2	520	12.1
115.fds4	28	221	8.83	222	8.80	222	8.80
121.pop2	28	241	17.1	241	17.1	241	17.1
122.tachyon	28	329	8.49	328	8.53	330	8.47
126.lammps	28	393	7.41	394	7.40	393	7.42
127.wrf2	28	470	16.6	470	16.6	470	16.6
128.GAPgeofem	28	187	11.0	188	11.0	187	11.0
129.tera_tf	28	302	9.18	302	9.17	302	9.16
130.socorro	28	270	14.1	271	14.1	271	14.1
132.zeusmp2	28	272	11.4	271	11.4	272	11.4
137.lu	28	568	6.47	570	6.45	570	6.45

Hardware Summary
Type of System:	Homogeneous
Compute Node:	Huawei 2288H V5
File Server Node:	Huawei 2288H V5
Head Node:	Huawei 2288H V5
Total Compute Nodes:	1
Total Chips:	1
Total Cores:	28
Total Threads:	28
Total Memory:	192 GB
Base Ranks Run:	28
Minimum Peak Ranks:	--
Maximum Peak Ranks:	--

Software Summary
C Compiler:	Intel C++ Composer XE 2018 for Linux, Version 18.0.5.274 Build 20180823
C++ Compiler:	Intel C++ Composer XE 2018 for Linux, Version 18.0.5.274 Build 20180823
Fortran Compiler:	Intel C++ Composer XE 2018 for Linux, Version 18.0.5.274 Build 20180823
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
MPI Library:	Intel MPI Library for Linux OS, Version 2018 Update 4 Build 20180823
Other MPI Info:	None
Pre-processors:	No
Other Software:	None

Node Description: Huawei 2288H V5

Hardware
Number of nodes:	1
Uses of the node:	head, compute, fileserver
Vendor:	Huawei
Model:	Huawei 2288H V5
CPU Name:	Intel Xeon Platinum 8280
CPU(s) orderable:	1,2 chip
Chips enabled:	1
Cores enabled:	28
Cores per chip:	28
Threads per core:	1
CPU Characteristics:	None
CPU MHz:	2700
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	38.5 MB I+D on chip per chip
Other Cache:	None
Memory:	192 GB (12 x 16 GB 2Rx8 PC4-2933Y-R)
Disk Subsystem:	1 x 1200 GB 10K RPM SAS
Other Hardware:	None
Adapter:	N/A
Number of Adapters:	0
Slot Type:	N/A
Data Rate:	N/A
Ports Used:	0
Interconnect Type:	N/A

Software
Adapter:	N/A
Adapter Driver:	N/A
Adapter Firmware:	N/A
Operating System:	SUSE Linux Enterprise Server 12 SP4 4.12.14-94.41-default
Local File System:	xfs
Shared File System:	None
System State:	Multi-User, run level 3
Other Software:	None

Submit Notes

The config file option 'submit' was used.

General Notes

 BIOS configuration:
 Power Policy Set to Performance
 Hyper-Threading Set to Disabled
 XPT Prefetch Set to Enabled


 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
