SPEC® MPIM2007 Result

Huawei

Huawei 2288H V5 (Intel Xeon Platinum 8280 CPU, 2.70 GHz)

SPECmpiM_peak2007 = Not Run

SPECmpiM_base2007 = 19.4

MPI2007 license:	27	Test date:	Jan-2019
Test sponsor:	Huawei	Hardware Availability:	Apr-2019
Tested by:	Huawei	Software Availability:	Dec-2018

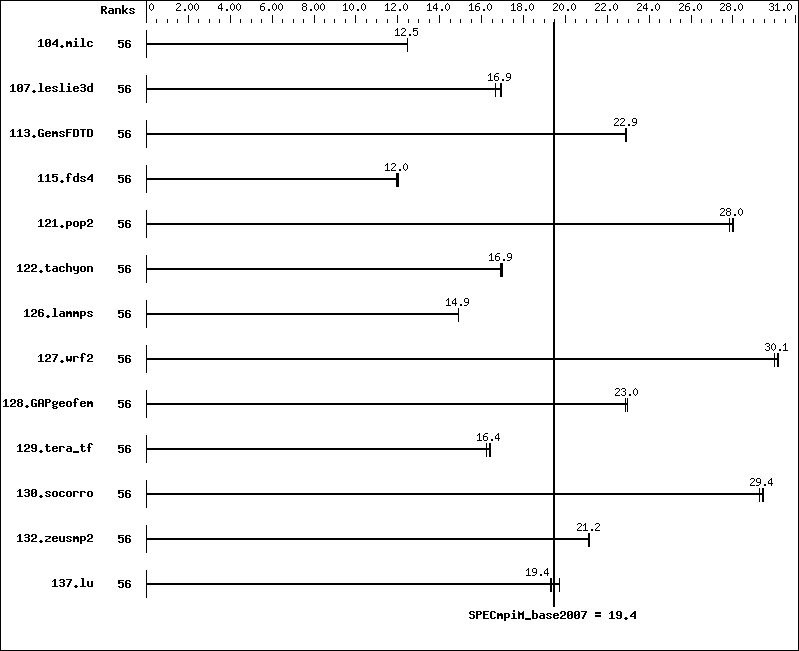

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc	56	126	12.4	125	12.5	126	12.5
107.leslie3d	56	313	16.7	309	16.9	308	16.9
113.GemsFDTD	56	275	22.9	276	22.9	275	22.9
115.fds4	56	162	12.0	164	11.9	162	12.0
121.pop2	56	148	27.8	148	28.0	147	28.0
122.tachyon	56	165	16.9	165	17.0	166	16.9
126.lammps	56	196	14.9	196	14.9	196	14.9
127.wrf2	56	260	30.0	259	30.1	258	30.2
128.GAPgeofem	56	89.9	23.0	90.0	23.0	90.3	22.9
129.tera_tf	56	169	16.4	169	16.4	171	16.2
130.socorro	56	131	29.2	130	29.5	130	29.4
132.zeusmp2	56	147	21.1	147	21.2	147	21.2
137.lu	56	191	19.3	190	19.4	186	19.7

Hardware Summary
Type of System:	Homogeneous
Compute Node:	Huawei 2288H V5
File Server Node:	Huawei 2288H V5
Head Node:	Huawei 2288H V5
Total Compute Nodes:	1
Total Chips:	2
Total Cores:	56
Total Threads:	56
Total Memory:	768 GB
Base Ranks Run:	56
Minimum Peak Ranks:	--
Maximum Peak Ranks:	--

Software Summary
C Compiler:	Intel C++ Composer XE 2018 for Linux, Version 18.0.5.274 Build 20180823
C++ Compiler:	Intel C++ Composer XE 2018 for Linux, Version 18.0.5.274 Build 20180823
Fortran Compiler:	Intel C++ Composer XE 2018 for Linux, Version 18.0.5.274 Build 20180823
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
MPI Library:	Intel MPI Library for Linux OS, Version 2018 Update 4 Build 20180823
Other MPI Info:	None
Pre-processors:	No
Other Software:	None

Node Description: Huawei 2288H V5

Hardware
Number of nodes:	1
Uses of the node:	head, compute, fileserver
Vendor:	Huawei
Model:	Huawei 2288H V5
CPU Name:	Intel Xeon Platinum 8280
CPU(s) orderable:	1,2 chip
Chips enabled:	2
Cores enabled:	56
Cores per chip:	28
Threads per core:	1
CPU Characteristics:	None
CPU MHz:	2700
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	38.5 MB I+D on chip per chip
Other Cache:	None
Memory:	768 GB (24 x 32 GB 2Rx4 PC4-2933Y-R)
Disk Subsystem:	1 x 1200 GB 10K RPM SAS
Other Hardware:	None
Adapter:	N/A
Number of Adapters:	0
Slot Type:	N/A
Data Rate:	N/A
Ports Used:	0
Interconnect Type:	N/A

Software
Adapter:	N/A
Adapter Driver:	N/A
Adapter Firmware:	N/A
Operating System:	SUSE Linux Enterprise Server 12 SP4 4.12.14-94.41-default
Local File System:	xfs
Shared File System:	None
System State:	Multi-User, run level 3
Other Software:	None

Submit Notes

The config file option 'submit' was used.

General Notes

 BIOS configuration:
 Power Policy Set to Performance
 Hyper-Threading Set to Disabled
 XPT Prefetch Set to Enabled


 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
