SPEC® MPIM2007 Result

Lenovo Global Technology

ThinkSystem SR650
(Intel Xeon Platinum 8280 CPU, 2.70 GHz)

SPECmpiM_peak2007 = Not Run

SPECmpiM_base2007 = 19.1

MPI2007 license:	28	Test date:	Mar-2019
Test sponsor:	Lenovo Global Technology	Hardware Availability:	Apr-2019
Tested by:	Lenovo Global Technology	Software Availability:	Apr-2019

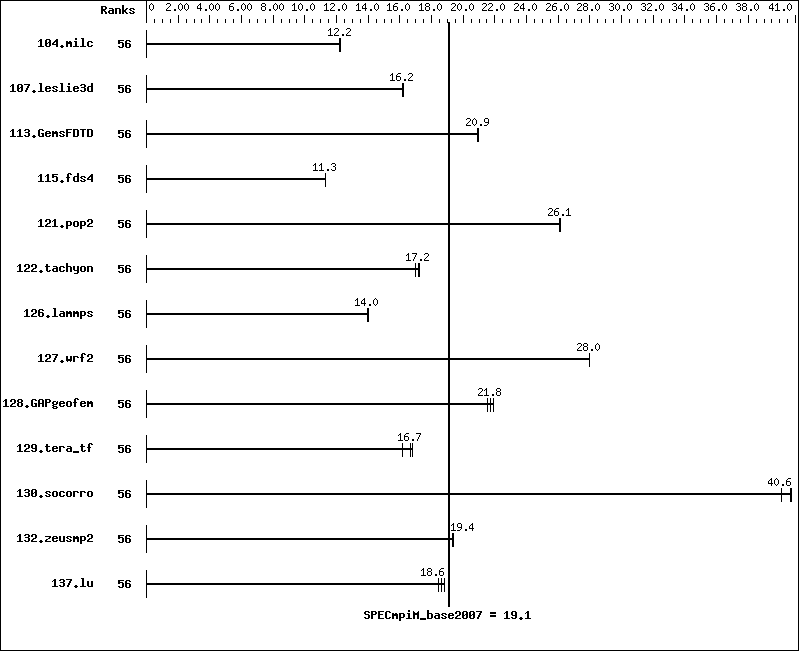

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc	56	128	12.2	128	12.2	128	12.2
107.leslie3d	56	322	16.2	323	16.2	322	16.2
113.GemsFDTD	56	301	20.9	301	21.0	301	20.9
115.fds4	56	172	11.3	172	11.3	173	11.3
121.pop2	56	158	26.2	158	26.1	158	26.1
122.tachyon	56	163	17.2	165	17.0	162	17.2
126.lammps	56	208	14.0	208	14.0	209	14.0
127.wrf2	56	278	28.0	279	28.0	279	27.9
128.GAPgeofem	56	94.3	21.9	95.9	21.5	94.9	21.8
129.tera_tf	56	165	16.8	171	16.2	166	16.7
130.socorro	56	93.6	40.8	95.3	40.1	93.9	40.6
132.zeusmp2	56	160	19.4	160	19.3	160	19.4
137.lu	56	195	18.8	197	18.6	199	18.5

Hardware Summary
Type of System:	Homogeneous
Compute Node:	ThinkSystem SR650
Interconnect:	N/A
Total Compute Nodes:	1
Total Chips:	2
Total Cores:	56
Total Threads:	56
Total Memory:	768 GB
Base Ranks Run:	56
Minimum Peak Ranks:	--
Maximum Peak Ranks:	--

Software Summary
C Compiler:	Intel C++ Compiler 17.0 Update 7 for Linux Version 17.0.7 Build 20180403
C++ Compiler:	Intel C++ Compiler 17.0 Update 7 for Linux Version 17.0.7 Build 20180403
Fortran Compiler:	Intel Fortran Compiler 17.0 Update 7 for Linux Version 17.0.7 Build 20180403
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
MPI Library:	Intel MPI Library for Linux* OS Version 2018 Update 3 Build 20180411
Other MPI Info:	None
Pre-processors:	No
Other Software:	None

Node Description: ThinkSystem SR650

Hardware
Number of nodes:	1
Uses of the node:	compute
Vendor:	Lenovo Global Technology
Model:	SR650
CPU Name:	Intel Xeon Platinum 8280
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	56
Cores per chip:	28
Threads per core:	1
CPU Characteristics:	None
CPU MHz:	2700
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	38.5 MB I+D on chip per chip
Other Cache:	None
Memory:	768 GB (24 x 32 GB 2Rx4 PC4-2933Y-R)
Disk Subsystem:	1 x 1 TB 12 Gbps SAS 2.5" SSD (JBOD)
Other Hardware:	ThinkSystem RAID 530-8i
Adapter:	N/A
Number of Adapters:	0
Slot Type:	N/A
Data Rate:	N/A
Ports Used:	0
Interconnect Type:	None

Software
Adapter:	N/A
Adapter Driver:	N/A
Adapter Firmware:	N/A
Operating System:	Red Hat Enterprise Linux Server release 7.6, Kernel 3.10.0-957.el7.x86_64
Local File System:	xfs
Shared File System:	None
System State:	Multi-user, run level 3
Other Software:	None

Interconnect Description: N/A

Hardware
Vendor:	N/A
Model:	N/A
Switch Model:	N/A
Number of Switches:	0
Number of Ports:	0
Data Rate:	N/A
Firmware:	N/A
Topology:	N/A
Primary Use:	N/A

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec command was used to start MPI jobs.

 RAM configuration:
   Compute nodes have 2 x 32 GB RDIMM on each memory channel.

 BIOS settings:
   Operating Mode : Maximum Performance Mode
   Intel Hyper-Threading Technology (SMT): Disabled
   SNC (Sub-NUMA Cluster): Enable


 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
